- Supports 10th Generation Intel Core / Pentium Gold / Celeron Processors for LGA 1200 socket
- Supports dual channel DDR4 memory up to 128GB total (5000MHz)

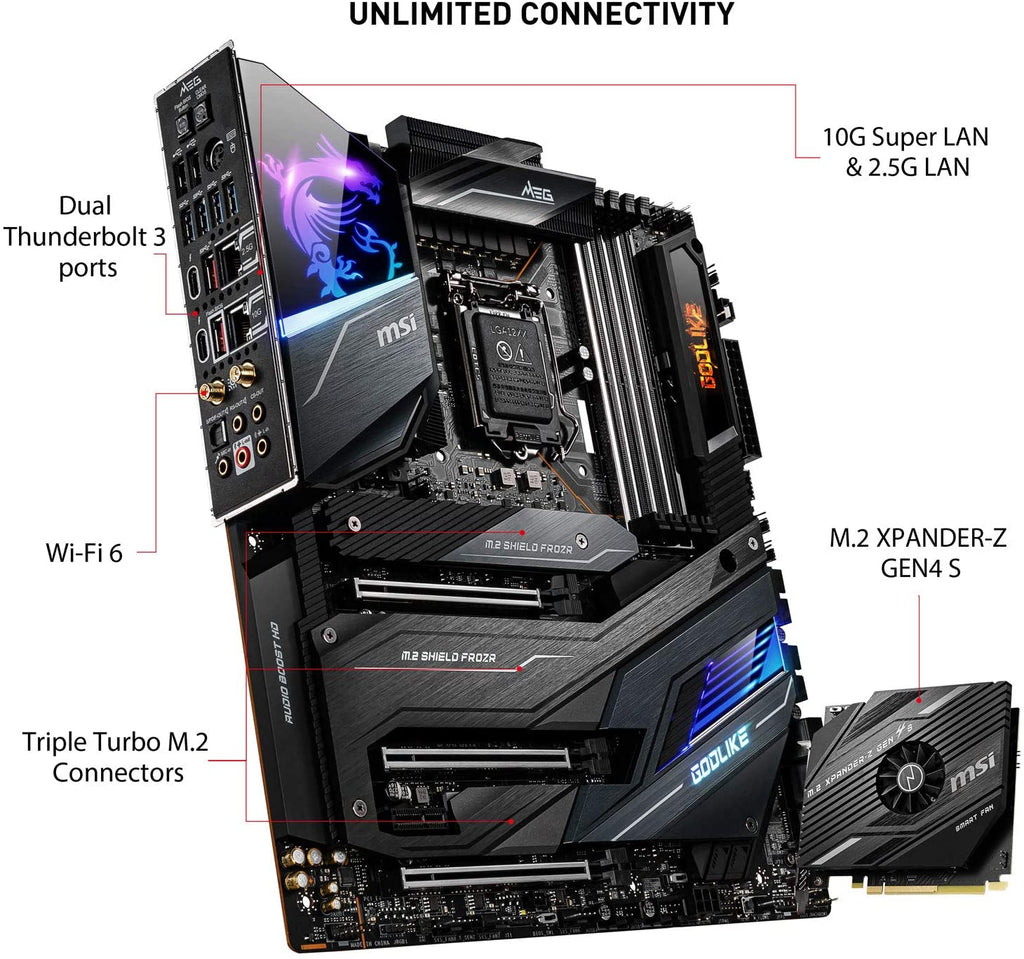

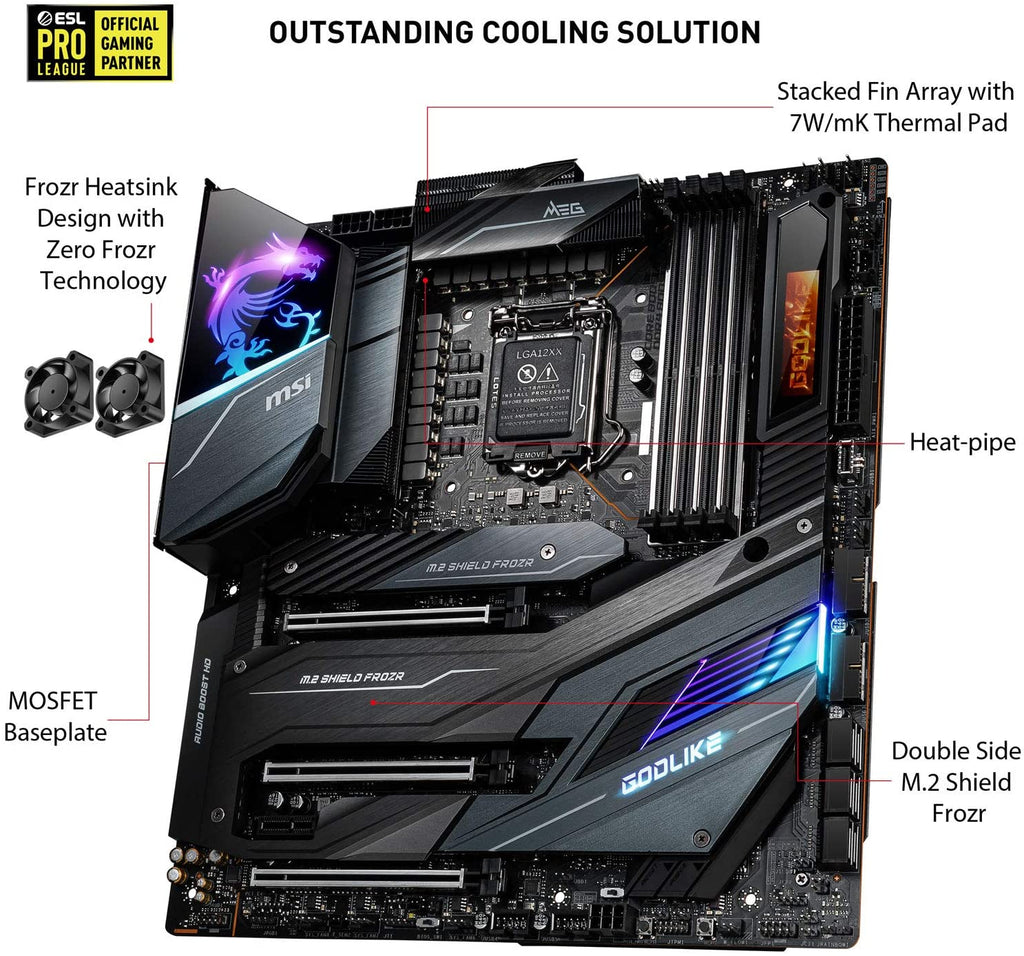

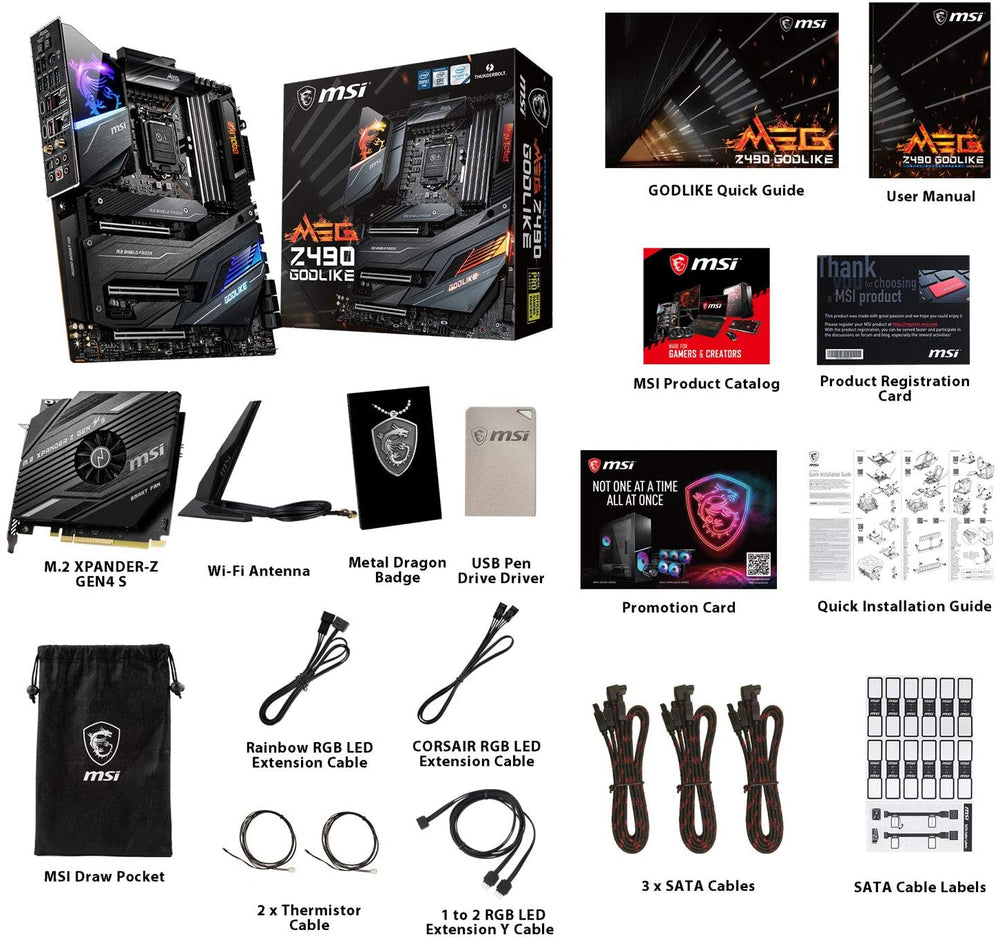

- Triple Turbo M.2 with double-side M.2 Shield Frozr - transfer speeds of up to 32 GB/s bandwidth, with M.2 XPANDER-Z GEN4 S accessory card adds two additional M.2 slots
- 2x Thunderbolt 3 ports on the rear panel provide up to 40GB/s transfer speed. Supports daisy chain configurations and 4K displays
- On-board 10G super LAN plus 2.5G LAN with Wi-Fi 6 (802.11ax)
| SOCKET 1200 |
| CPU (MAX SUPPORT) i9 |
| CHIPSET Intel Z490 Chipset |
| DDR4 MEMORY 5000(OC)/4800(OC)/4600(OC)/4533(OC)/4400(OC)/ 4300(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC) / 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC) MHz |
| MEMORY CHANNEL Dual |
| DIMM SLOTS 4 |
| MAX MEMORY (GB) 128 |
| PCI-E X16 3 |
| PCI-E X1 1 |
| SATAIII 6 |
| M.2 SLOT 3 |
| RAID 0/1/5/10 |
| TPM (HEADER) 1 |
| LAN 1x Aquantia AQC107 10G LAN controller 1x Realtek RTL8125B 2.5G LAN controller |
| USB 3.2 PORTS (FRONT) 1(Gen2, Type C), 4(Gen1, Type A) |

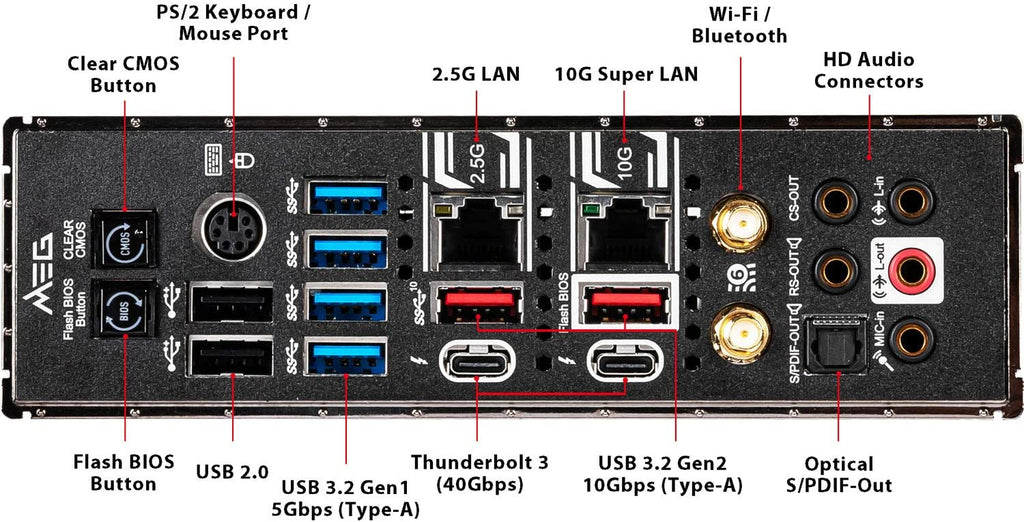

| USB 3.2 PORTS (REAR) 2(Gen2, Type C), 2(Gen2, Type A) ,4(Gen1, Type A) |
| USB 2.0 PORTS (FRONT) 4 |
| USB 2.0 PORTS (REAR) 2 |
| AUDIO PORTS (REAR) Realtek ALC1220 Codec + ESS SABRE9018Q2C combo DAC |
| DISPLAYPORT 1 |
| DIRECTX 12 |
| FORM FACTOR E-ATX |
| SLI Y |
| CROSSFIRE Y |
| OPERATING SYSTEM Support for Windows 10 64-bit |
| Item Dimension (L inchxW inchxH inch) 14 x 12 x 5 |
