Information:
Core/Memory
• Boost Clock / Game Clock* / Base Clock / Memory Speed
• Up to 1845 MHz / Up to 1733 MHz / 1647 MHz / 14Gbps
• 4GB GDDR6
• DisplayPort x 3 / HDMI x 1
• Boost Clock / Game Clock* / Base Clock / Memory Speed
• Up to 1845 MHz / Up to 1733 MHz / 1647 MHz / 14Gbps
• 4GB GDDR6
• DisplayPort x 3 / HDMI x 1
TORX Fan 3.0
• Dispersion fan blade: Steep curved blade accelerating the airflow
• Traditional fan blade: Provides steady airflow to massive heat sink below\
Afterburner Overclocking Utility
• Kombustor: The latest DirectX versions benchmark supporting.
• Predator: In-game video recording.
AMD Radeon FreeSync™
• Synchronizes the display refresh to your Radeon RX Series GPU for the fast, smooth gaming.
* 'Game Clock’ is the expected GPU clock when running typical gaming applications, set to typical TGP (Total Graphics Power). Actual individual game clock results may vary.
| Model Name Radeon RX 5500 XT MECH 4G OC |
| Graphics Processing Unit RadeonTM RX 5500 XT |
| Interface PCI Express 4.0 |
| Cores 1408 Units |
| Core Clocks Boost: Up to 1845 MHz Game: Up to 1733 MHz Base: 1647 MHz(Game Clock is the expected GPU clock when running typical gaming applications, set to typical TGP (Total Graphics Power). Actual individual game clock results may vary.) |
| Memory Speed 14Gbps |
| Memory 4GB GDDR6 |
| Memory Bus 128-bit |

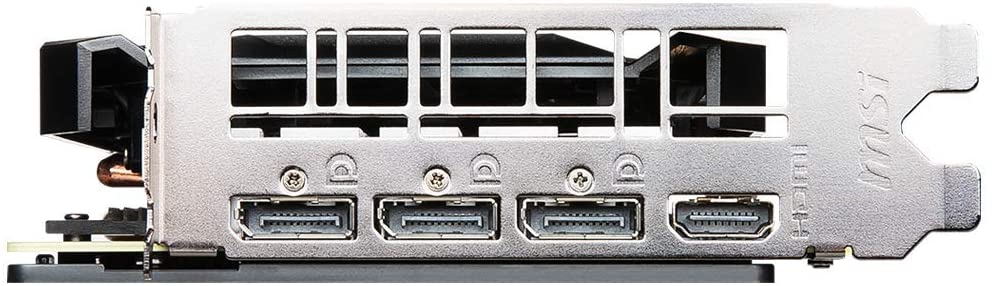

| Output DisplayPort x 3 (v1.4) / HDMI 2.0b x 1 |
| HDCP Support Y |
| Power consumption 130W (This data is not fixed, it may differ by core clocks.) |
| Power connectors 8-pin x 1 |
| Recommended PSU 450W |
| DirectX Version Support 12 |
| OpenGL Version Support 4.6 |
| Multi-GPU Technology Y |
| Maximum Displays 4 |
| VR Ready Y |
| Digital Maximum Resolution 7680x4320 |
