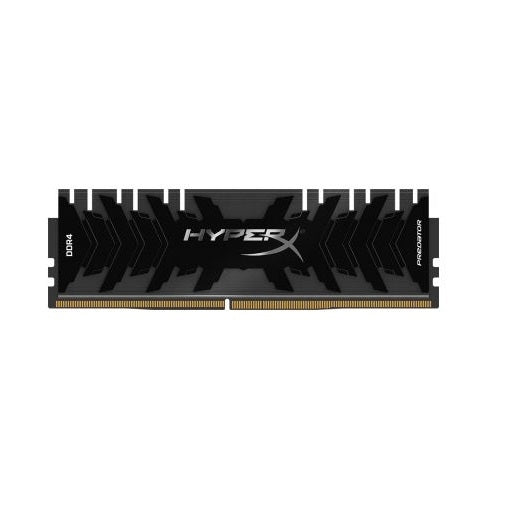

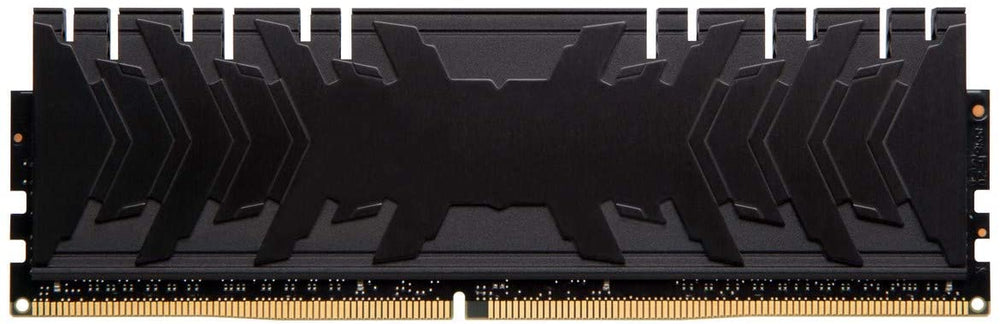

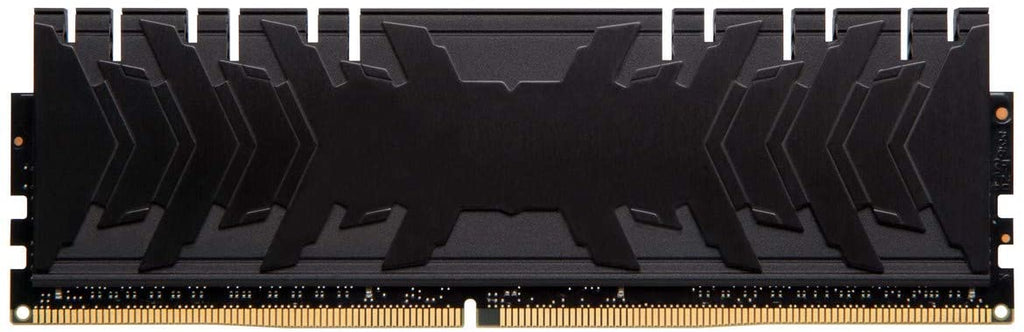

HyperX HX436C17PB4/8 is a 1G x 64-bit (8GB) DDR4-3600 CL17 SDRAM (Synchronous DRAM) 1Rx8, memory module, based on eight 1G x 8-bit FBGA components per module. Each module kit supports Intel® Extreme Memory Profiles (Intel® XMP) 2.0. Each module has been tested to run at DDR4-3600 at a low latency timing of 17-19-19 at 1.35V.
| CL(IDD) 17 cycles |
| Row Cycle Time (tRCmin) 45.75ns(min.) |
| Refresh to Active/Refresh Command Time (tRFCmin) 350ns(min.) |
| Row Active Time (tRASmin) 32ns(min.) |
| UL Rating 94 V - 0 |
| Operating Temperature 0oC to +85oC |
| Storage Temperature -55oC to +100oC |
| Item Dimension (L"xW"xH") 7 x 3 x 1 Weight 1.00 LB |
