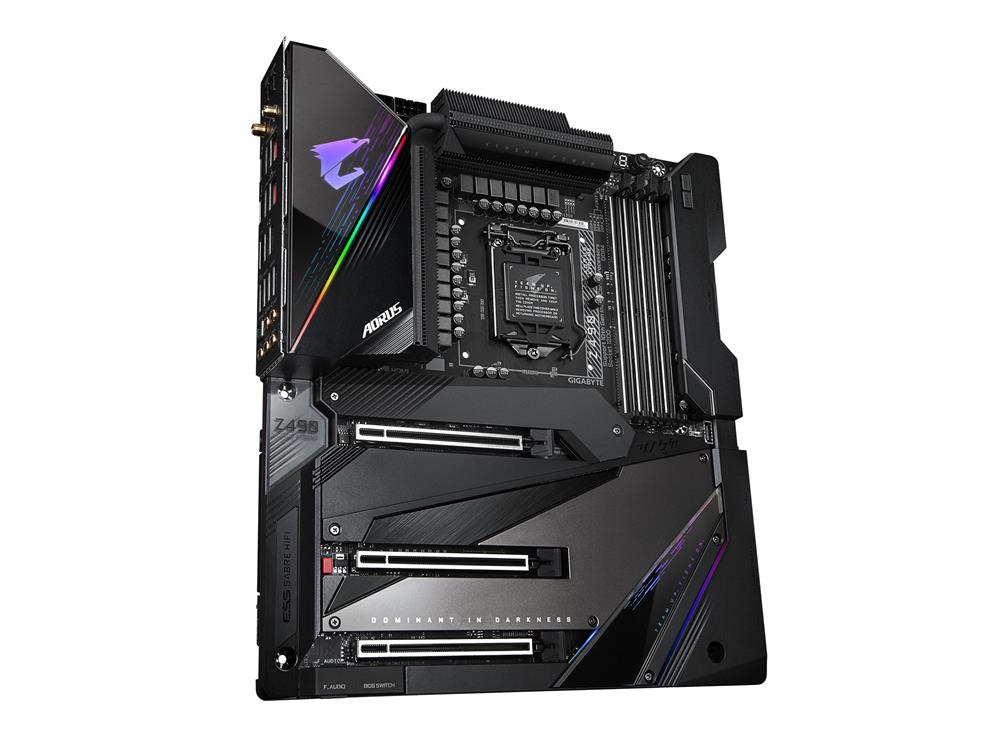

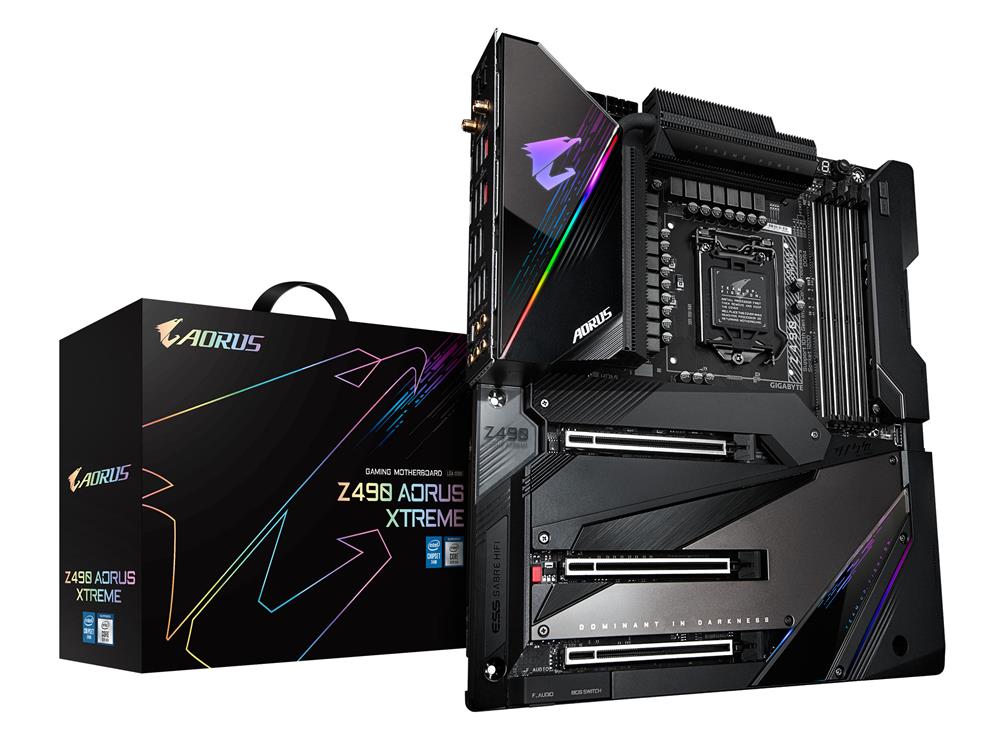

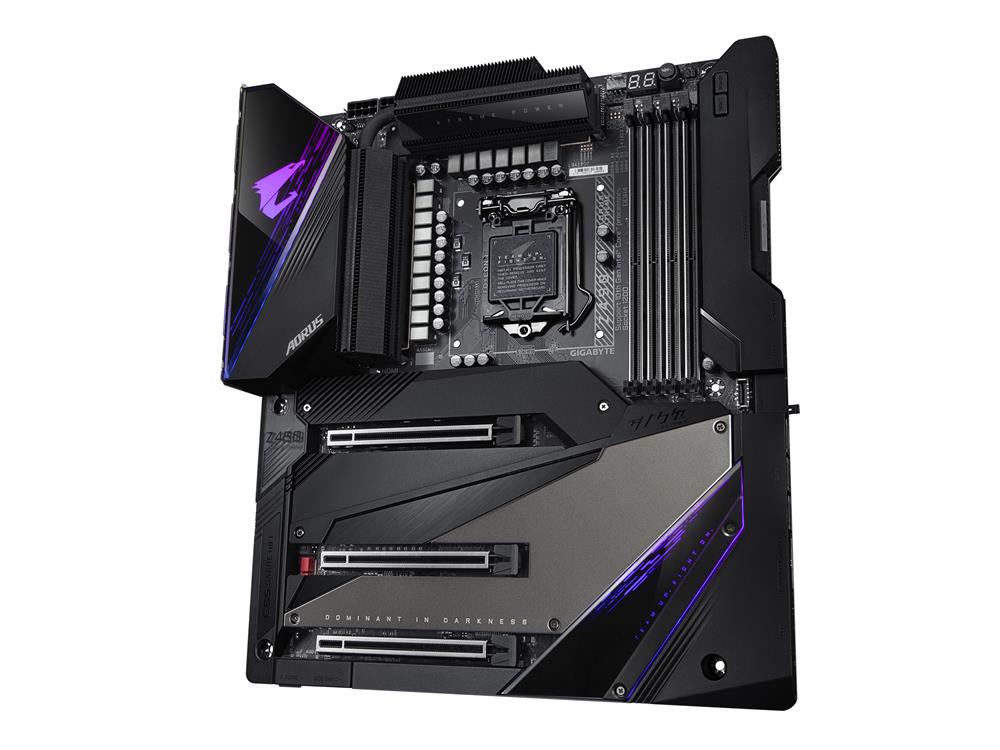

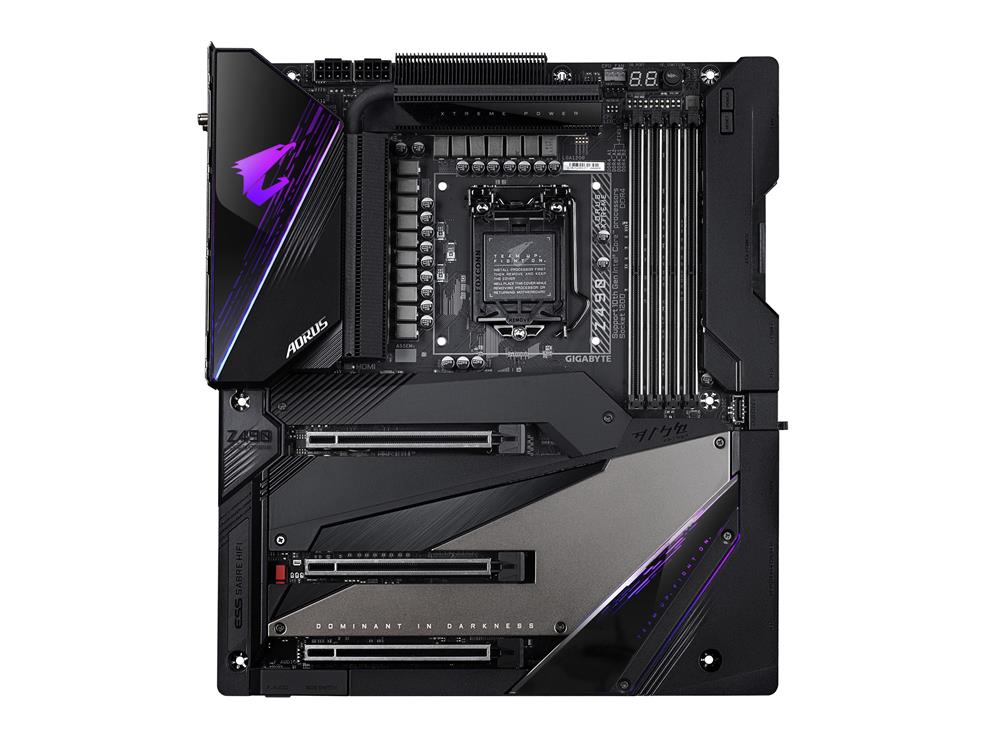

GIGABYTE Z490 AORUS XTREME 16 Phases Digital VRM, Fins-Array II Heatsink, NanoCarbon Baseplate, Thunderbolt 3, ESSential USB DAC, WiFi 6 802.11ax, AQUANTIA 10GbE LAN, 2.5GbE LAN, E-LGA 1200 10th Gen ATX RGB FUSION 2.0

$841.58
  • GIGABYTE Z490 AORUS XTREME 16 Phases Digital VRM, Fins-Array II Heatsink, NanoCarbon Baseplate, Thunderbolt 3, ESSential USB DAC, WiFi 6 802.11ax, AQUANTIA 10GbE LAN, 2.5GbE LAN, E-LGA 1200 10th Gen ATX RGB FUSION 2.0

RaidBox

GIGABYTE Z490 AORUS XTREME 16 Phases Digital VRM, Fins-Array II Heatsink, NanoCarbon Baseplate, Thunderbolt 3, ESSential USB DAC, WiFi 6 802.11ax, AQUANTIA 10GbE LAN, 2.5GbE LAN, E-LGA 1200 10th Gen ATX RGB FUSION 2.0

$841.58

• Supports 10th Gen Intel® Core™ Series Processors
• Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
• Intel® Optane™ Memory Ready
• 16+1 Phases Digital VRM Solution with 90A Smart Power Stage and Tantalum Polymer Capacitors Array
• XTREME MEMORY with SMT DIMM and Shielded Memory Routing
• Thermal Reactive Armor with Fins-Array II Heatsink, Direct Touch Heatpipe II and NanoCarbon Baseplate
• Intel® Thunderbolt™ 3 Onboard
• Exclusive ESSential USB DAC
• Onboard Intel® WiFi 6 802.11ax 2T2R & BT 5 with 2X AORUS Antenna
• 127dB SNR AMP-UP Audio with High-End ESS SABRE 9018K2M DAC, LME 49720 and OPA1622 OP-AMP, WIMA Audio Capacitors
• AQUANTIA® 10GbE BASE-T LAN and Intel® 2.5GbE LAN with cFosSpeed
• Triple Ultra-Fast NVMe PCIe 3.0 x4 M.2 with Thermal Guards II
• USB TurboCharger for Mobile Device Fast Charge Support
• RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Support Addressable LED & RGB LED Strips
• Smart Fan 5 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP and Noise Detection
• Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card

AORUS XTREME
Showcasing a state-of-the-art design, excellent functionality, an impressive thermal design, next generation network connectivity, a Hi-Fi level audio system, and AORUS aesthetics, the flagship Z490 AORUS XTREME motherboard dominates the competition.

CPU
Support for 10th Generation Intel CoreTM i9 processors/Intel CoreTM i7 processors/ Intel CoreTM i5 processors/Intel CoreTM i3 processors/Intel Pentium processors/ Intel Celeron processors in the LGA1200 package
L3 cache varies with CPU
Chipset
Intel Z490 Express Chipset
Memory
Intel CoreTM i9/i7 processors:
Support for DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2933 / 2800 / 2666 / 2400 / 2133 MHz
Intel CoreTM i5/i3/Pentium/Celeron processors:
Support for DDR4 2666/2400/2133 MHz
4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
Onboard Graphics
Integrated Graphics Processor+Intel ThunderboltTM 3 Controller:

2 x Intel ThunderboltTM 3 connectors (USB Type-CTM ports), supporting DisplayPort and ThunderboltTM video outputs and a maximum resolution of 5120 x 2880 at 60 Hz with 24 bpp
Note: Because of the limited I/O resources of the PC architecture, the number of ThunderboltTM devices that can be used is dependent on the number of the PCI Express devices being installed.
Note: Support for DisplayPort 1.4 version, HDCP 2.3, and HDR.

Integrated Graphics Processor-Intel HD Graphics support:

1 x HDMI port, supporting a maximum resolution of 4096x2160 at 30 Hz
Note: Support for HDMI 1.4 version and HDCP 2.3.

Maximum shared memory of 512 MB
Audio
Realtek ALC1220-VB codec+ESS ES9218P DAC (front panel audio)
Realtek ALC1220-VB codec+ESS ES9018K2M DAC+TI OPA1622 operational amplifier (rear panel audio)
Support for DTS:X Ultra
High Definition Audio
2/4/5.1/7.1-channel
Support for S/PDIF Out
LAN
1 x Aquantia 10GbE LAN chip (10 Gbit/5 Gbit/2.5 Gbit/1 Gbit/100 Mbit) (LAN1)
1 x Intel 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit) (LAN2)
Wireless Communication module
Intel Wi-Fi 6 AX201

WIFI a, b, g, n, ac with wave 2 features, ax, supporting 2.4/5 GHz Dual-Band
BLUETOOTH 5.1
Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
Note: Actual data rate may vary depending on environment and equipment.
Expansion Slots
1 x PCI Express x16 slot, running at x16 (PCIEX16)
Note: For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
1 x PCI Express x16 slot, running at x8 (PCIEX8)
Note: The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot operates at up to x8 mode.
1 x PCI Express x16 slot, running at x4 (PCIEX4)
Note: The PCIEX4 slot shares bandwidth with the M2P_PCH connector. The PCIEX4 slot operates at up to x2 mode when an M.2 SSD is installed in the M2P_PCH connector.

(All of the PCI Express x16 slots conform to PCI Express 3.0 standard.)
Supports up to ASPM L1.2 power management protocols.
Multi-Graphics Technology
Support for NVIDIA Quad-GPU SLITM and 2-Way NVIDIA SLITM technologies
Support for AMD Quad-GPU CrossFireTM and 2-Way AMD CrossFireTM technologies
Storage Interface
1 x M.2 connector (Socket 3, M key, type 2242/2280/22110 SATA and PCIe x4/x2 SSD support)(M2A_CPU)
1 x M.2 connector (Socket 3, M key, type 2242/2280/22110 SATA and PCIe x4/x2 SSD support)(M2M_PCH)
1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 PCIe x4/x2 SSD support) (M2P_PCH)
6 x SATA 6Gb/s connectors
Support for RAID 0, RAID 1, RAID 5, and RAID 10

Intel OptaneTM Memory Ready
M.2 connectors support up to ASPM L1.2 PCIe power management protocols.
USB
Chipset+Intel ThunderboltTM 3 Controller:

2 x USB Type-CTM ports on the back panel, with USB 3.2 Gen 2 support

Chipset:

1 x USB Type-CTM port with USB 3.2 Gen 2 support, available through the internal USB header
4 x USB 3.2 Gen 2 Type-A ports (red) on the back panel

Chipset+USB 3.2 Gen 1 Hub:

4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)

Chipset+2 USB 2.0 Hubs:

6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers with the included front USB header extension cable)
Internal I/O Connectors
1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
1 x CPU fan header
1 x water cooling CPU fan header
4 x system fan headers
2 x system fan/water cooling pump headers
2 x addressable LED strip headers
2 x RGB LED strip headers
6 x SATA 6Gb/s connectors
3 x M.2 Socket 3 connectors
1 x noise detection header
1 x front panel header
1 x front panel audio header
1 x USB Type-CTM header, with USB 3.2 Gen 2 support
1 x USB 3.2 Gen 1 header
1 x USB 2.0/1.1 header
2 x temperature sensor headers
1 x power button
1 x reset button
1 x OC button
2 x BIOS switches
Voltage Measurement Points

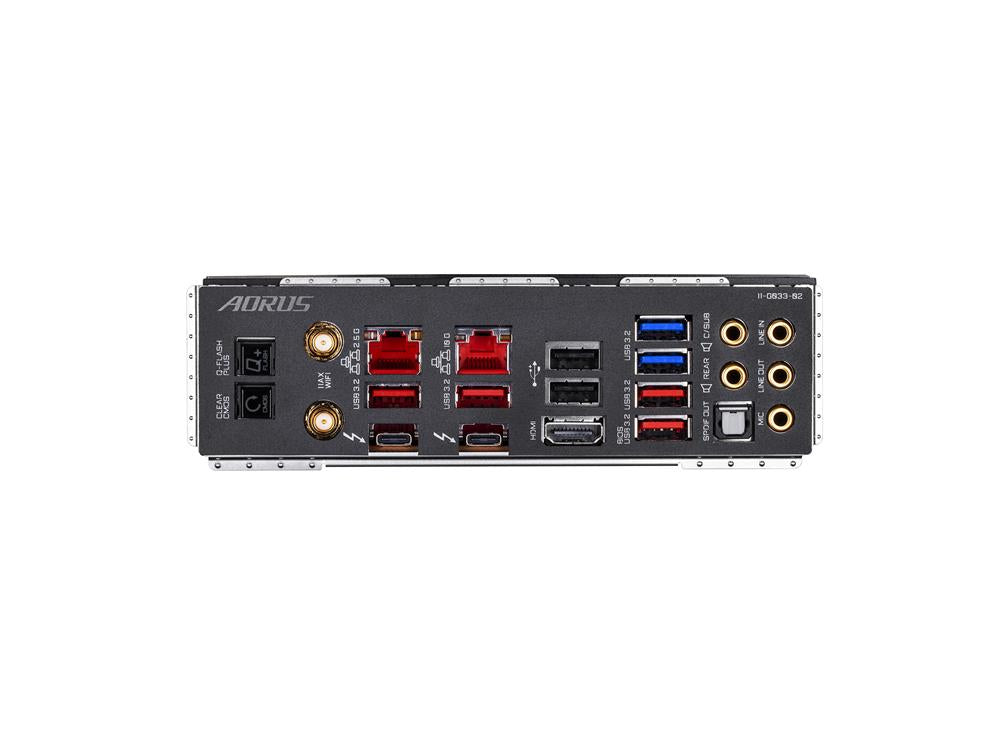

Back Panel Connectors
1 x Q-Flash Plus button
1 x Clear CMOS button
2 x SMA antenna connectors (2T2R)
2 x ThunderboltTM 3 connectors (USB Type-CTM ports, with USB 3.2 Gen 2 support)
4 x USB 3.2 Gen 2 Type-A ports (red)
2 x USB 3.2 Gen 1 ports
2 x USB 2.0/1.1 ports
1 x HDMI port
2 x RJ-45 ports
1 x optical S/PDIF Out connector
5 x audio jacks
I/O Controller
iTE I/O Controller Chip
H/W Monitoring
Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Overheating warning
Fan fail warning
Fan speed control
Note: Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
Noise detection
BIOS
2 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
Support for DualBIOSTM
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
Support for APP Center
Note: Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
At BIOS
EasyTune
Fast Boot
Game Boost
RGB Fusion
Smart Backup
System Information Viewer
USB TurboCharger
Support for Q-Flash Plus
Support for Q-Flash
Support for Xpress Install
Bundled Software
Norton Internet Security (OEM version)
cFosSpeed
XSplit Gamecaster + Broadcaster (12 months license)
Operating System
Support for Windows 10 64-bit
Form Factor
E-ATX Form Factor, 30.5cm x 27.1cm
Item Dimension (L inchxW inchxH inch)
15 x 13 x 6
