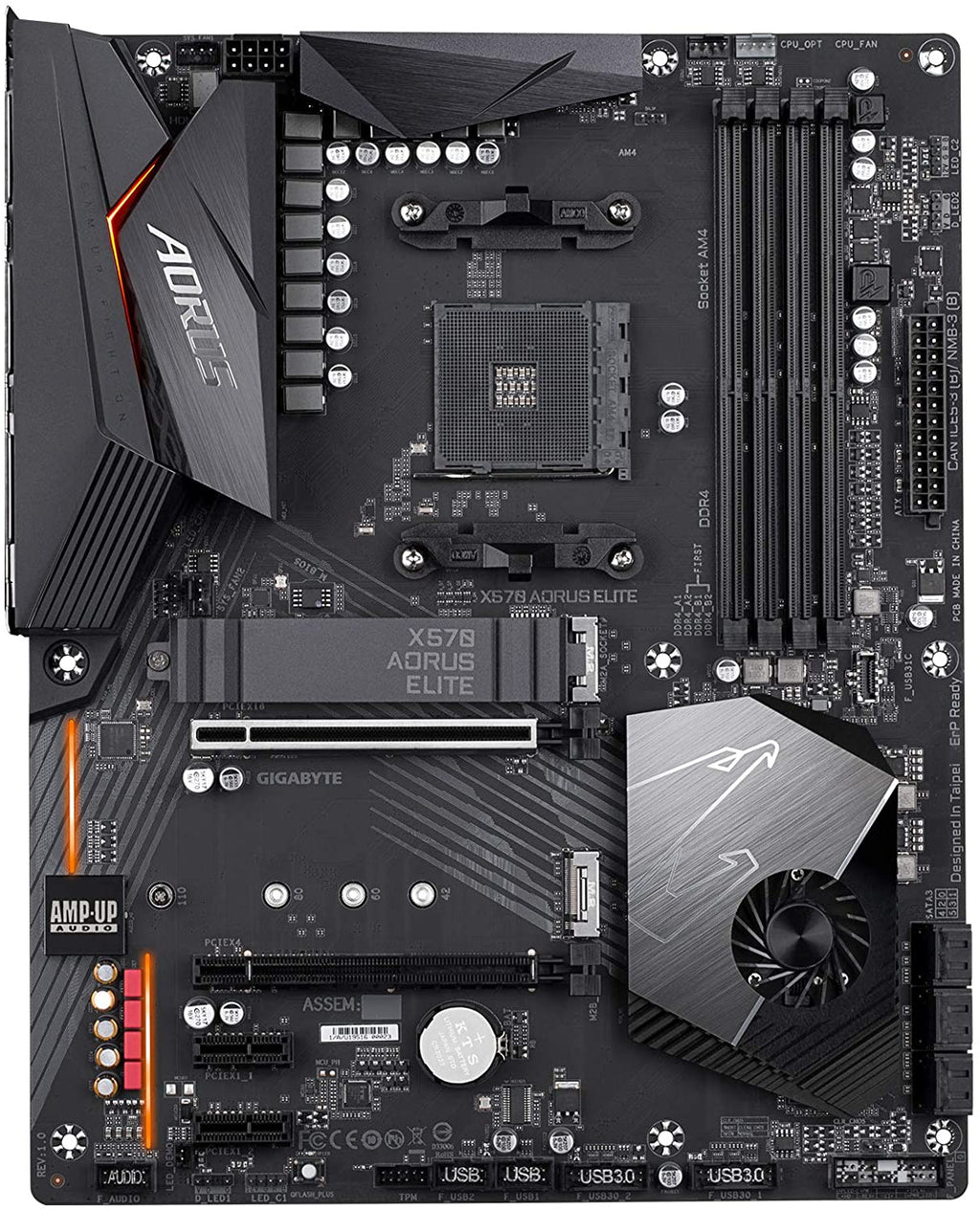

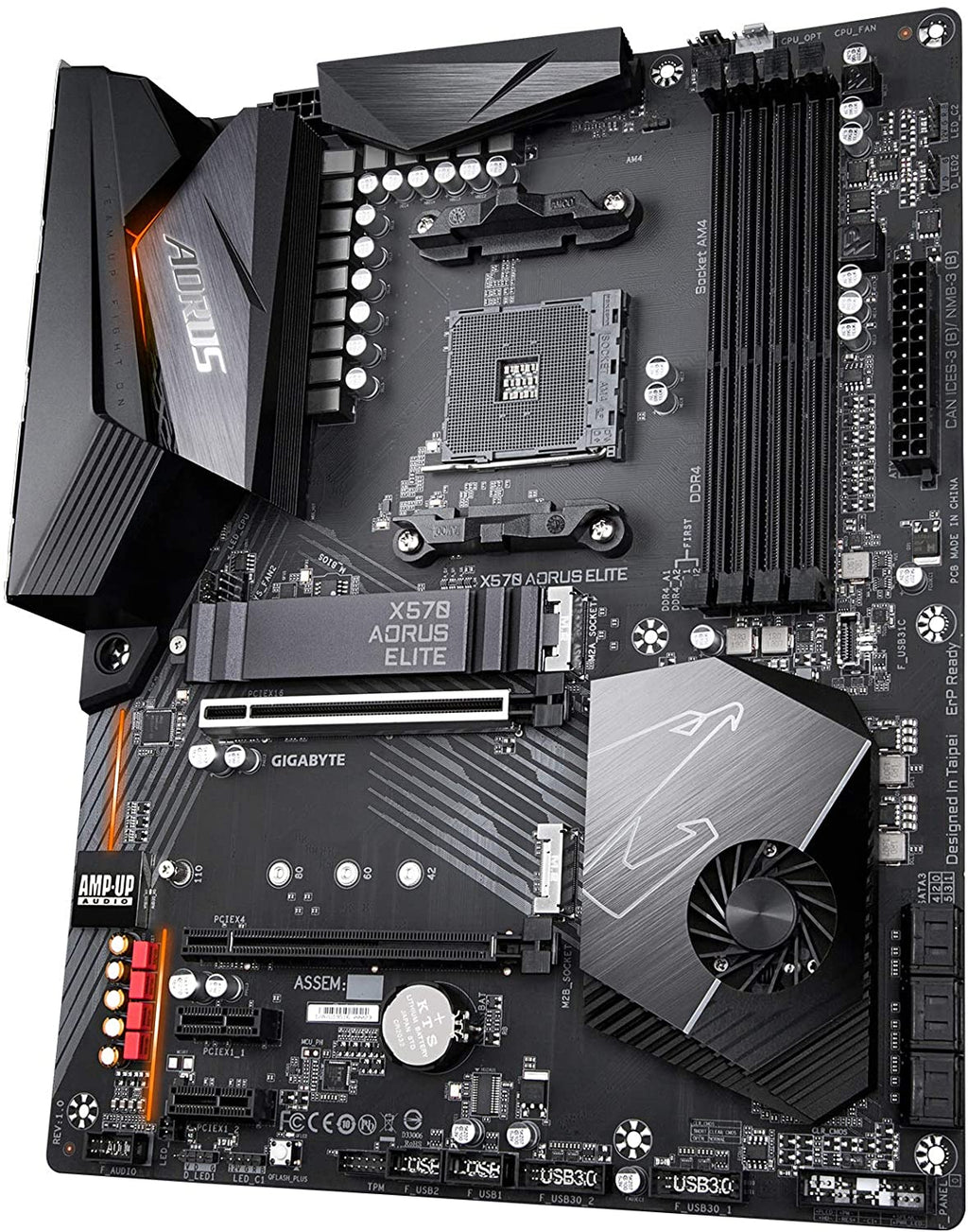

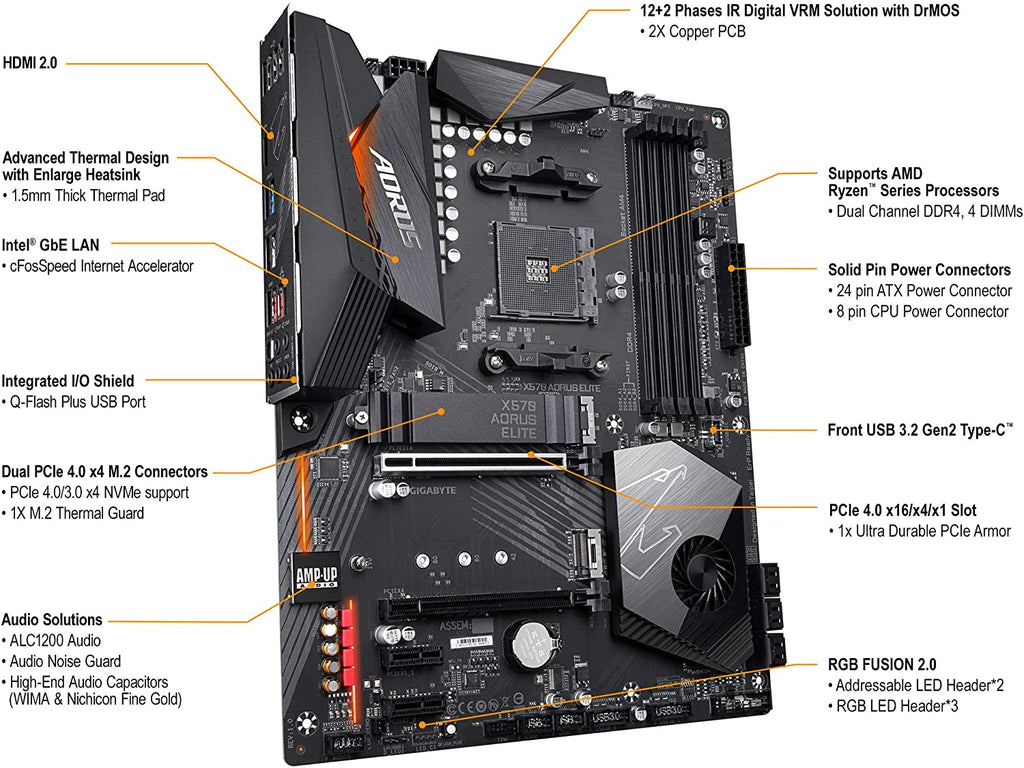

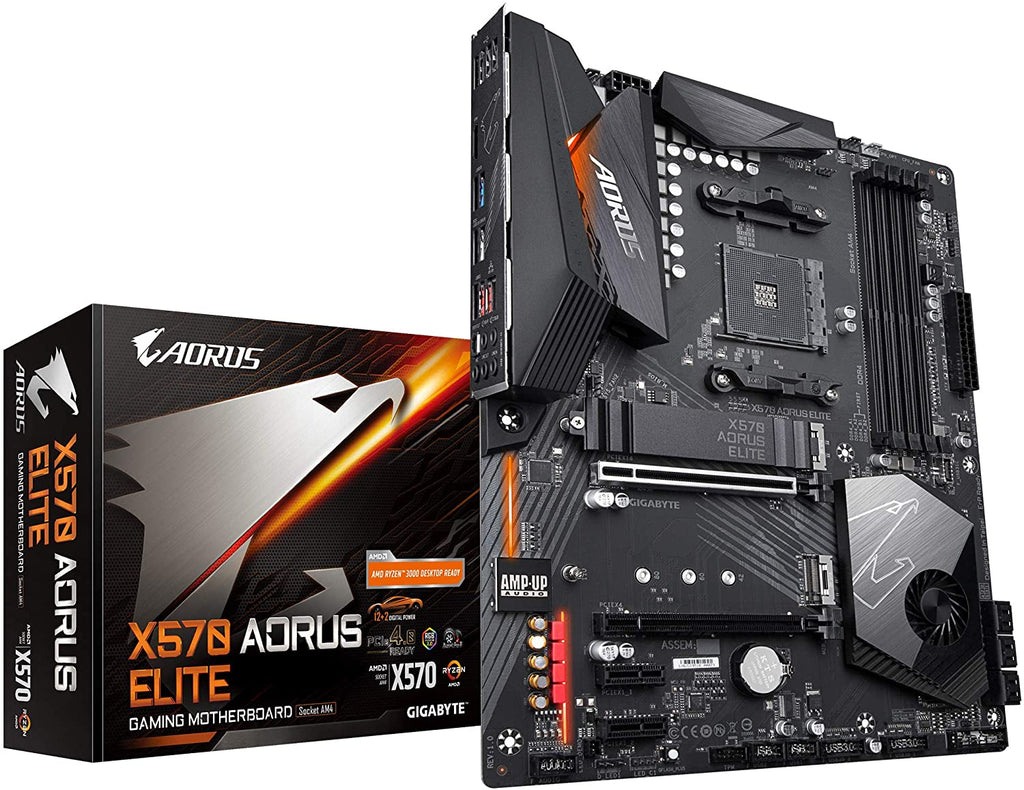

AMD X570 AORUS Motherboard with 12+2 Phases Digital VRM with DrMOS, Advanced Thermal Design with Enlarge Heatsink, Dual PCIe 4.0 M.2 with Single Thermal Guard, Intel® GbE LAN with cFosSpeed, Front USB Type-C, RGB Fusion 2.0
Supports AMD 3rd Gen Ryzen™/ 2nd Gen Ryzen™/ 2nd Gen Ryzen™ with Radeon™ Vega Graphics/ Ryzen™ with Radeon™ Vega Graphics Processors
Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
12+2 Phases Digital VRM Solution with DrMOS
Advanced Heatsink Design with Enlarge Heatsink
Dual Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 with Single Thermal Guard
High Quality Audio Capacitors and Audio Noise Guard with LED Trace Path Lighting
Intel® Gigabit LAN with cFosSpeed Internet Accelerator
RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Supports Addressable LED & RGB LED Strips
Smart Fan 5 features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
Front USB 3.1 Gen2 Type-C™ Header & HDMI 2.0 support
Integrated I/O Shield Armor
Q-Flash Plus update BIOS Without Installing CPU, Memory and Graphics card
CPU 1.AMD Socket AM4, support for: 3rd Generation AMD Ryzen processors/ 2nd Generation AMD Ryzen processors/ 2nd Generation AMD Ryzen with Radeon Vega Graphics processors/ AMD Ryzen with Radeon Vega Graphics processors (Please refer "CPU Support List" for more information.) |
Chipset 1.AMD X570 |
Memory 1.3rd Generation AMD Ryzen processors: Support for DDR4 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules 2.2nd Generation AMD Ryzen processors/AMD Ryzen with Radeon Vega Graphics processors: Support for DDR4 3200(O.C.) / 2933 / 2667 / 2400 / 2133 MHz memory modules 3.4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory 4.Dual channel memory architecture 5.Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules ECC mode supported by 3rd Gen AMD Ryzen/ 2nd Gen AMD Ryzen and only PRO sku of 2nd Gen AMD Ryzen with Radeon Vega Graphics processors/ AMD Ryzen with Radeon Vega Graphics processors. 6.Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules 7.Support for Extreme Memory Profile (XMP) memory modules (Please refer "Memory Support List" for more information.) |
Onboard Graphics Integrated Graphics Processor: 1.1 x HDMI port, supporting a maximum resolution of 4096x2160 at 60 Hz Support for HDMI 2.0 version, HDCP 2.2, and HDR. Maximum shared memory of 16 GB Note: For 2nd Generation AMD Ryzen with Radeon Vega Graphics processors/AMD Ryzen with Radeon Vega Graphics processors only. |
Audio 1.Realtek ALC1200 codec 2.High Definition Audio 3.2/4/5.1/7.1-channel 4.Support for S/PDIF Out |
LAN 1.Intel GbE LAN chip (10/100/1000 Mbit) |
Expansion Slots Integrated in the CPU (PCIEX16): 3rd Generation AMD Ryzen processors: 1.1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 2nd Generation AMD Ryzen processors: 1.1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16 For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. 2nd Generation AMD Ryzen with Radeon Vega Graphics processors/AMD Ryzen with Radeon Vega Graphics processors: 1.1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x8 Integrated in the Chipset (PCIEX4/PCIEX1): 1.1 x PCI Express x16 slot, supporting PCIe 4.0/3.0 and running at x4 (PCIEX4) For 3rd Generation AMD Ryzen processors only. 2.2 x PCI Express x1 slots, supporting PCIe 4.0/3.0 For 3rd Generation AMD Ryzen processors only. |
Multi-Graphics Technology 1.Support for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire technologies Note: For 3rd Generation AMD Ryzen processors/2nd Generation AMD Ryzen processors only. |
Storage Interface Integrated in the CPU (M2A_SOCKET): 3rd Generation AMD Ryzen processors: 1.1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 4.0 x4/x2 SSD support) 2nd Generation AMD Ryzen processors/2nd Generation AMD Ryzen with Radeon Vega Graphics processors/AMD Ryzen with Radeon Vega Graphics processors: 1.1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) Integrated in the Chipset (M2B_SOCKET): 1.1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 4.0/3.0 x4/x2 SSD support) For 3rd Generation AMD Ryzen processors only. 2.6 x SATA 6Gb/s connectors 3.Support for RAID 0, RAID 1, and RAID 10 |
USB Integrated in the CPU: 1.4 x USB 3.2 Gen 1 ports on the back panel Chipset: 1.1 x USB Type-C port with USB 3.2 Gen 2 support, available through the internal USB header 2.2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel 3.4 x USB 3.2 Gen 1 ports available through the internal USB headers Chipset+2 USB 2.0 Hubs: 1.8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) |
Internal I/O Connectors 1.1 x 24-pin ATX main power connector 2.1 x 8-pin ATX 12V power connector 3.1 x CPU fan header 4.1 x water cooling CPU fan header 5.2 x system fan headers 6.2 x addressable LED strip headers 7.2 x RGB LED strip headers 8.1 x CPU cooler LED strip/RGB LED strip header 9.2 x M.2 Socket 3 connectors 10.6 x SATA 6Gb/s connectors 11.1 x front panel header 12.1 x front panel audio header 13.1 x USB Type-C port, with USB 3.2 Gen 2 support 14.2 x USB 3.2 Gen 1 headers 15.2 x USB 2.0/1.1 headers 16.1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) 17.1 x Clear CMOS jumper 18.1 x Q-Flash Plus button |

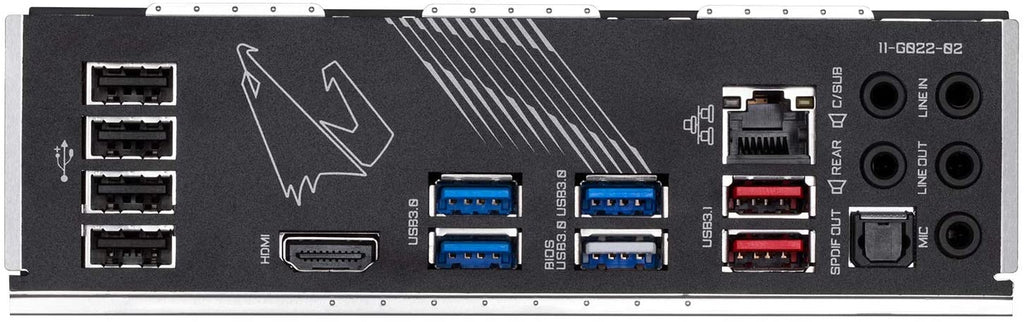

Back Panel Connectors 1.4 x USB 2.0/1.1 ports 2.1 x HDMI port 3.4 x USB 3.2 Gen 1 ports 4.2 x USB 3.2 Gen 2 Type-A ports (red) 5.1 x RJ-45 port 6.1 x optical S/PDIF Out connector 7.5 x audio jacks |
I/O Controller 1.iTE I/O Controller Chip |
H/W Monitoring 1.Voltage detection 2.Temperature detection 3.Fan speed detection 4.Water cooling flow rate detection 5.Overheating warning 6.Fan fail warning 7.Fan speed control Whether the fan speed control function is supported will depend on the fan you install. |
BIOS 1.1 x 128 Mbit flash 2.Use of licensed AMI UEFI BIOS 3.PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
Unique Features 1.Support for APP Center Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. At BIOS AutoGreen Cloud Station EasyTune Fast Boot Game Boost ON/OFF Charge RGB Fusion Smart Backup Smart Keyboard Smart Survey System Information Viewer USB Blocker 2.Support for Q-Flash Plus 3.Support for Q-Flash 4.Support for Xpress Install |
Bundled Software 1.Norton Internet Security (OEM version) 2.cFosSpeed |
Operating System 1.Support for Windows 10 64-bit |
Form Factor 1.ATX Form Factor 30.5cm x 24.4cm |
Remark 1.Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors website or 3rd party website. 2.Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website. |
Item Dimension (L"xW"xH") 14 x 11 x 4 Weight 5 lbs |
