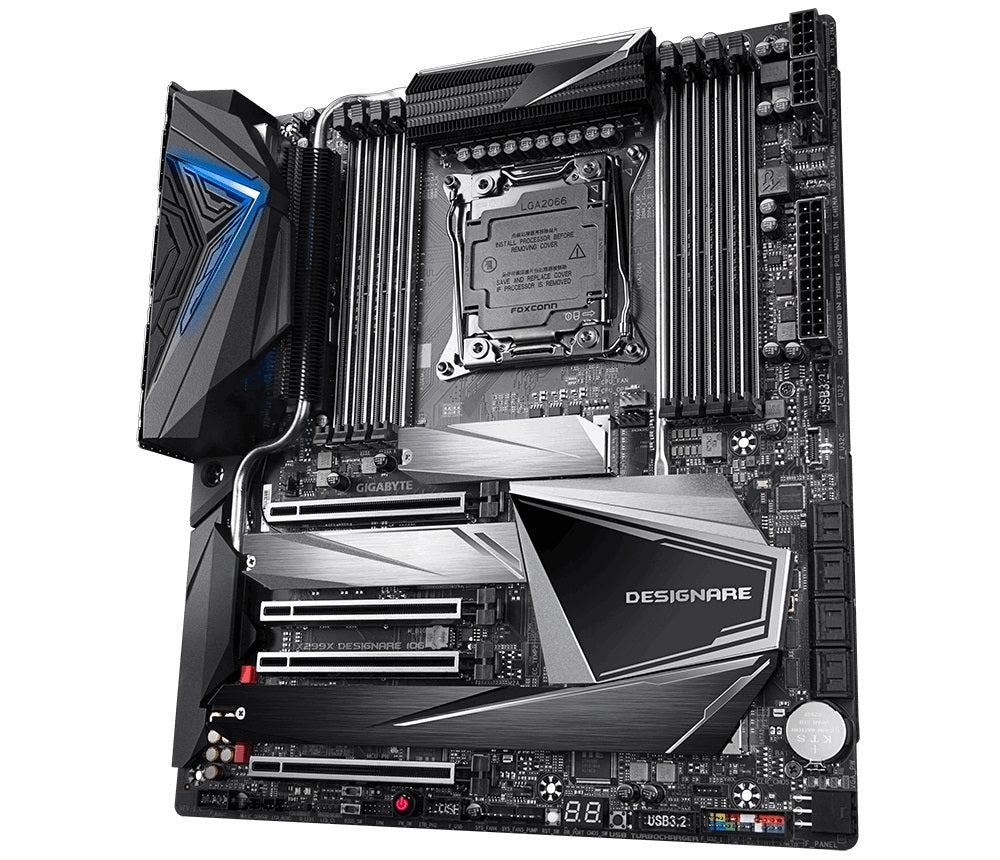

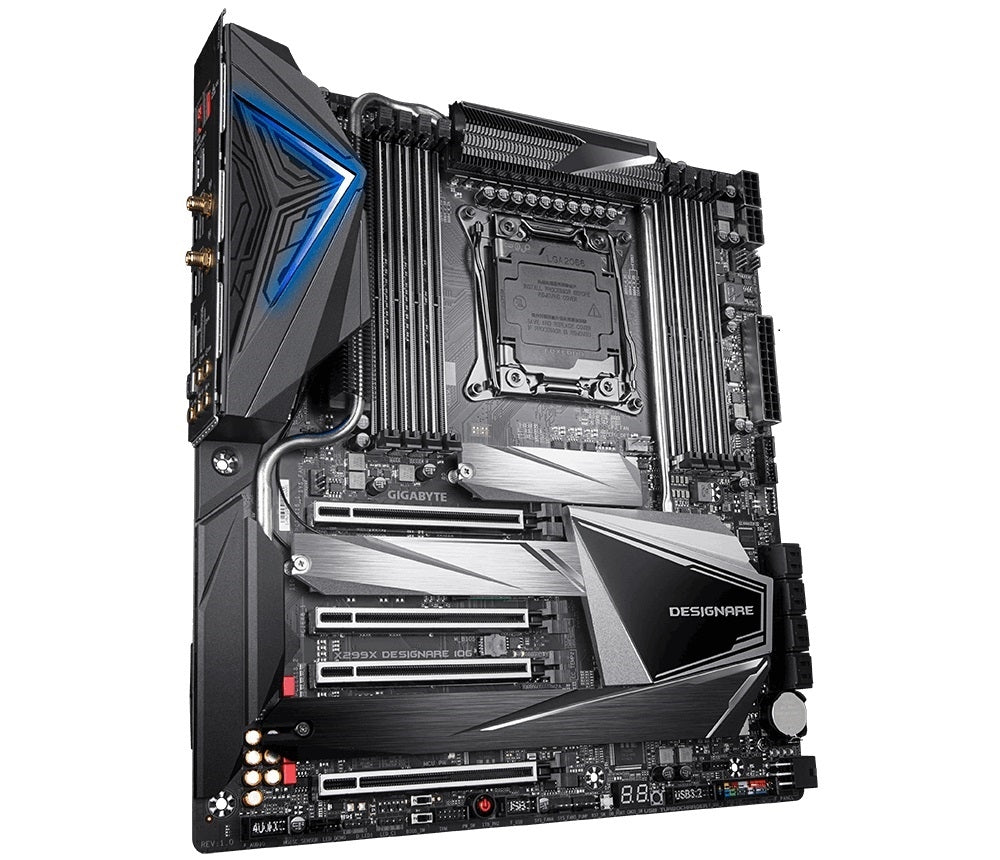

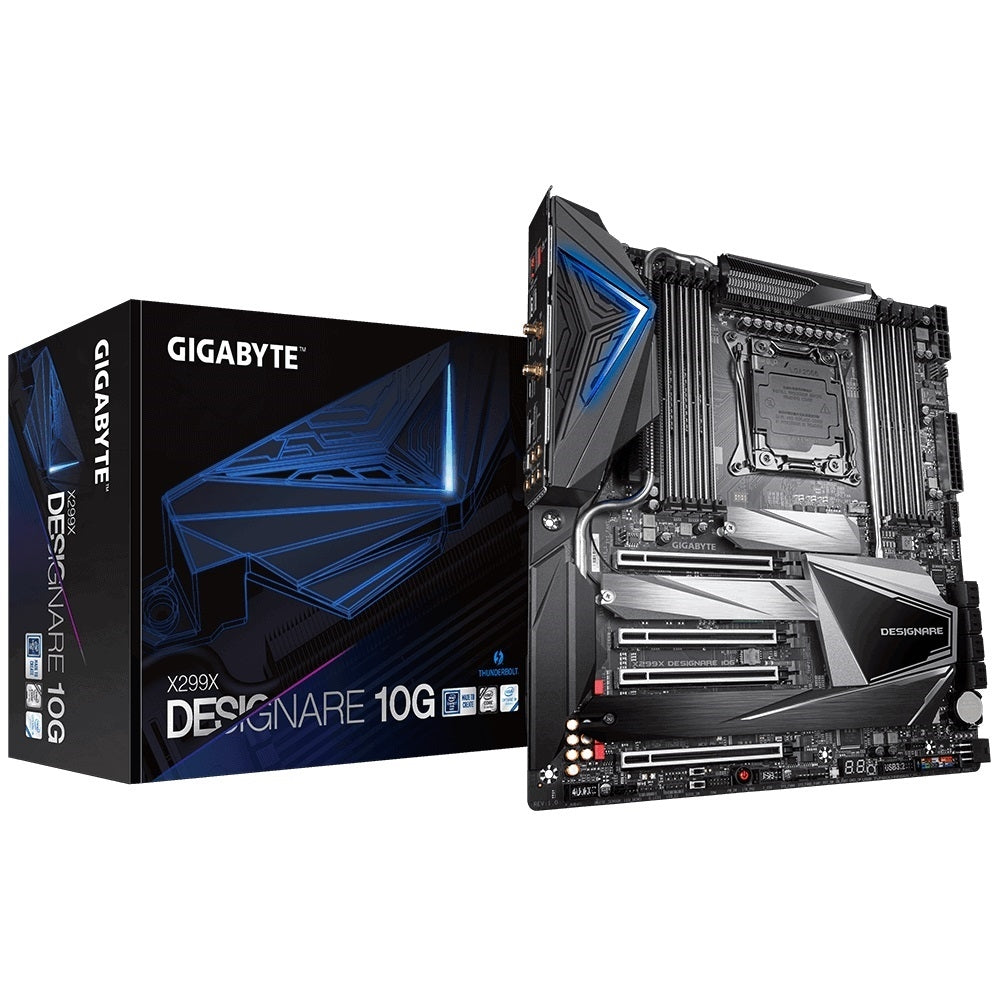

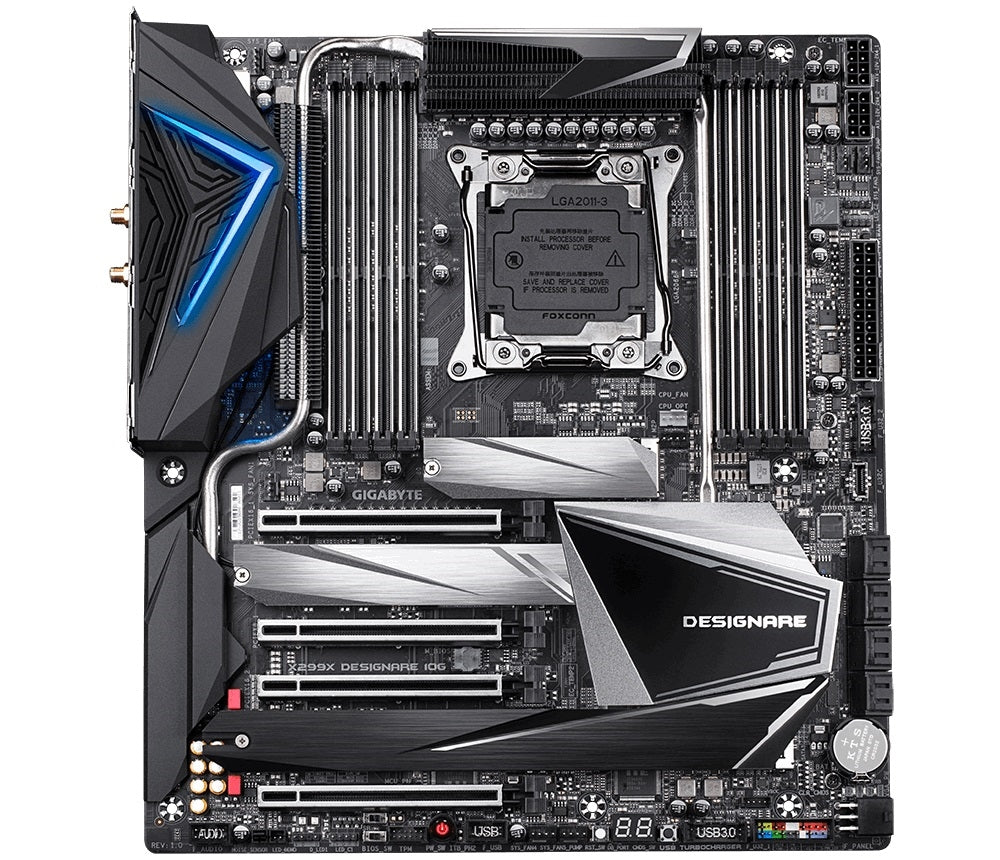

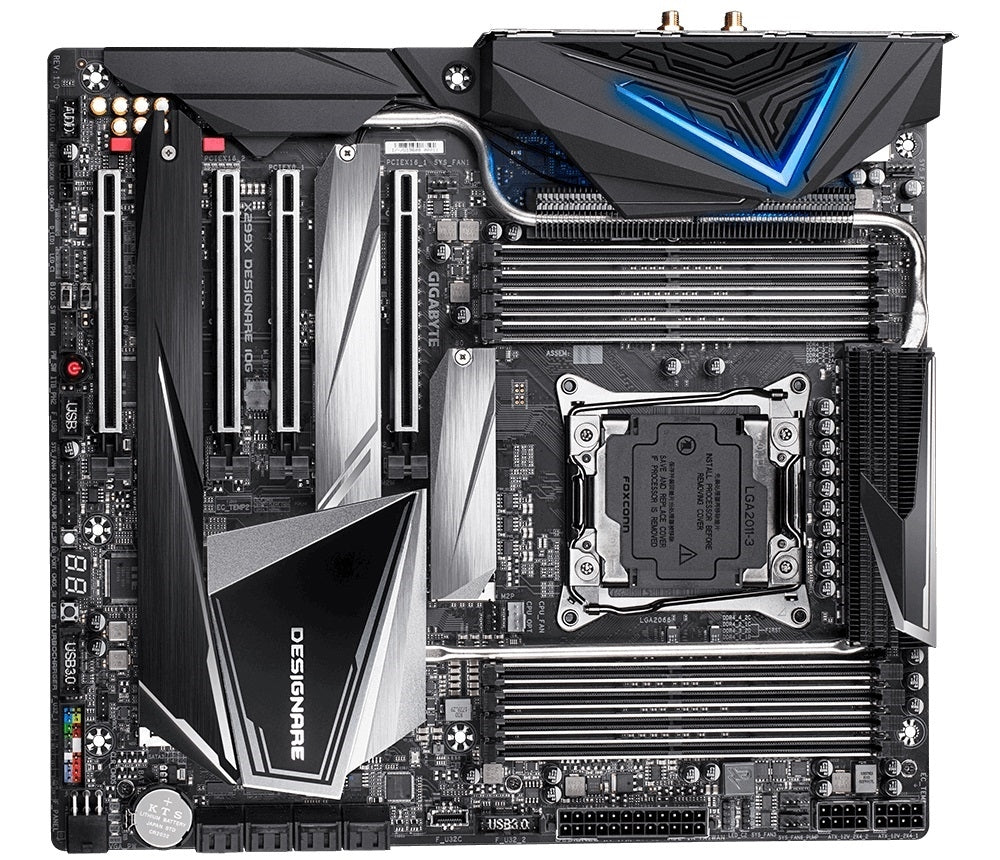

GIGABYTE X299X DESIGNARE 10G Socket 2066 Chipset - DDR4 4333(O.C.), PCI-E 3.0, SATA 6.0Gb/s, 3x M.2 - USB 3.2, E-ATX Motherboard, RGB FUSION, Onboard Wi-FI, Bluetooth

$600.91
  • GIGABYTE X299X DESIGNARE 10G Socket 2066 Chipset - DDR4 4333(O.C.), PCI-E 3.0, SATA 6.0Gb/s, 3x M.2 - USB 3.2, E-ATX Motherboard, RGB FUSION, Onboard Wi-FI, Bluetooth

RaidBox

GIGABYTE X299X DESIGNARE 10G Socket 2066 Chipset - DDR4 4333(O.C.), PCI-E 3.0, SATA 6.0Gb/s, 3x M.2 - USB 3.2, E-ATX Motherboard, RGB FUSION, Onboard Wi-FI, Bluetooth

$600.91

Intel® X299 Made To Create Motherboard with 12 Phases IR Digital VRM, Intel® Thunderbolt 3, Intel® X550-AT2 Dual 10GbE, Intel® WiFi 6 AX200 802.11ax, ALC1220-VB HD Audio with WIMA, AORUS Gen4 AIC Adaptor
•Supports Intel® Core™ X-series Processor Family
•Quad Channel Non-ECC Unbuffered DDR4, 8 DIMMs
•12 Phases IR Digital VRM Solution with 70A Power Stage
•Advanced Fins-Array Thermal Design with Extended Heatpipes and Back Plate
•Intel® Thunderbolt™ 3 - The USB-C that Does it All
•Server-class Intel® X550-AT2 Dual 10GbE with cFosSpeed
•Onboard Intel® WiFi 6 AX200 802.11ax 2T2R & BT5 with 2X AORUS Antenna
•ALC1220-VB Enhance 114dB(Rear) / 110dB(Front) SNR in Microphone with WIMA Audio Capacitor
•Exclusive AORUS Gen4 AIC Adaptor for Extra 4*PCIe 3.0 x4 NVMe M.2 Sockets
•USB TurboCharger for Mobile Device Fast Charge Support
•RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show design, support Addressable LED & RGB LED strips
•Smart Fan 5 features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP and Noise Detection
•Q-Flash Plus Update BIOS without Installing CPU, Memory and Graphics Card
•Intel® Optane™ Memory Ready

CPU
1.Support for Intel Core i7-7800X and above X series processors/ Intel Core i9 X series processors in the LGA2066 package
2.L3 cache varies with CPU
(Please refer "CPU Support List" for more information.)
Chipset
1.Intel X299 Express Chipset
Memory
1.Intel Core X series 48-lane processors:
8 x DDR4 DIMM sockets supporting up to 256 GB (32 GB single DIMM capacity) of system memory
Support for DDR4 4333(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2933/2666/2400/2133 MHz memory modules
2.Intel Core X series 44-lane/28-lane processors:
8 x DDR4 DIMM sockets supporting up to 128 GB (16 GB single DIMM capacity) of system memory
Support for DDR4 4200(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2666/2400/2133 MHz memory modules
3.4 channel memory architecture
4.Support for non-ECC Un-buffered DIMM memory modules
5.Support for Extreme Memory Profile (XMP) memory modules
(Please refer "Memory Support List" for more information.)
Onboard Graphics
Intel Thunderbolt 3 Controller:
1.2 x Intel Thunderbolt 3 connectors (USB Type-C ports), supporting DisplayPort and Thunderbolt video outputs and a maximum resolution of 4096x2304 at 60 Hz
Because of the limited I/O resources of the PC architecture, the number of Thunderbolt devices that can be used is dependent on the number of the PCI Express devices being installed. (Refer to Chapter 1-7, "Back Panel Connectors," for more information.)
Support for DisplayPort 1.2 version.
Maximum shared memory of 1 GB
Audio
1.Realtek ALC1220-VB codec
The back panel line out jack supports DSD audio.
2.High Definition Audio
3.2/4/5.1/7.1-channel
4.Support for S/PDIF Out
LAN
1.Intel 10GbE LAN chip (10 Gbit/5 Gbit/2.5 Gbit/1 Gbit/100 Mbit), supporting 2 RJ-45 ports
Wireless Communication module
1.Wi-Fi 802.11a/b/g/n/ac/ax, supporting 2.4/5 GHz Dual-Band
2.BLUETOOTH 5.0
3.Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
Actual data rate may vary depending on environment and equipment.
Expansion Slots
Intel Core X series 48-lane processors:
1.2 x PCI Express x16 slots, running at x16 (PCIEX16_1, PCIEX16_2)
2.2 x PCI Express x16 slots, running at x8 (PCIEX8_1, PCIEX8_2)
The PCIEX8_1 slot shares bandwidth with the M2M connector. The PCIEX8_1 slot operates at up to x4 mode when an SSD is installed in the M2M connector.
Intel Core X series 44-lane processors:
1.2 x PCI Express x16 slots, running at x16 (PCIEX16_1, PCIEX16_2)
2.1 x PCI Express x16 slot, running at x8 (PCIEX8_2)
3.1 x PCI Express x16 slot, running at x4 (PCIEX8_1)
The PCIEX8_1 slot shares bandwidth with the M2M connector. The PCIEX8_1 slot becomes unavailable when an SSD is installed in the M2M connector.
Intel Core X series 28-lane processors:
1.1 x PCI Express x16 slot, running at x16 (PCIEX16_1)
2.1 x PCI Express x16 slot, running at x8 (PCIEX16_2)
3.1 x PCI Express x16 slot, running at x4 (PCIEX8_1)
The PCIEX8_1 slot shares bandwidth with the M2M connector. The PCIEX8_1 slot becomes unavailable when an SSD is installed in the M2M connector.
(All of the PCI Express slots conform to PCI Express 3.0 standard.)
Multi-Graphics Technology
1.S upport for NVIDIA Quad-GPU SLI and 2-Way NVIDIA SLI technologies
2.S upport for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire technologies
Storage Interface
CPU:
1.1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe x4/x2 SSD support) (M2M)
Chipset:
1.1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support) (M2P)
2.1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support) (M2Q)
3.6 x SATA 6Gb/s connectors (SATA3 0, 1, 4, 5, 6, 7)
Support for RAID 0, RAID 1, RAID 5, and RAID 10
The M2M connector must work with an Intel VROC Upgrade Key to support RAID configuration.
Refer to "1-9 Internal Connectors," for the installation notices for the PCIEX8_1, M.2, and SATA connectors.
Intel Optane Memory Ready
Only Intel Core X series 48-lane processors support Intel Optane Memory.
Intel VROC Ready
ASMedia SATA 6Gb/s controller:
1.2 x SATA 6Gb/s connectors (SATA3 2, 3), supporting AHCI mode only
USB
Chipset+Intel Thunderbolt 3 Controller:
1.2 x USB Type-C ports on the back panel, with USB 3.2 Gen 2 support
Chipset+ASMedia USB 3.2 Gen 2 controller:
1.1 x USB Type-C port with USB 3.2 Gen 2 support, available through the internal USB header
Chipset+Genesys USB 3.2 Gen 1 hub:
1.3 x USB 3.2 Gen 1 ports on the back panel
Chipset:
1.5 x USB 3.2 Gen 1 ports (1 port on the back panel, 4 ports available through the internal USB headers)
2.2 x USB 2.0/1.1 ports available through the internal USB header
Internal I/O Connectors
1.1 x 24-pin ATX main power connector
2.2 x 8-pin ATX 12V power connectors
3.1 x VGA_PW power connector
4.1 x CPU fan header
5.1 x water cooling CPU fan header
6.4 x system fan headers
7.2 x system fan/water cooling pump headers
8.2 x addressable LED strip headers
9.2 x RGB LED strip headers
10.3 x M.2 Socket 3 connectors
11.8 x SATA 6Gb/s connectors
12.1 x Intel VROC Upgrade Key header
13.1 x front panel header
14.1 x front panel audio header
15.1 x USB Type-C header, with USB 3.2 Gen 2 support
16.2 x USB 3.2 Gen 1 headers
17.1 x USB 2.0/1.1 header
18.1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
19.1 x noise detection header
20.1 x Clear CMOS jumper
21.1 x power button
22.1 x reset button
23.1 x Clear CMOS button
24.2 x temperature sensor headers
25.2 x BIOS switches
Back Panel Connectors
1.2 x DisplayPort In ports
2.2 x Thunderbolt 3 connectors (USB Type-C ports, with USB 3.2 Gen 2 support)
3.2 x SMA antenna connectors (2T2R)
4.4 x USB 3.2 Gen 1 ports
5.2 x RJ-45 ports
6.1 x optical S/PDIF Out connector
7.5 x audio jacks
I/O Controller
1.iTEI/O Controller Chip
H/W Monitoring
1.Voltage detection
2.Temperature detection
3.Fan speed detection
4.Water cooling flow rate detection
5.Overheating warning
6.Fan fail warning
7.Fan speed control
Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
8.Noise detection
BIOS
1.2 x 128 Mbit flash
2.Use of licensed AMI UEFI BIOS
3.Support for DualBIOS
4.PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
1.Support for APP Center
Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
At BIOS
AutoGreen
Cloud Station
EasyTune
Easy RAID
Fast Boot
Game Boost
Platform Power Management
RGB Fusion
Smart Backup
Smart Keyboard
Smart Survey
System Information Viewer
USB Blocker
USB TurboCharger
2.Support for Q-Flash Plus
3.Support for Q-Flash
4.Support for Xpress Install
Bundled Software
1.Norton Internet Security (OEM version)
2.cFosSpeed
3.XSplit Gamecaster + Broadcaster (12 months license)
Operating System
1.Support for Windows 10 64-bit
Form Factor
1.E-ATX Form Factor 30.5cm x 27.5cm
Item Dimension (L"xW"xH")
15 x 13 x 6

Weight
10 lbs
