Ion+ 560W Platinum
The Ion+ Platinum is a high-performance fully modular PSU with whisper-quiet operation, enhanced cable flexibility and superior output quality
UltraFlex DC wires for effortless cable-routing and connectors

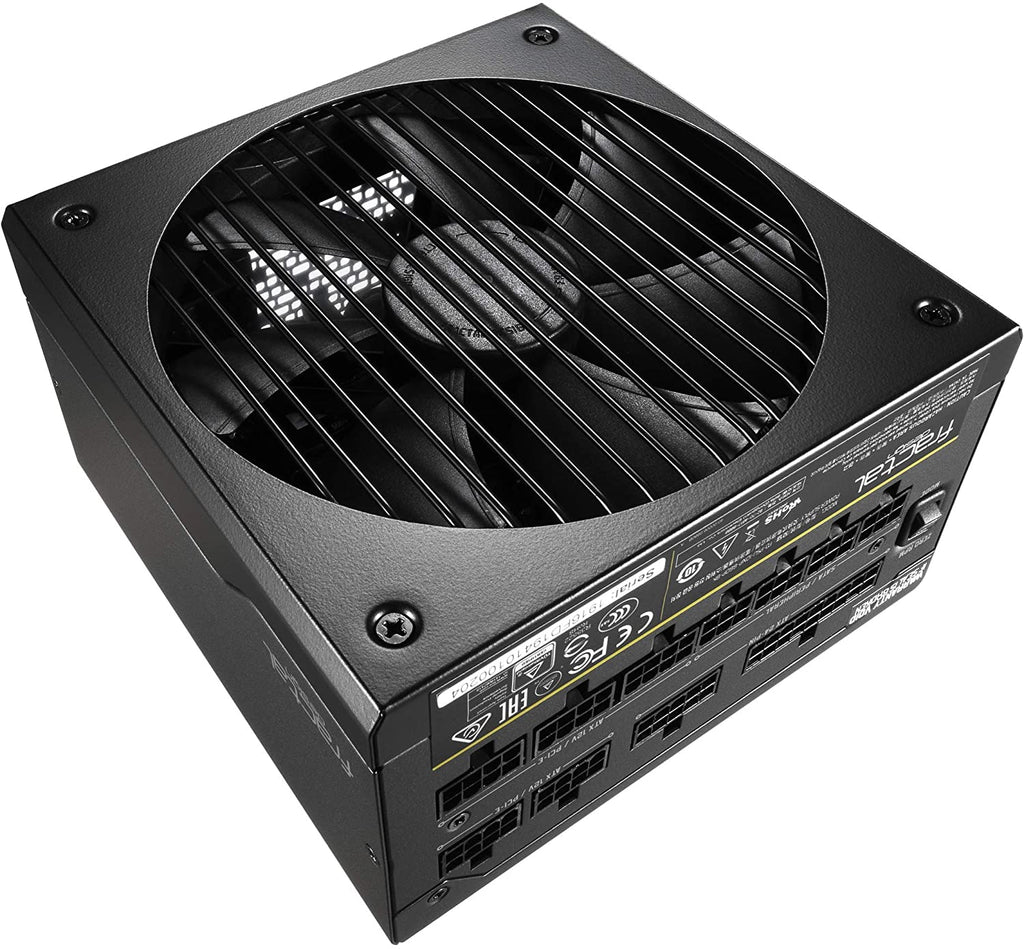

Custom-tailored 140 mm fan with exceptionally low minimum speed
80 PLUS® Platinum Efficiency for optimized electrical performance
The power of silence

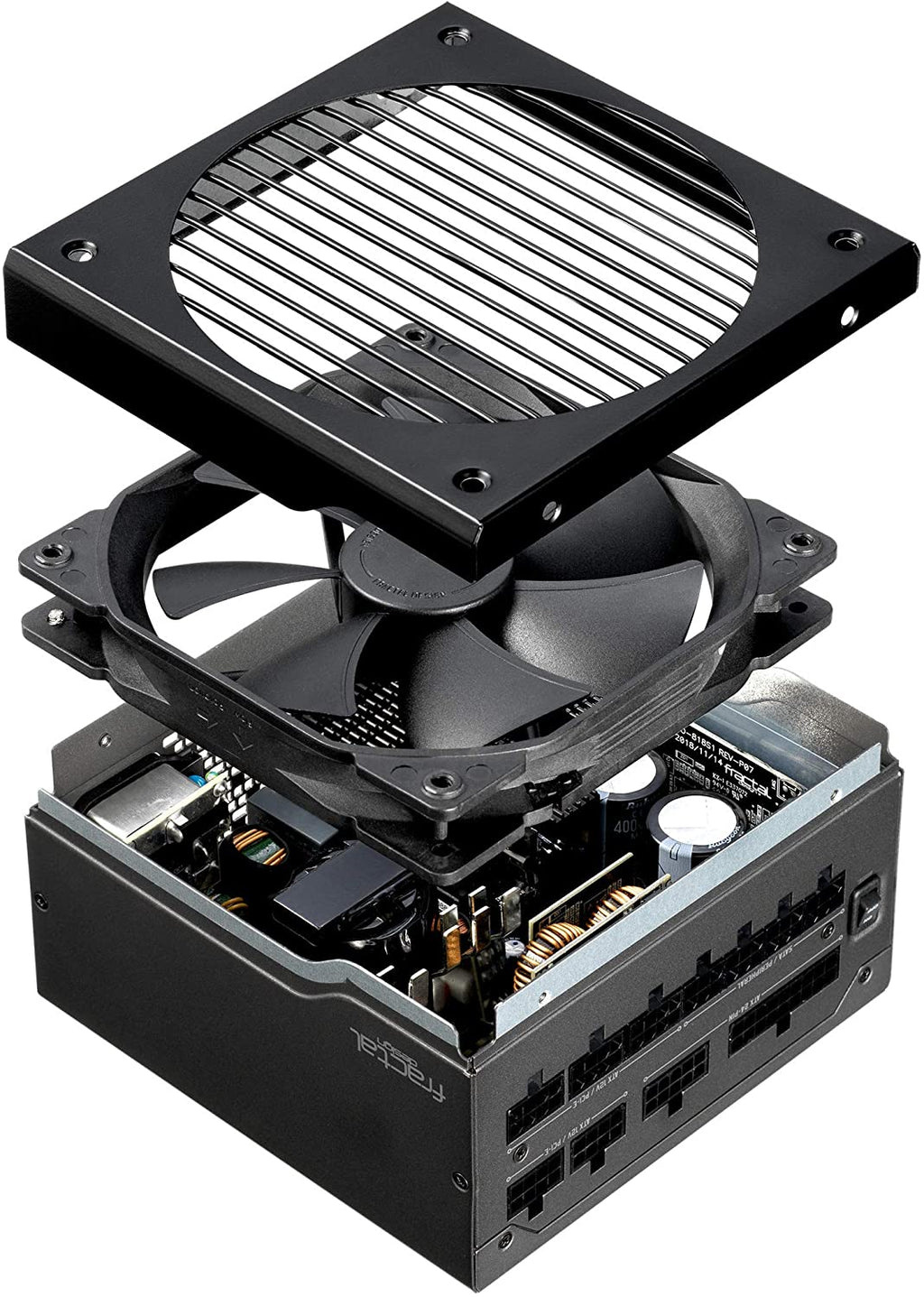

A user selectable semi-passive Zero RPM mode maintains pure silence under light loads, and under heavy use the custom-tailored 140 mm fan with FDB bearings barely breaks a whisper. The revolutionary UltraFlex cable bends and twists effortlessly to make installation and cable-routing a breeze, thanks to an ultra-high strand count wire and special insulation.

DETAIL SPECIFICATION
80 PLUS Certification
Platinum
Modular cables
Fully modular
Cable type
Modular 24-pin: Braided sleeve UltraFlex wire. Others: Flat UltraFlex wire
Fan type
Customized 140 mm FDB bearing Fractal Design Dynamic Series fan
Maximum operating temperature at full load
50oC
Semi-passive operation
Yes, user selectable (Zero RPM)
Sleep State Compliance
C6/C7

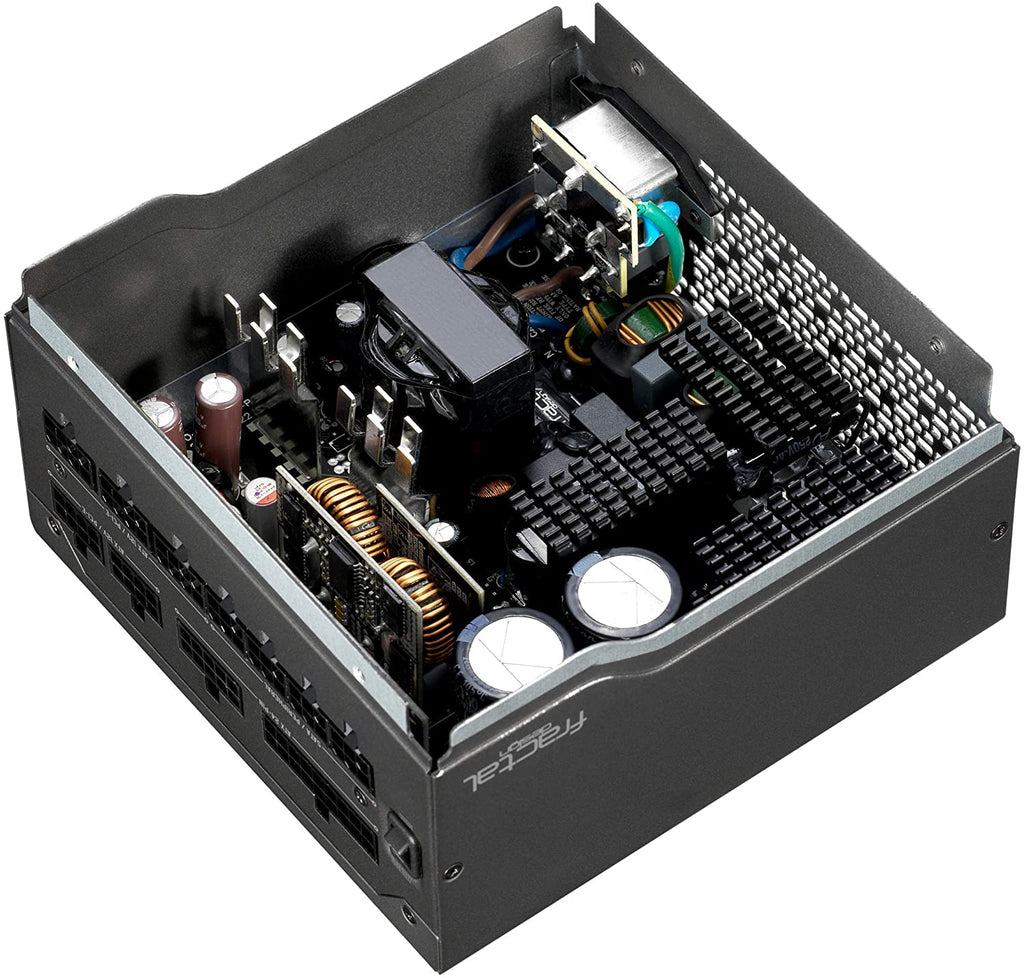

Capacitors
Japanese
Protection features
Over voltage protection. Under voltage protection. Over power protection. Short circuit protection. Over current protection. Over temperature protection
Approvals Certifications
CE, FCC, TUV, cTUVus, EAC, RCM, CCC, BSMI, CB, RoHS, WEEE
Life expectancy (MTBF) at max output load
100,000 hours
Input voltage
100-240V AC
Input frequency
50-60 Hz
Input current
10A/5A
Number of 12V rails
1
PSU specification compliance
ATX12V 2.4 / EPS12V 2.92
Standby efficiency
ErP 2013 (<0.45W 230 VAC, 45 mA load on +5Vsb)
Standby efficiency
ErP 2013 (<0.45W 230 VAC, 45 mA load on +5Vsb)

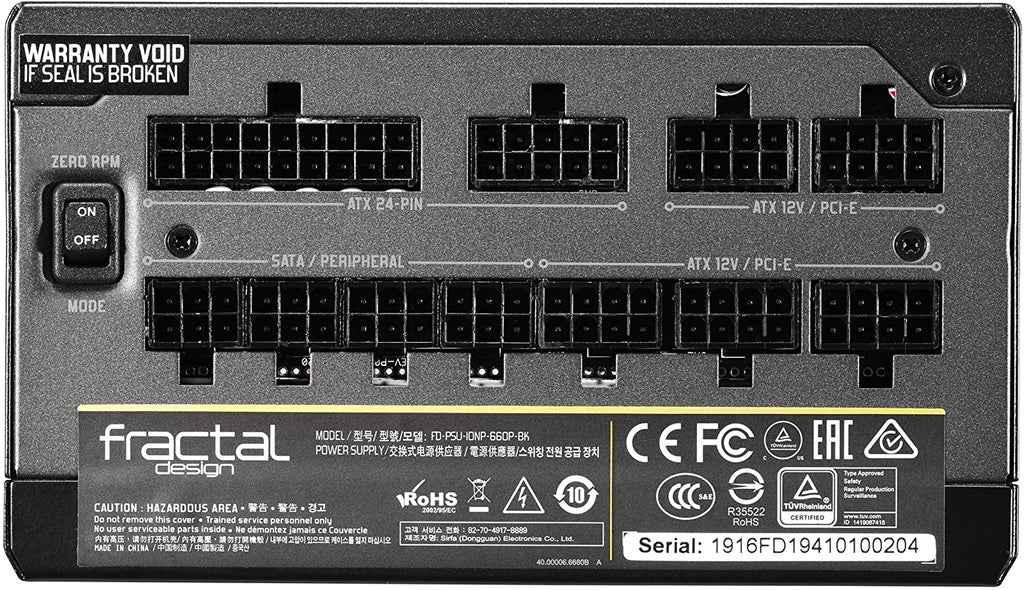

ATX 24-pin
1
ATX12V 4+4 pin / EPS12V 8-pin
1
PCIe 6+2 pin
4
SATA
10

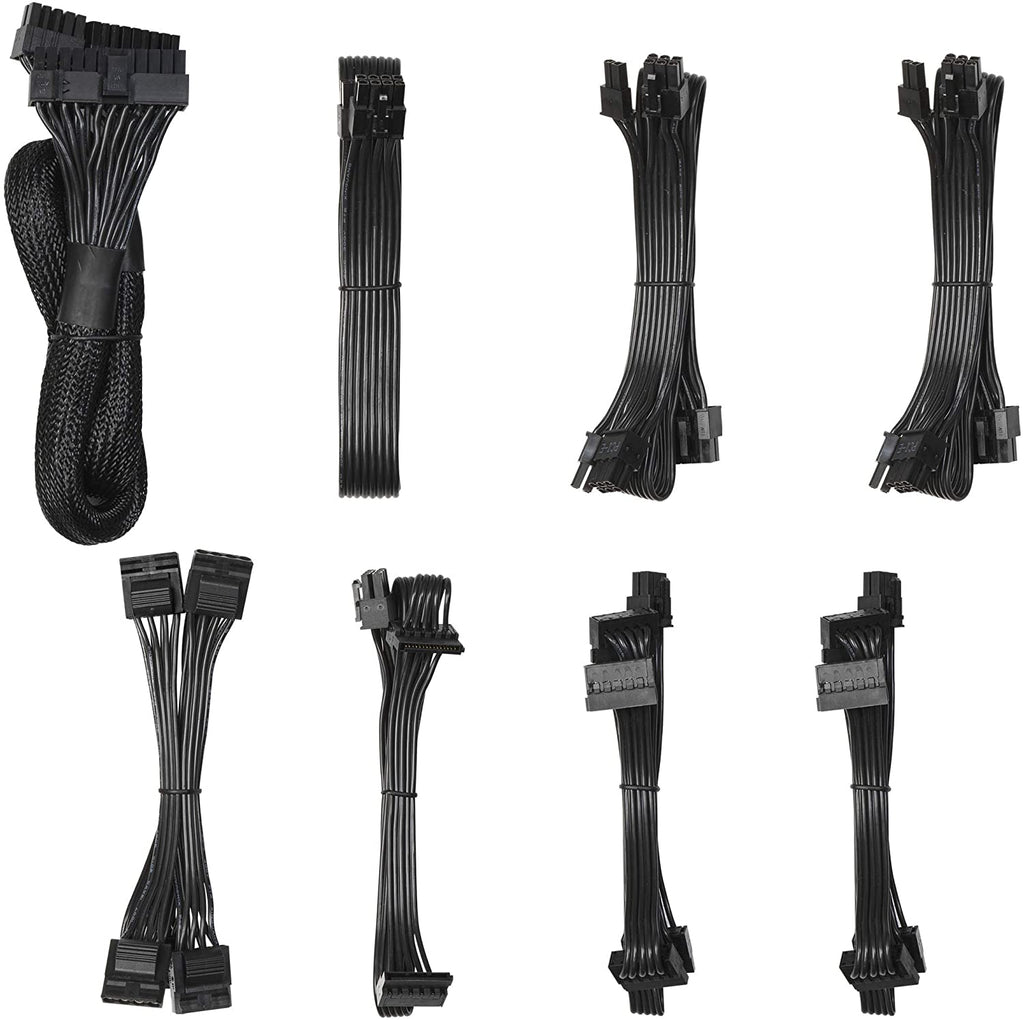

Cable configuration (length between connectors)
ATX 24-pin
600 mm
ATX12V 4+4 pin
700 mm
EPS12V 8-pin
N/A
PCIe 6+2 pin
550+120 mm x2
PCIe 6+2 pin
550+120 mm x2
Peripheral
400+120+120+120

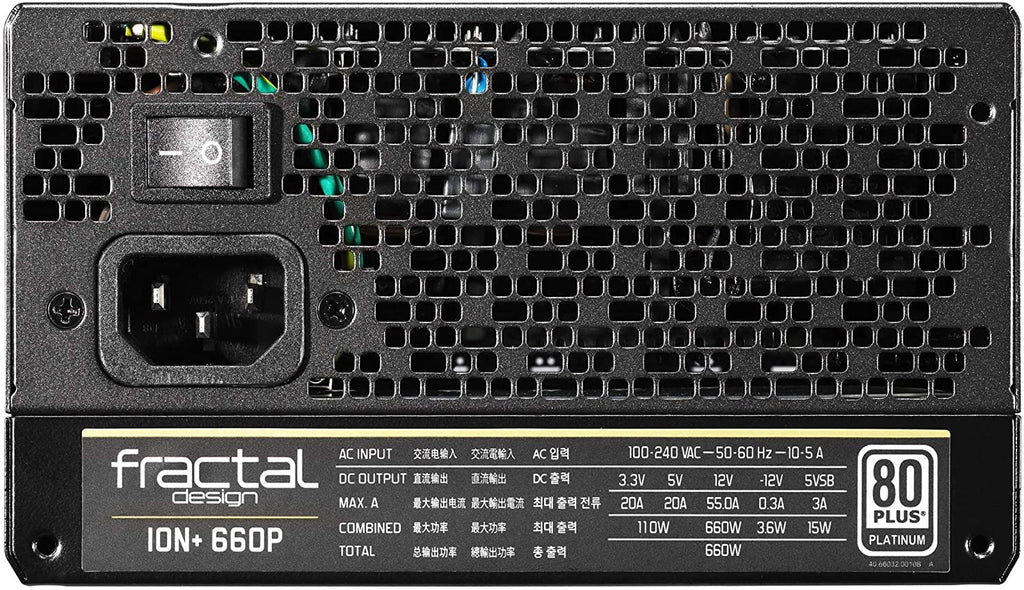

DC output
3.3 V
20 A
5 V
20 A
3.3 V and 5 V combined
110 W
12 V
55.0 A
-12 V
0.3 A
5 V Standby (+5 Vsb)
3 A
Total Power
660 W

Item Dimension (L inchxW inchxH inch)
13 x 9 x 5
Weight
5.72 LB
​
