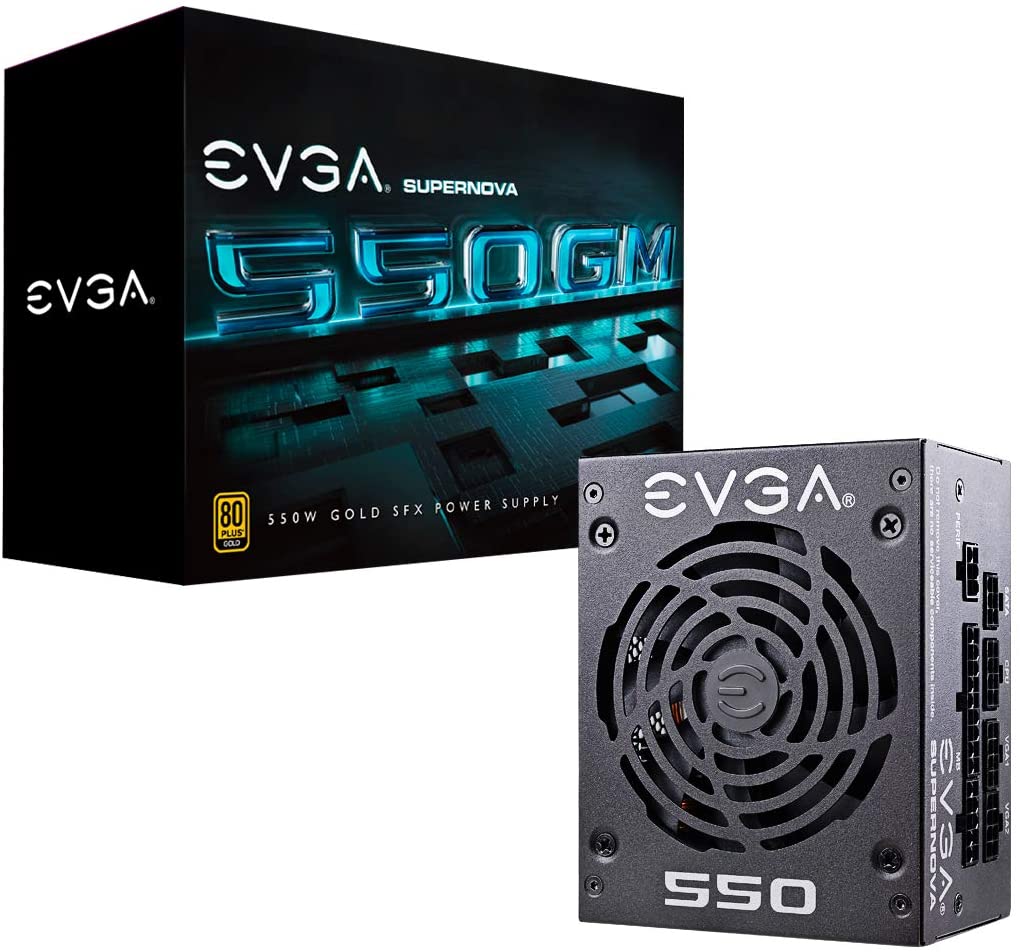

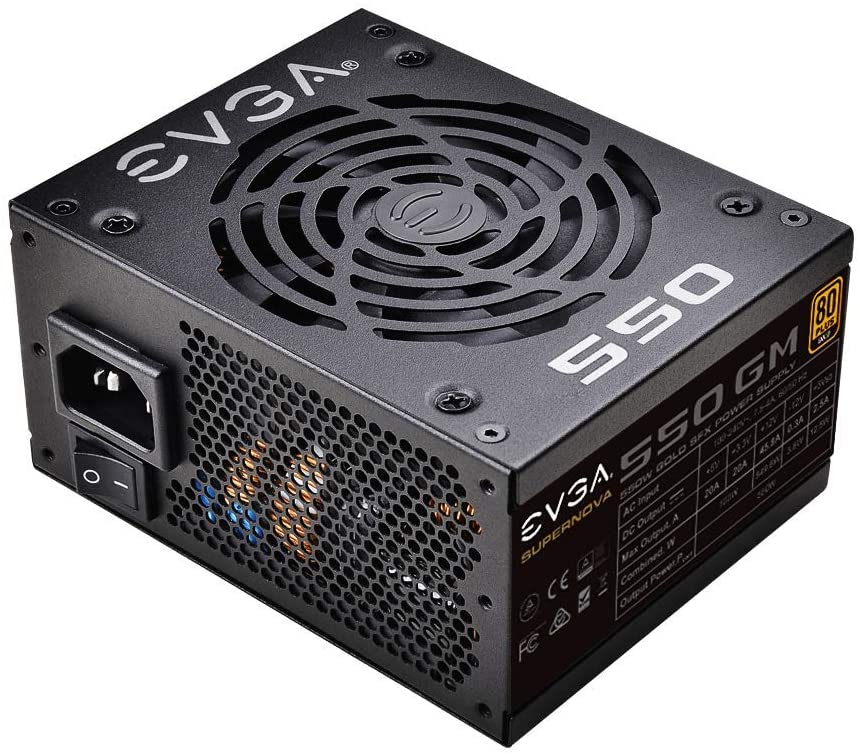

Introducing the EVGA SuperNOVA GM line. Available in 550W. These new power supplies are engineered to bring the power, prestige, and performance of EVGA's award-winning power supplies into an SFX-Standard form factor. Featuring 80 Plus Gold certified efficiency, fully-modular cables, and 100% Japanese capacitors, the GM's cast a long shadow over its competition. Pint-size, affordable, and packed with everything you need, the EVGA SuperNOVA GM power supplies make short work of tight spaces.
FULLY MODULAR DESIGN

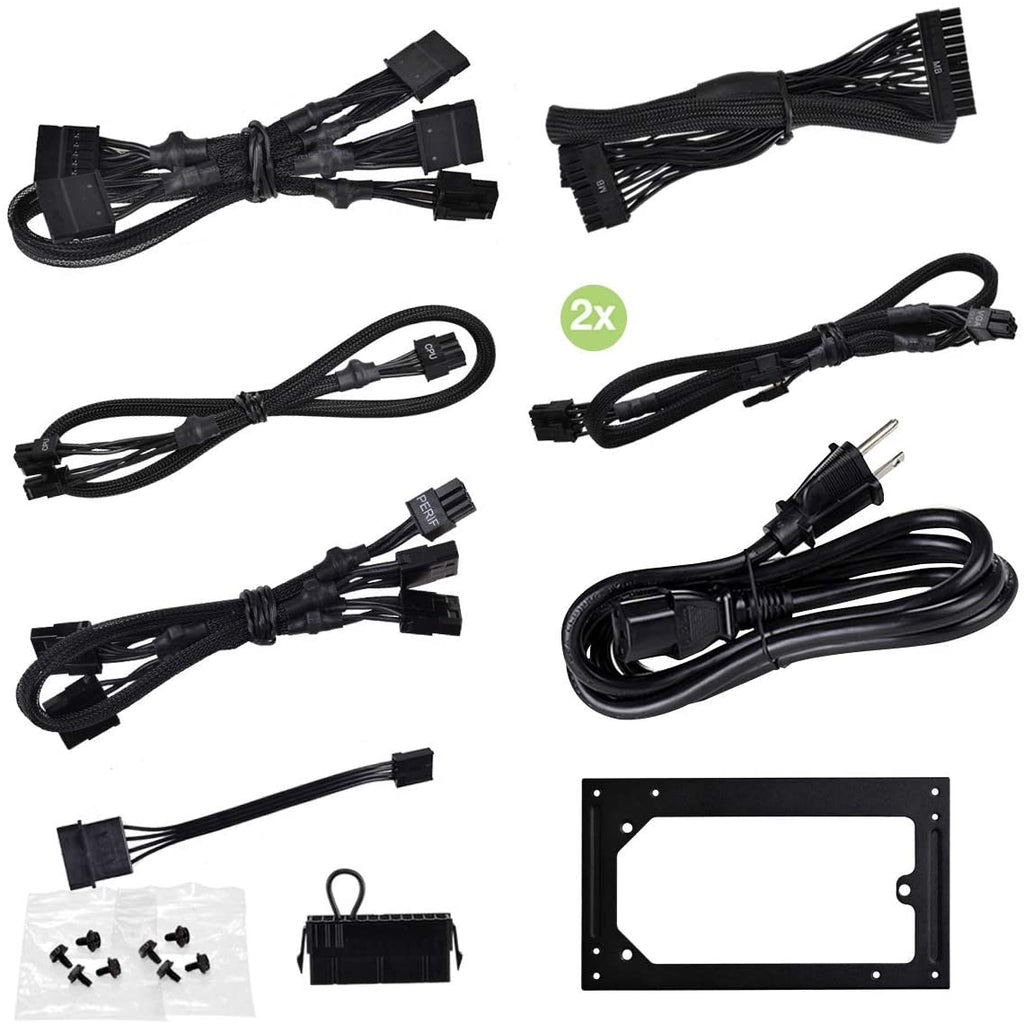

Use only the cables you need, reducing cable clutter and improving air flow.
SFX TO ATX BRACKET ADAPTER INCLUDED
The GM power supplies were designed to power systems built in the smallest of PC cases, but are equally capable of powering systems built in a standard ATX form factor.
RELIABLE 100% JAPANESE CAPACITORS
Get the most reliability and greatest performance with the use of the highest possible quality Japanese capacitors on the most critical system components.
92MM DURABLE DOUBLE-BALL BEARING FAN
A high-quality double-ball bearing fan gives the GM power supplies an excellent thermal and acoustic profile, and its high reliability ensures a long PSU lifetime.
Features
• 100% Japanese Capacitors on Main PCB ensure long-term reliability
• 80 PLUS Gold certified, with 90% (115VAC) / 92% (220VAC~240VAC) efficiency or higher under typical loads
• Fully Modular to reduce clutter and improve airflow
• Heavy-duty protections, including OVP (Over Voltage Protection), UVP (Under Voltage Protection), OCP (Over Current Protection), OPP (Over Power Protection), SCP (Short Circuit Protection), and OTP (Over Temperature Protection)
• Double Ball Bearing fan for exceptional reliability and quiet operation
• SFX-Standard Form Factor packs large power into a small space for compatibility with mITX cases and compact gaming systems
FULLY MODULAR DESIGN
Use only the cables you need, reducing cable clutter and improving air flow.
SFX TO ATX BRACKET ADAPTER INCLUDED
The GM power supplies were designed to power systems built in the smallest of PC cases, but are equally capable of powering systems built in a standard ATX form factor.
RELIABLE 100% JAPANESE CAPACITORS
Get the most reliability and greatest performance with the use of the highest possible quality Japanese capacitors on the most critical system components.
92MM DURABLE DOUBLE-BALL BEARING FAN
A high-quality double-ball bearing fan gives the GM power supplies an excellent thermal and acoustic profile, and its high reliability ensures a long PSU lifetime.
Features
• 100% Japanese Capacitors on Main PCB ensure long-term reliability
• 80 PLUS Gold certified, with 90% (115VAC) / 92% (220VAC~240VAC) efficiency or higher under typical loads
• Fully Modular to reduce clutter and improve airflow
• Heavy-duty protections, including OVP (Over Voltage Protection), UVP (Under Voltage Protection), OCP (Over Current Protection), OPP (Over Power Protection), SCP (Short Circuit Protection), and OTP (Over Temperature Protection)
• Double Ball Bearing fan for exceptional reliability and quiet operation
• SFX-Standard Form Factor packs large power into a small space for compatibility with mITX cases and compact gaming systems
DETAIL SPECIFICATIONS
| CABLE LENGTH ATX CABLE 1x 300mm (m) |
| EPS CABLE 1x 400mm (m) PCIE CABLE 1x 400mm, 510mm (m) / 1x 510mm, 620mm (m) |
| SATA CABLE 1x 300mm, 410mm, 520mm, 630mm (m) FOUR-PIN PERIPHERAL CABLE 1x 300mm, 410mm, 520mm, 630mm (m) |
| FLOPPY ADAPTER 1x 100mm (m) AC POWER 1x 1500mm (m) |
| MODULAR CABLE TYPE Full MOLEX TO FDD 1x |
| CONNECTOR QUANTITY 24 PIN ATX 1x |
| EPS (CPU) 1x 8pin (4+4) PCIE 4x 8pin (6+2) |
| SATA 4x FOUR-PIN PERIPHERAL 4x |
| FLOPPY 1x |

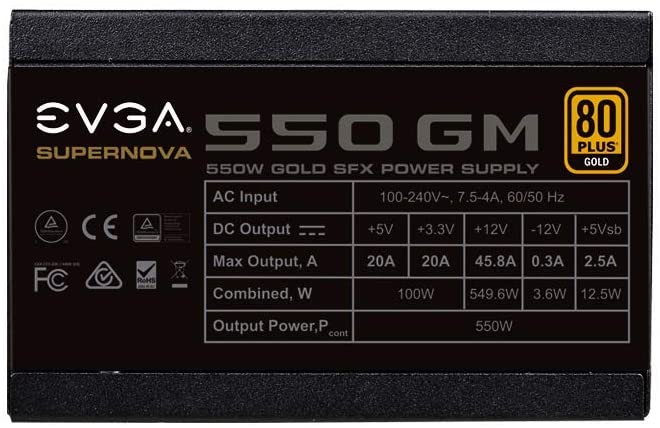

| POWER SPECS AC Input 100-240 VAC, 7.5 - 4A, 50 - 60 Hz |
| Rail +3.3V Max Output 20A 100W |
| Rail +5V Max Output 20A 100W |
| Rail +12V Max Output 45.8A 549.6W 549.6W |
| Rail +5Vsb Max Output 2.5A 12W |
| Rail -12V Max Output 0.3A 3.6W |
| Total 550W at 40oC |
| ADDITIONAL DETAILS OPERATING TEMPERATURE 0o to 40o C |
| JAPANESE CAPACITORS 100% on Main PCB ECO MODE Auto MTBF 100,000 Hours APPROVALS TUV, CB, CE, FCC, cTUVus, WEEE, RoHS Compliance with ErP Lot 6 2013 Requirement FAN SIZE / BEARING 92mm Double Ball Bearing |
| Item Dimension (L"xW"xH") 11 x 4 x 8 Weight 3.30 LB |
