EVGA SuperNOVA 1300W G2 80+Gold Fully Modular

$285.84$297.88
  • EVGA SuperNOVA 1300W G2 80+Gold Fully Modular

RaidBox

EVGA SuperNOVA 1300W G2 80+Gold Fully Modular

$285.84$297.88
Introducing the EVGA SuperNOVA G2 Series of power supplies - the newest addition to the outstanding line of EVGA Power Supplies. Featuring 80 Plus Gold certification, 100% Japanese capacitors, a durable double-ball bearing fan, and a fully modular design, this power supply is built for long-term usage and durability. Building upon EVGA's line of 80 Plus Gold rated power supplies, the EVGA GA Series combines all these features at a great price.
GOLD RATED
80 Plus certification ensures your power supply isn't wasting power and turning it into excess heat. Under typical load, this power supply is 90% efficient or higher.
100% JAPANESE CAPACITORS
Get the most reliability and greatest performance with the use of the highest possible quality Japanese Capacitors.

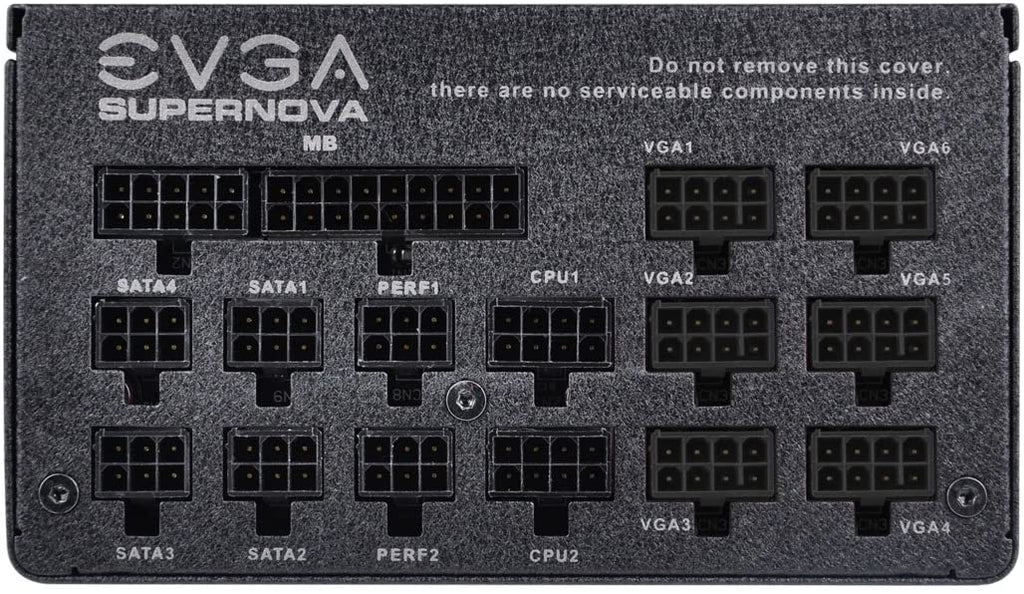

FULLY MODULAR DESIGN
Use only the cables you need, reducing cable clutter and improving case airflow.
LLC RESONANT CIRCUIT LAYOUT
GA Power Supplies feature a full DC to DC design with an LLC resonant circuit design to improve efficiency.
DURABLE 140MM DOUBLE BALL BEARING FAN

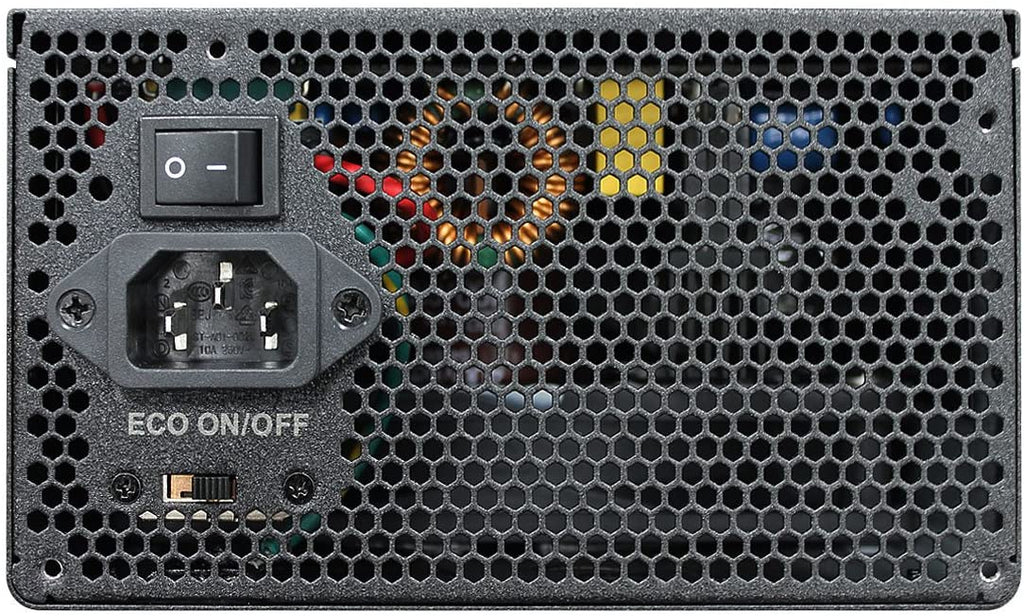

EVGA ECO mode means the power supply is completely silent during low to medium loads. Couple this with a long-lasting durable double ball bearing fan and you have the perfect mix of silence and longevity with the G2 Series power supplies.
MADE TO PROTECT & SERVE
The EVGA GA Series also includes a full suite of protections (OCP, OVP, UVP, OPP, SCP, OTP) for safety and security.
DETAIL SPECIFICATIONS
Cable Length
ATX Cable: 1x600mm (m)
EPS Cable: 2 x 750mm (m)
PCIE Cable: 2x 750mm, 900mm (m) 4x 750mm (m)
SATA Cable: 4x 550mm, 650mm, 750mm (m)
4-Pin Peripheral Cable: 1x 550mm, 650mm, 750mm (m) 1x 550mm, 650mm (m) (f)
Floppy Cable: 1 x 100mm
AC Cable: 1 x 1500mm (m)

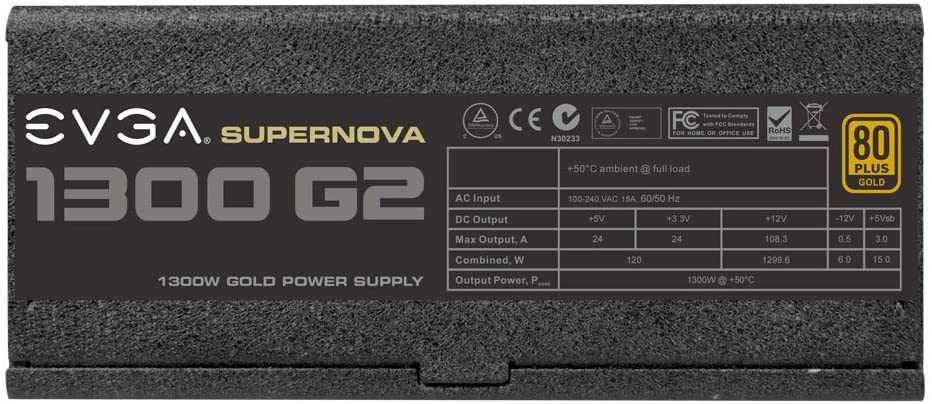

Power Specifications
AC Input: 100 to 240 VAC, 15A, 50-60 Hz
+3.3V Rail: 24A, 120W Max Output, 1300W at +50C Total
+5V Rail: 24A, 120W Max Output, 1300W at +50C Total
+12V Rail: 108.3A 1299.6W Total Output, 1300W at +50C Total
+5vsb Rail: 3A, 15W Max Output, 1300W at +50C Total
-12V Rail: 0.3A, 6W Max Output, 1300W at +50C Total
Item Dimension (L"xW"xH")
4 x 6 x 6

Weight
9.5 lb
