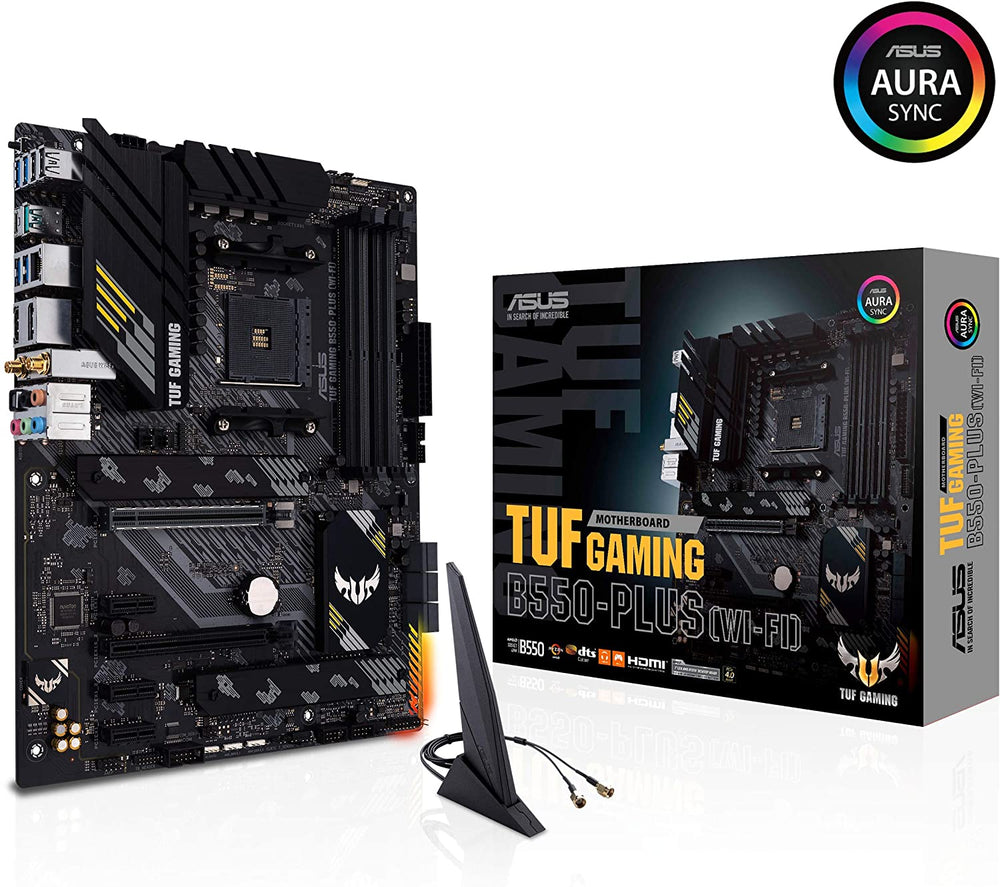

ASUS TUF Gaming B550-PLUS WiFi AMD AM4 (3rd Gen Ryzen™) ATX

$180.49
  • ASUS TUF Gaming B550-PLUS WiFi AMD AM4 (3rd Gen Ryzen™) ATX

RaidBox

ASUS TUF Gaming B550-PLUS WiFi AMD AM4 (3rd Gen Ryzen™) ATX

$180.49
Information
• AMD AM4 socket: Ready for 3rd Gen AMD Ryzen™ processors
• Enhanced power solution: 8+2 DrMOS power stages, ProCool sockets, military-grade TUF components, and Digi+ VRM for maximum durability
• Comprehensive cooling: VRM heatsink, PCH fanless heatsink, Dual M.2 heatsink, hybrid fan headers and Fan Xpert 4 utility
• Next-gen connectivity: PCIe 4.0 M.2, USB 3.2 Gen 2 Type-A and Type-C, Thunderbolt™ 3 header support
• Made for online gaming: Intel Wi-Fi 6, 2.5 Gb Ethernet, TUF LANGuard, and Turbo LAN technology
• Realtek S1200A codec: Pristine audio quality with unprecedented 108 dB signal-to-noise ratio for stereo line out and 103 dB SNR for line in
• AI noise-canceling microphone: provides crystal-clear in-game voice communication

DURABLE. STABLE. RELIABLE.
TUF Gaming B550-Plus (Wi-Fi) distills essential elements of the latest AMD platform and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive set of cooling options, this motherboard delivers rock-solid performance with unwavering gaming stability.
When you build with a TUF Gaming motherboard, you also benefit from the TUF Gaming Alliance — an ASUS collaboration with trusted industry partners that ensures easier building, best compatibility, and complementary aesthetics from components to case.

ROCK-SOLID PERFORMANCE
With upgraded power delivery and comprehensive cooling options to fuel the latest AMD Ryzen CPUs, plus support for faster memory and storage, TUF Gaming B550-Plus (Wi-Fi) is the perfect foundation for your next high-core-count battle rig.
CPU
Build in AMD for 3rd Gen AMD RyzenTM and 3rd Gen AMD RyzenTM with RadeonTM Graphics Processors

Chipset
AMD B550

Memory
3rd Gen AMD RyzenTM Processors
4 x DIMM, Max. 128GB, DDR4
4600(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory
3rd Gen AMD RyzenTM with RadeonTM Graphics Processors
4 x DIMM, Max. 128GB, DDR4
4800(O.C.)/4600(O.C)/4466(O.C.)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory
Dual Channel Memory Architecture
ECC Memory (ECC mode) support varies by CPU.

Graphic
1 x DisplayPort 1.2
1 x HDMI 2.1(4K at 60HZ)
Graphics specifications may vary between CPU types.

Multi-GPU Support
Supports AMD 2-Way CrossFireX Technology

Expansion Slots
3rd Gen AMD RyzenTM Processors
1 x PCIe 4.0 x16 (x16 mode)
3rd Gen AMD RyzenTM with RadeonTM Graphics Processors
1 x PCIe 3.0 x16 (x16 mode)
AMD B550 Chipset
1 x PCIe 3.0 x16 (x4 mode)
3 x PCIe 3.0 x1
Support PCIe bifurcation for RAID on CPU function.

Storage
Total supports 2 x M.2 slot(s) and 6 x SATA 6Gb/s ports
3rd Gen AMD RyzenTM Processors :
1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support(SATA and PCIe 4.0 x4 mode)
3rd Gen AMD RyzenTM with RadeonTM Graphics Processors :
1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 3.0 x4 and SATA modes) storage devices support
AMD B550 Chipset :
1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 3.0 x4 and SATA modes) storage devices support2
6 x SATA 6Gb/s port(s),
Support Raid 0, 1, 5, 10

LAN
Realtek RTL8125B 2.5Gb Ethernet
TUF LANGuard

Wireless Data Network
Intel Wi-Fi 6 AX200
2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) support 1024QAM/OFDMA/MU-MIMO
Supports up to 2.4Gbps max data rate
Supports dual band frequency 2.4/5 GHz
Supports channel bandwidth: HT20/HT40/HT80/HT160
Supports PCIe interface

Audio
Realtek ALC S1200A 7.1 Surround Sound High Definition Audio CODEC
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback
Audio Feature :
- Exclusive DTS Custom for GAMING Headsets.
- Optical S/PDIF out port(s) at back panel
- Audio cover
- Audio Shielding
- Dedicated audio PCB layers
- Premium Japanese audio capacitors
- Unique de-pop circuit

USB Ports
Rear USB Port ( Total 8 )
2 x USB 3.2 Gen 2 port(s)(1 x Type-A +1 x USB Type-C)
4 x USB 3.2 Gen 1 port(s)( x Type-A)
2 x USB 2.0 port(s)( x Type-A)
Front USB Port ( Total 6 )
2 x USB 3.2 Gen 1 port(s)(2 x Type-A)
4 x USB 2.0 port(s)(4 x Type-A)

Software Features
ASUS Exclusive Software
Armoury Crate
- Aura Creator
- Aura Sync
- AI Noise Cancelling Microphone
AI Suite 3
- Performance And Power Saving Utility
TurboV EVO
EPU
Digi+ VRM
Fan Xpert 4
- EZ update
TUF GAMING CPU-Z
AI Charger
ASUS Turbo LAN
DAEMON Tools
DTS Custom for GAMING Headsets
Norton Anti-virus software (Free Trial for 60 days)
WinRAR
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode

ASUS Special Features
ASUS TUF PROTECTION
- ASUS DIGI+ VRM (Digital power design with Dr. MOS)
- ASUS Enhanced DRAM Overcurrent Protection
- ASUS ESD Guards
- TUF LANGuard
- ASUS Overvoltage Protection
- ASUS SafeSlot
- ASUS Stainless-Steel Back I/O
ASUS Q-Design
- ASUS Q-DIMM
- ASUS Q-LED (CPU (red), DRAM (yellow), VGA (white), Boot Device (yellow green))
- ASUS Q-Slot
ASUS Thermal Solution
- Aluminum M.2 heatsink
ASUS EZ DIY
- BIOS FlashBackTM button
- BIOS FlashBackTM LED
- Procool
AURA Sync
- Standard RGB headers
- Addressable Gen 2 RGB header

Back I/O Ports
1 x DisplayPort
1 x HDMI
1 x LAN (2.5G) port(s)
2 x USB 3.2 Gen 2 (teal blue) (1 x Type-A+1 x USB Type-C)
4 x USB 3.2 Gen 1 (blue) Type-A
2 x USB 2.0 (one port can be switched to USB BIOS FlashBackTM)
1 x Optical S/PDIF out
5 x Audio jack(s)
1 x BIOS FlashBackTM Button(s)
1 x ASUS Wi-Fi Module

Internal I/O Ports
1 x CPU Fan connector(s)
1 x CPU OPT Fan connector(s)
3 x Chassis Fan connector(s)
1 x AIO_PUMP connector
2 x Aura RGB Strip Headers
2 x Addressable Gen 2 header(s)
1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support(SATA and PCIe 4.0 x4 mode)
1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA and PCIE 3.0 x 4 mode)
1 x SPI TPM header
6 x SATA 6Gb/s connector(s)
1 x Thunderbolt header(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin EATX 12V Power connectors
1 x Front panel audio connector(s) (AAFP)
1 x Thermal sensor connector(s)
1 x Clear CMOS jumper(s)
1 x System panel connector
1 x COM port header

Accessories
Users manual
I/O Shield
2 x SATA 6Gb/s cable(s)
1 x Supporting DVD
1 x TUF Gaming Sticker
1 x TUF Certification card(s)
1 x Wi-Fi Antenna(s)
1 x M.2 SSD screw package(s)
1 x M.2 Rubber Package(s)

BIOS
256 Mb Flash ROM, UEFI AMI BIOS

Manageability
WOL by PXE

Operating System
Windows 10 64-bit

Form Factor
ATX Form Factor

Note
1. PCIE 3.0 X16_2 runs x1 mode when any of the PCIe 3.0 x1 slots is occupied.
2. M2_2 shares bandwidth with SATA6G_56. When M.2_2 is populated, SATA6G_56 will be disabled.

Item Dimension (L inch x W inch x H inch)
14 x 11 x 3

Weight
4.00lb
