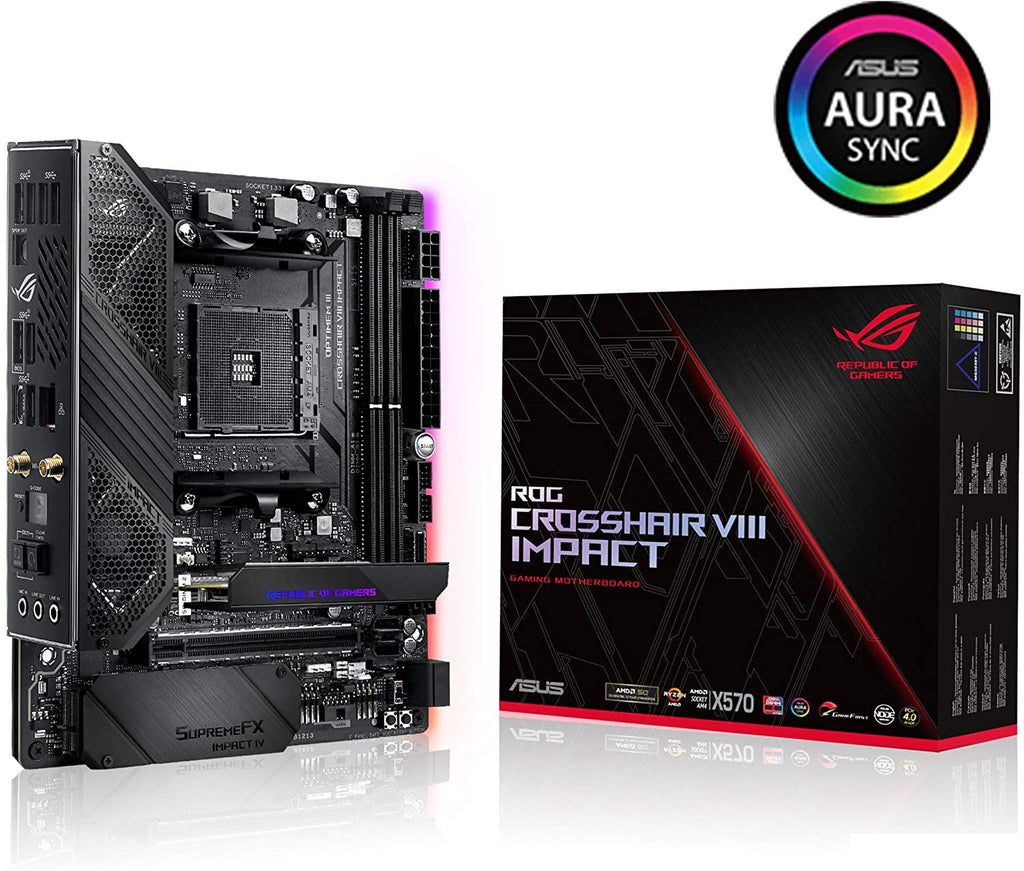

Asus ROG X570 Crosshair VIII Impact Mini-DTX SFF Gaming Motherboard

$443.62$451.14
  • Asus ROG X570 Crosshair VIII Impact Mini-DTX SFF Gaming Motherboard

RaidBox

Asus ROG X570 Crosshair VIII Impact Mini-DTX SFF Gaming Motherboard

$443.62$451.14
Information
• AMD AM4 socket: Ready for 2nd and 3rd Gen AMD Ryzen™ processors and up to two M.2 drives, USB 3.1 Gen2 and AMD StoreMI to maximize connectivity and speed

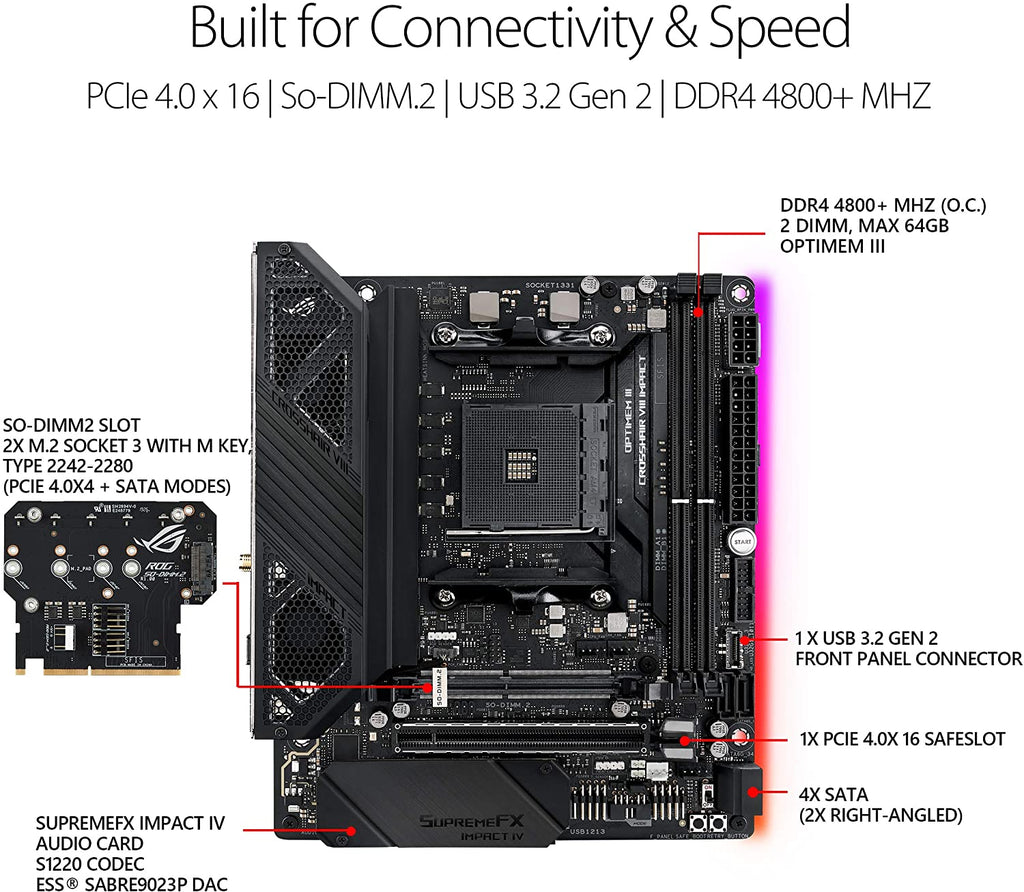

• SO-DIMM.2: Bundled expansion card with heatsink allows two M.2 drives to be connected via an SO-DIMM interface and helps control SSD thermals for maximum performance

• Comprehensive thermal design: An active VRM and chipset combo heatsink and full-sized aluminum backplate with heatpipe add mass to help absorb more heat

• High-performance networking: On-board Wi-Fi 6 (802.11ax) with MU-MIMO support and Intel Gigabit Ethernet with ASUS LANGuard supports GameFirst V technologies

• Advanced water-cooling features: ROG water-cooling zone, water pump + header, and radiator headers enable easy integration with a custom water-cooling loop

• 5-Way Optimization: Automated system-wide tuning creates overclocking and cooling profiles tailor made for your rig

• DIY Friendly Design: Pre-mounted I/O shield, ASUS SafeSlot and IMPACT Control Card IV , which adds BIOS FlashBack™, Clr CMOS, Q-Code and FlexKey functionality

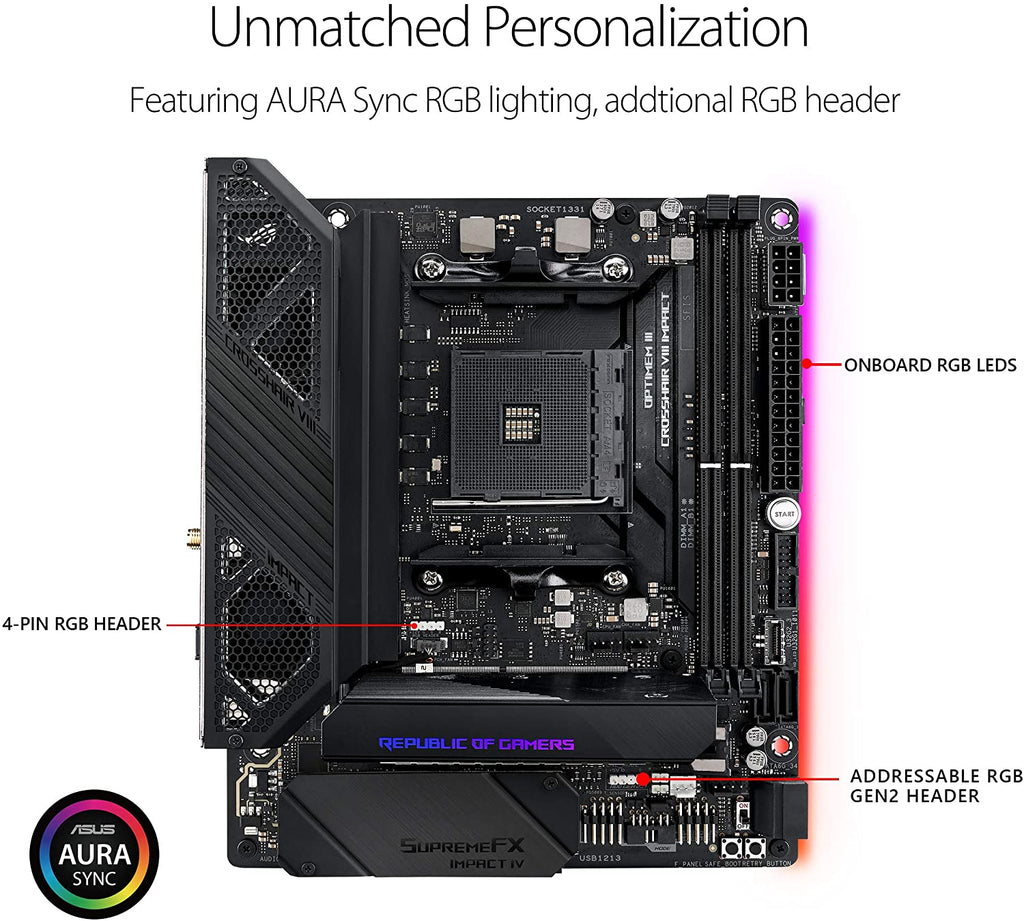

• Unmatched personalization: ASUS-exclusive Aura Sync RGB lighting, including RGB headers and Gen. 2 addressable headers

• Industry-leading ROG audio: SupremeFX S1220 and ESS® SABRE9023P for enthusiast-grade audio performance, Sonic Studio III and DTS Sound Unbound

COMPACT DESIGN

Impact's unusual Mini-DTX form factor is a deliberate choice. Many Mini-ITX cases ship with enough space for a dual-slot graphics card, meaning there's typically unused space below the bottom PCIe® slot – space that could be utilized to mount more components or enable additional features. Being marginally taller than mini-ITX allows Impact to exploit this unused space, allowing ROG engineers to squeeze in features while still fitting a large proportion of mini-ITX PC cases.
CPU
AMD AM4 Socket 3rd and 2nd AMD RyzenTM/2nd and 1st Gen AMD RyzenTMwith RadeonTMVega Graphics Processors
Chipset
AMD X570
Memory
3rd Gen AMD RyzenTM Processors
2 x DIMM, Max. 64GB, DDR4 4800(O.C.)/4600(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3200/3000/2933/2800/2666/2400/2133 MHz Un-buffered Memory
2nd Gen AMD RyzenTM Processors
4 x DIMM, Max. 64GB, DDR4 3600(O.C.)/3466(O.C.)/3400(O.C.)/3200(O.C.)/3000(O.C.)/2933/2800/2666/2400/2133 MHz Un-buffered Memory
2nd and 1st Gen AMD RyzenTM with RadeonTM Vega Graphics Processors
2 x DIMM, Max. 64GB, DDR4 3200(O.C.)/3000(O.C.)/2933/2800/2666/2400/2133 MHz Un-buffered Memory
Dual Channel Memory Architecture
Double Capcity DRAM support depends on the DRAM models
Expansion Slots
3rd Gen AMD RyzenTM Processors
1 x PCIe 4.0 x16 (x16 mode)
2nd Gen AMD RyzenTM Processors
1 x PCIe 3.0 x16 (x16 mode)
2nd and 1st Gen AMD RyzenTM with RadeonTM Vega Graphics Processors
1 x PCIe 3.0 x16 (x8 mode)
Storage
3rd Gen AMD RyzenTM Processors :
1 x M.2_2 socket 3, with M Key, Type 2242/2260/2280 (PCIE 4.0 x4 and SATA modes) storage devices support
2nd Gen AMD RyzenTM/2nd and 1st Gen AMD RyzenTM with RadeonTM Vega Graphics Processors :
1 x M.2_2 socket 3, with M key, type 2242/2260/2280 storage devices support (SATA PCIE 3.0 x 4 mode)
AMD X570 chipset :
1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280 (PCIE 4.0 x4 and SATA modes) storage devices support
4 x SATA 6Gb/s port(s),
Support Raid 0, 1, 10
LAN
Intel I211-AT
ASUS LAN Guard
ROG GameFirst Technology
Wireless Data Network
Intel Wi-Fi 6 AX200
Supports channel bandwidth: HT20/HT40/HT80/HT160
2 x 2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) with MU-MIMO supports dual frequency band 2.4/5GHz
Up to 2.4Gbps transfer speed
Bluetooth
Bluetooth 5.0
Audio
ROG SupremeFX 8-Channel High Definition Audio CODEC
- Impedance sense for front and rear headphone outputs
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
- SupremeFX Shielding Technology
- ESS ES9023P
- Supports up to 32-Bit/192kHz playback
Audio Feature :
- Sonic Studio III + Sonic Studio Virtual Mixer
- DTS Sound Unbound
- Optical S/PDIF out port(s) at back panel
- Sonic Radar III
Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio.
USB Ports
3rd Gen AMD RyzenTM Processors :
2 x USB 3.2 Gen 2 port(s)
3rd Gen AMD RyzenTM Processors :
2 x USB 3.2 Gen 1 port(s)
2nd Gen AMD RyzenTM/2nd and 1st Gen AMD RyzenTM with RadeonTM Vega Graphics Processors :
4 x USB 3.2 Gen 1 port(s)
AMD X570 chipset :
1 x USB 3.2 Gen 2 front panel connector port(s)
AMD X570 chipset :
4 x USB 3.2 Gen 2 port(s)
AMD X570 chipset :
2 x USB 3.2 Gen 1 port(s)
AMD X570 chipset :
2 x USB 2.0 port(s)
ROG Exclusive Features
Extreme Engine Digi+ :
- Infineon TDA21472 Power Stage
- MicroFine Alloy Chokes
- 10K Black Metallic Capacitors
ROG Extreme OC kit :
- OptiMem III
- Safe Boot button
- Slow Mode
- LN2 Mode
Extreme Tweaker
ROG Patented Pre-mounted I/O Shield
ROG Exclusive Software
- Sonic Studio III + Sonic Studio Virtual Mixer
- RAMCache III
- RAMDisk
- CPU-Z
- GameFirst V
- Sonic Radar III
Special Features
ASUS Dual Intelligent Processors 5-Way Optimization by Dual Intelligent Processors 5 :
- 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ VRM, Fan Expert 4, and Turbo App
AURA :
- Aura Lighting Effects Synchronization with compatible ASUS ROG devices
ASUS Exclusive Features :
- USB BIOS Flashback
- AI Suite 3
- Ai Charger
- ASUS CrashFree BIOS 3
- Armoury Crate
- ASUS NODE: hardware control interface
- ASUS EZ Flash 3
- ASUS C.P.R.(CPU Parameter Recall)
- Clear CMOS Button
- Reset Button
- Start Button
- ReTry button
ASUS Q-Design :
- ASUS Q-Code
- ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
- ASUS Q-Slot
- ASUS Q-DIMM

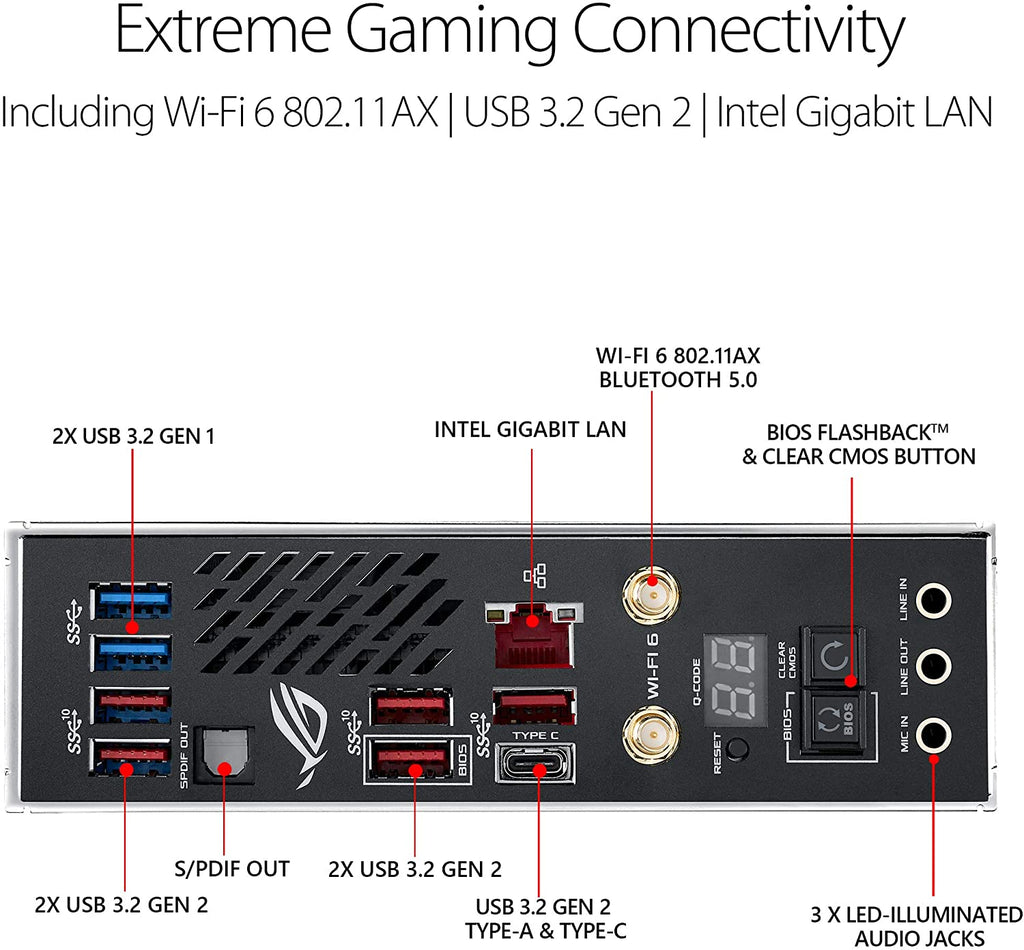

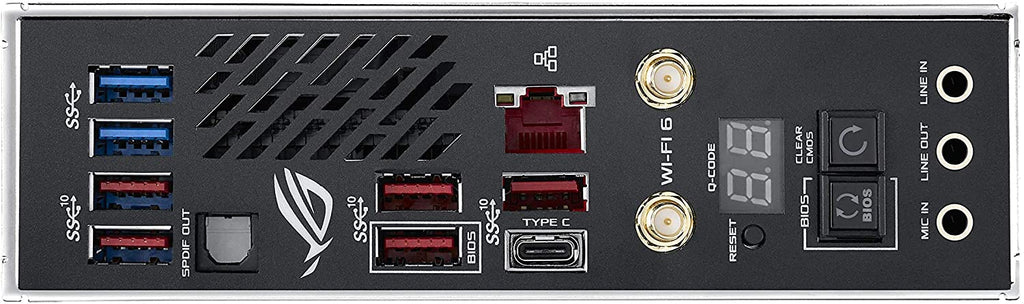

Back I/O Ports
1 x Optical S/PDIF out
1 x Clear CMOS button(s)
1 x USB BIOS Flashback Button(s)
1 x ASUS Wi-Fi Module
1 x Q-Code LED
1 x Reset Button
3 x LED-illuminated audio jacks
2 x USB 3.2 Gen 1 (up to 5Gbps) ports
6 x USB 3.2 Gen 2 (up to 10Gbps) ports ()
Anti-surge LAN (RJ45) port
Internal I/O Ports
1 x Aura RGB Strip Headers
2 x Addressable Gen 2 header(s)
1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)
2 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support
4 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s)
1 x Chassis Fan connector(s)
1 x W_PUMP+ connector
1 x 24-pin EATX Power connector(s)
1 x 8-pin EATX 12V Power connectors
1 x Front panel audio connector(s) (AAFP)
1 x Slow Mode switch(es)
1 x Reset button(s)
1 x Node Connector(s)
1 x LN2 Mode jumper(s)
1 x Safe Boot button
1 x ReTry button
1 x System panel connector
1 x T_Sensor Connector
1 x W_IN header
1 x W_OUT header
1 x W_FLOW header
1 x Start button
2 x Radiator Fan Headers
1 x USB 3.2 Gen 2 (up to 10Gbps) connector
1 x USB 3.2 Gen 1 (up to 5Gbps) connector support additional 2 USB ports

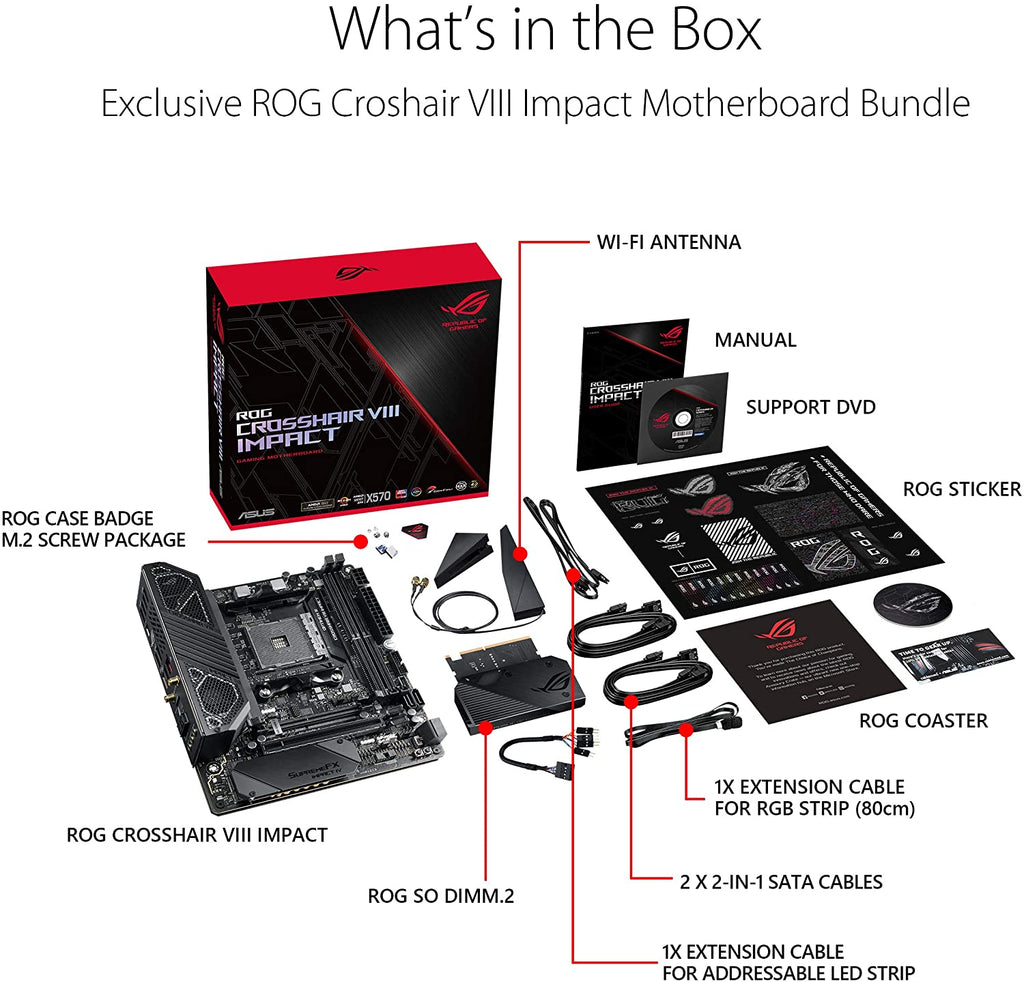

Accessories
Users manual
4 x SATA 6Gb/s cable(s)
1 x Supporting DVD
1 x ROG big sticker
2 x M.2 screw kit (short screw and mount)
1 x Wi-Fi Antenna(s)
1 x Extension Cable for RGB strips (80 cm)
1 x Extension cable for Addressable LED
1 x Panel cable
1 x ROG coaster(s)
1 x ROG Thank you card
1 x ROG SO-DIMM.2 with heatsinks
1 x 2-in-1 Rubber pad
BIOS
256 Mb Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.2, ACPI 6.2
Manageability
WOL, PXE
Operating System
Windows 10 64-bit
Form Factor
Mini-DTX Form Factor
8 inch x 6.7 inch ( 20.3 cm x 17 cm )
Item Dimension (L"xW"xH")
11 x 11 x 4
Weight
4.08 LB
