ASUS ROG Strix B550-E Gaming AMD AM4 (3rd Gen Ryzen™) ATX

$278.32
Information
ROG Strix B550 Gaming series motherboards offer a feature-set usually found in the higher-end ROG Strix X570 Gaming series, including the latest PCIe® 4.0. With robust power delivery and effective cooling, ROG Strix B550 Gaming is well-equipped to handle 3rd Gen AMD Ryzen™ CPUs. Boasting futuristic aesthetics and intuitive ROG software, ROG Strix B550-E Gaming gives you a head start on your dream build.
Advance Your Gaming Immersion
ROG Strix B550-E Gaming is PCIe® 4.0-ready and provides the latest connectivity options for supersmooth networking and blisteringly fast file transfers. Audio enhancements give you a massive advantage, allowing you to pick up on the subtlest of cues for a completely immersive gaming experience.

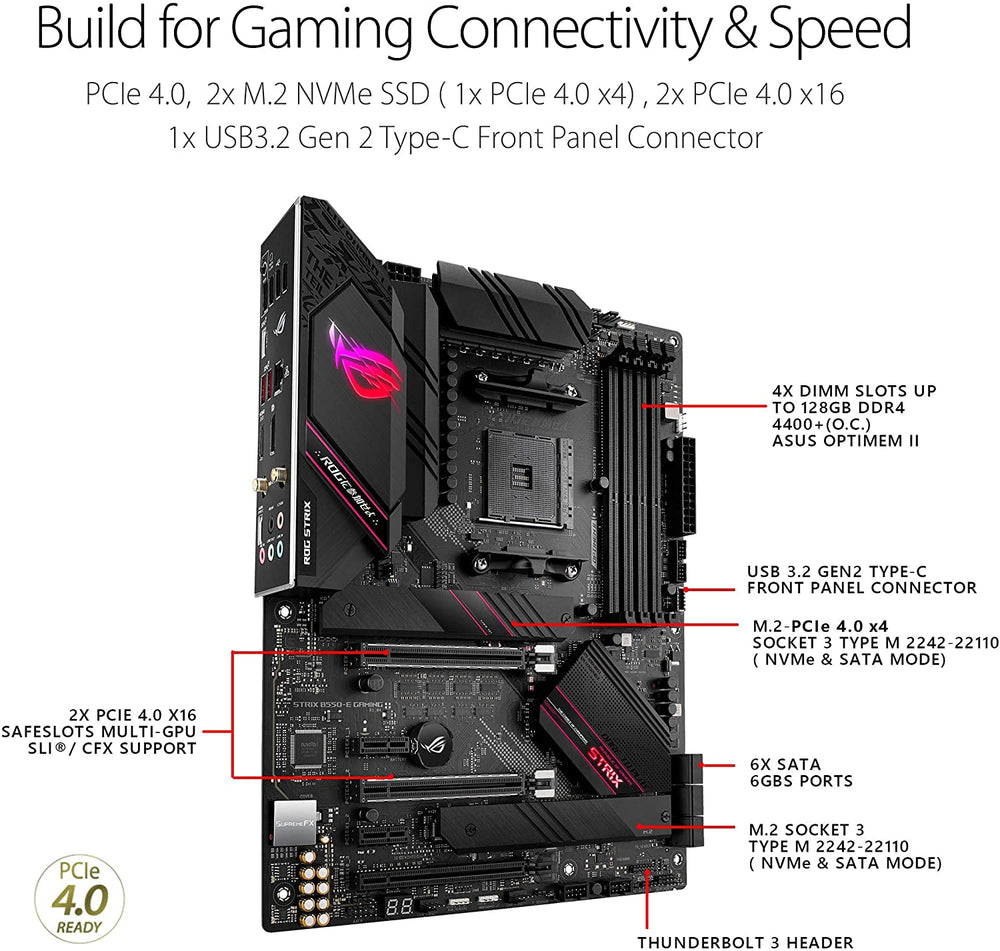

PCIe 4.0-Ready
ROG Strix B550-E Gaming features two M.2 slots, one of which supports the latest PCIe 4.0 standard to provide maximum storage flexibility and the fastest data speeds available via the 3rd Gen AMD Ryzen platform. Both M.2 slots support up to the type 22110 socket and NVM Express® RAID for a performance boost.

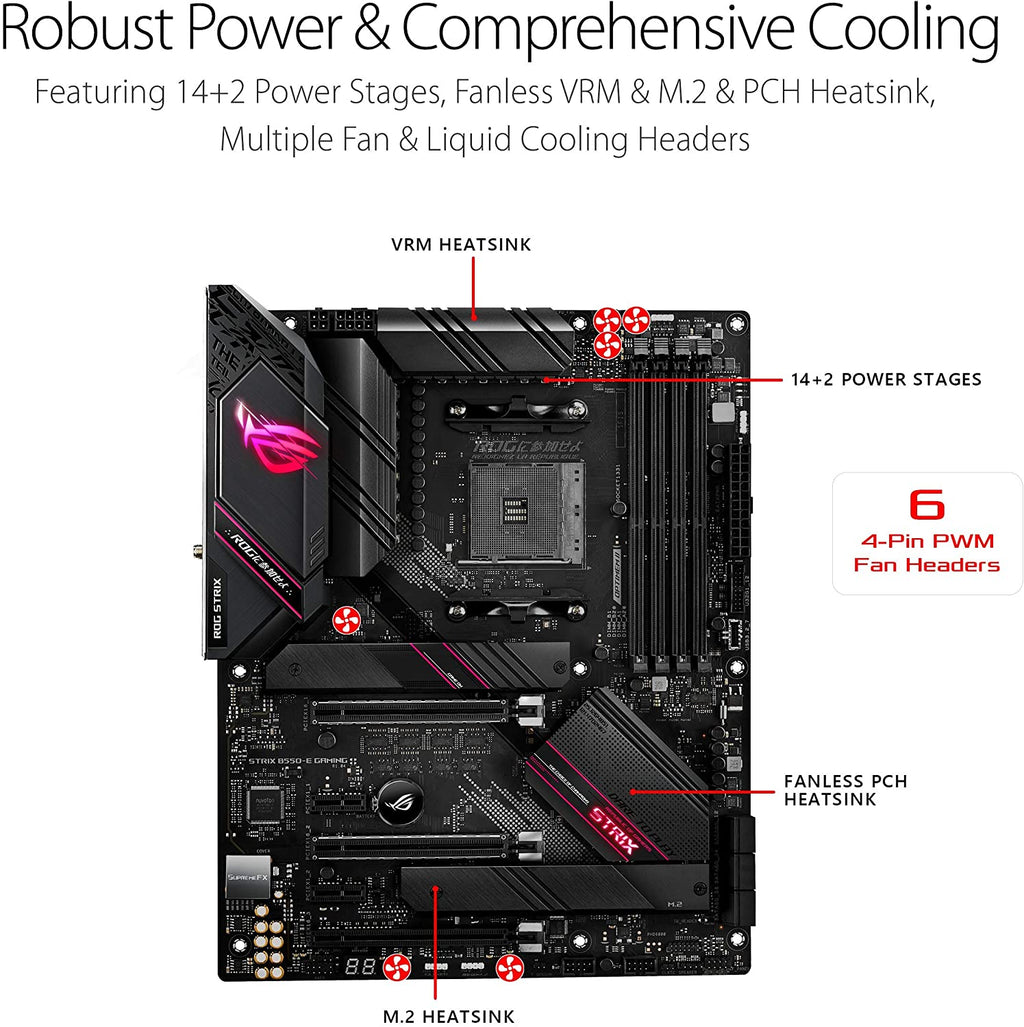

All-round Performance
ROG Strix B550-E Gaming provides robust power delivery to fuel Ryzen's cores, comprehensive cooling, and support for faster memory — so it has everything you need to load up your build with high-performance components for playing in the big leagues.
Play Your Own Style
The cyberpunk-inspired aesthetics of ROG Strix B550-E Gaming are accentuated by the bold slashes and cybertext. By pairing your rig with other products from the diverse ROG ecosystem, you can create a fully customized gaming setup that reflects your personal style.
CPU
AMD AM4 Socket 3rd Gen AMD RyzenTM Processors
Chipset
AMD B550
Memory
3rd Gen AMD RyzenTM Processors
4 x DIMM, Max. 128GB, DDR4 4600(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3466(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory
Next Generation AMD Ryzen PRO Processors
4 x DIMM, Max. 128GB, DDR4 5100(O.C)/4800(O.C.)/4600(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3466(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory
Dual Channel Memory Architecture
OptiMem II
ECC Memory (ECC mode) support varies by CPU.
Graphic
Integrated Graphics Processor
1 x DisplayPort 1.2
1 x HDMI 2.1(4K at 60HZ)
Graphics specifications may vary between CPU types.
Multi-GPU Support
Supports NVIDIA 2-Way SLI Technology
Supports AMD 3-Way CrossFireXTM Technology
Expansion Slots
3rd Gen AMD RyzenTM Processors
2 x PCIe 4.0 x16 (x16 or dual x8)
AMD B550 Chipset
1 x PCIe 3.0 x16 (x4 mode)
2 x PCIe 3.0 x1
Storage
Total supports 2 x M.2 slots and 6 x SATA 6Gb/s ports
3rd Gen AMD RyzenTM Processors :
1 x M.2_1 socket 3, with M key, type 2242/2260/2280/22110 storage devices support(SATA and PCIe 4.0 x4 mode)
AMD B550 Chipset :
1 x M.2_2 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA and PCIE 3.0 x 4 mode)
6 x SATA 6Gb/s port(s)
Support Raid 0, 1, 10
LAN
Intel I225-V 2.5Gb Ethernet
ASUS LANGuard
Wireless Data Network
Intel Wi-Fi 6 AX200
2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) support 1024QAM/OFDMA/MU-MIMO
Supports dual band frequency 2.4/5 GHz
Supports channel bandwidth: HT20/HT40/HT80/HT160
Bluetooth
Bluetooth v5.1
BT 5.1 function will be ready in Windows 10 build 19041 or later.
Audio
ROG SupremeFX 7.1-Channel High Definition Audio CODEC S1220A
- Dual OP Amplifiers
- Impedance sense for front and rear headphone outputs
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
- Supports up to 32-Bit/192kHz playback
Audio Feature :
- SupremeFX ShieldingTM Technology
- Rear audio USB Type-C port
- Audio Shielding
- Premium Japanese audio capacitors
- Audio Cover
USB Ports
Rear USB Port ( Total 8 )
3 x USB 3.2 Gen 2 port(s)(2 x Type-A +1 x USB Type-C)
4 x USB 2.0 port(s)(4 x Type-A)
1 x USB 2.0 port(s)(1 x audio USB Type-C )
Front USB Port ( Total 7 )
2 x USB 3.2 Gen 1 port(s)
4 x USB 2.0 port(s)
1 x USB 3.2 Gen 2 front panel connector port(s)
Software Features
ROG Exclusive Software
- RAMCache III
- ROG CPU-Z
- GameFirst VI
- Sonic Studio III + Sonic Studio Virtual Mixer
- Sonic Radar III
- DTS Sound Unbound
- Overwolf
- Anti-virus software
ASUS Exclusive Software Features
Armoury Crate
- Aura Creator
- Aura Sync
Ai noise cancelling microphone
AI Suite 3:
- 5-way Optimization
TPU
EPU
DIGI+ VRM
Fan Xpert 4
Turbo APP
- EZ update
WinRAR
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
FlexKey

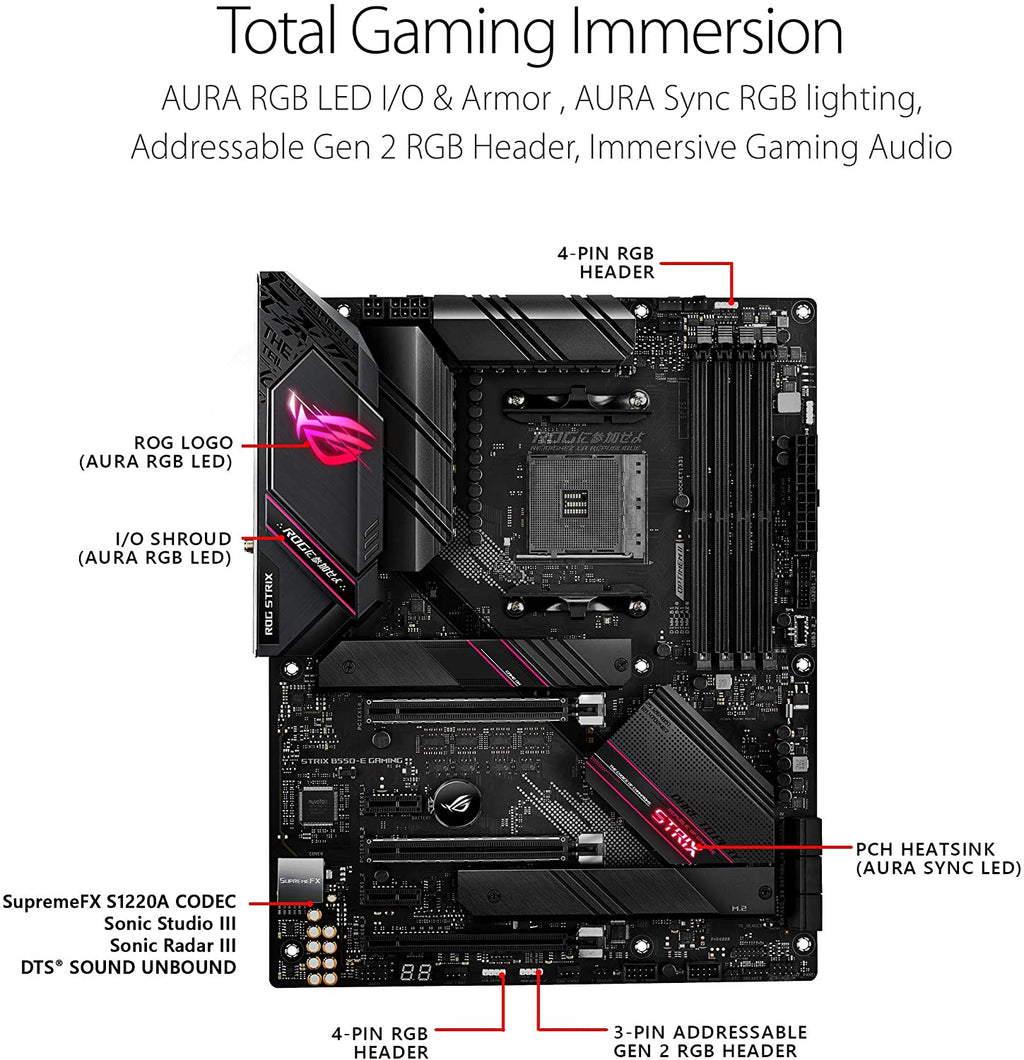

ASUS Special Features
Aura Sync
- Standard RGB header(s)
- Addressable Gen 2 RGB header(s)
ASUS Q-Design
- ASUS Q-CODE
- ASUS Q-DIMM
- ASUS Q-LED (DRAM (yellow),CPU (red), VGA (white), Boot Device (yellow green)
- ASUS Q-Slot
ASUS Thermal Solution
- Aluminum M.2 heatsink
ASUS EZ DIY
-BIOS FlashbackTM button
-BIOS FlashBackTM LED
-Clear CMOS header
-Procool
-Pre-mounted I/O shield
- SafeSlot
Rear audio USB Type-C connector

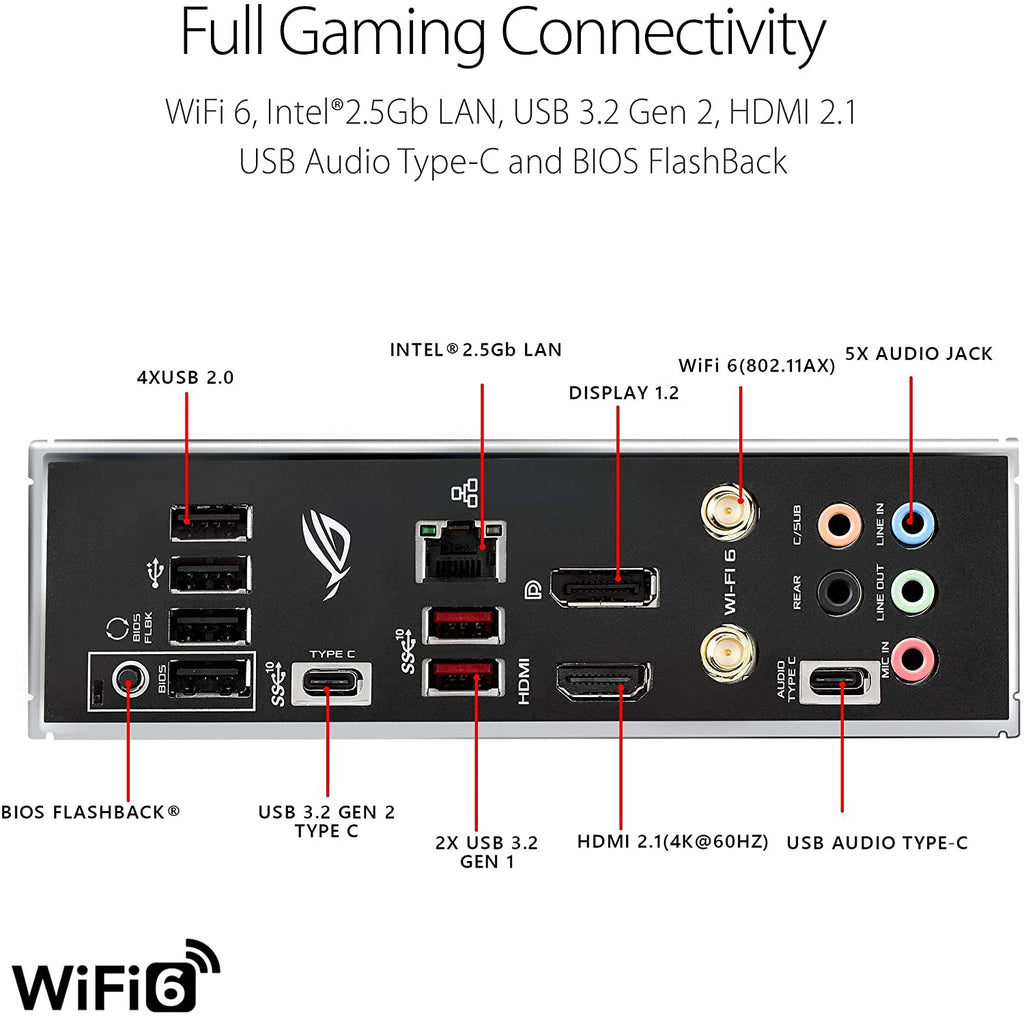

Back I/O Ports
1 x Intel I225-V 2.5Gb Ethernet
1 x DisplayPort
1 x HDMI
3 x USB 3.2 Gen 2 (2 x Type-A+1 x USB Type-C)
5 x USB 2.0 (1 for audio USB Type-C)
5 x Audio jack(s)
1 x BIOS FlashBackTM Button(s)
ASUS Wi-Fi module (Wi-Fi 802.11 a/b/g/n/ac and Bluetooth v5.0)
Internal I/O Ports
1 x CPU Fan connector(s)
1 x CPU OPT Fan connector(s)
3 x Chassis Fan connector(s)
1 x AIO_PUMP connector
1 x AAFP connector
2 x Aura RGB Strip Header(s)
2 x Addressable Gen 2 header(s)
1 x USB 3.2 Gen2 connector support additional 1 USB ports(20-pin, Type-C)
1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x M.2 Socket 1 with M key, type 2242/2260/2280/22110 storage devices support(SATA and PCIe 4.0 x4 mode)
1 x M.2 Socket 2 with M key, type 2242/2260/2280/22110 storage devices support (SATA and PCIE 3.0 x 4 mode)
6 x SATA 6Gb/s connector(s)
1 x Thunderbolt header(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x 4-pin ATX 12V Power connector(s)
1 x System panel(s)
1 x Thermal sensor connector(s)
1 x Clear CMOS jumper(s)
1 x Q-Code

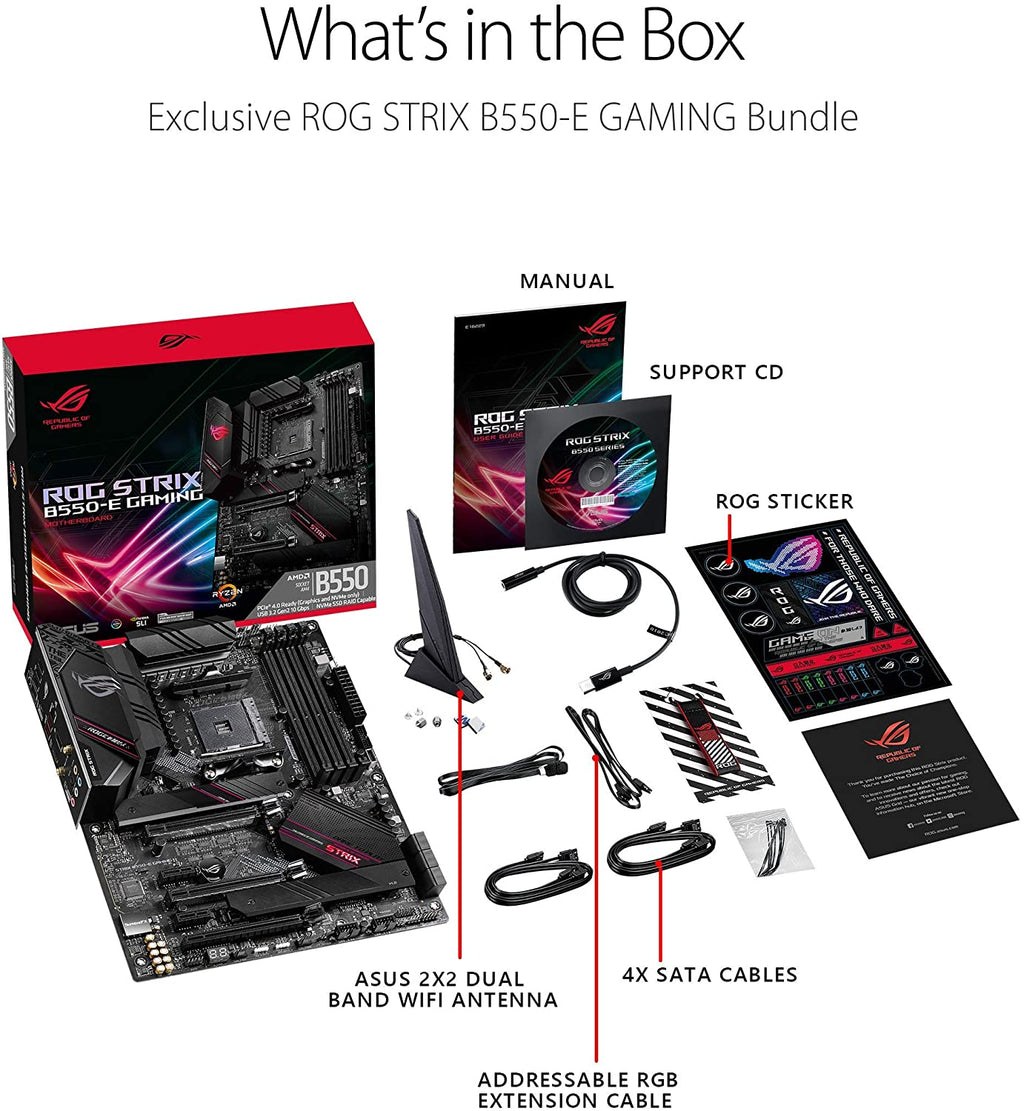

Accessories
Users manual
4 x SATA 6Gb/s cable(s)
1 x Supporting DVD
1 x ROG Strix stickers
1 x Cable ties pack(s)
1 x Extension Cable for RGB strips (80 cm)
1 x Extension cable for Addressable LED
1 x ROG Thank you card
1 x Wi-Fi moving antenna
1 x M.2 SSD screw package(s)
1 x M.2 Rubber Package(s)
1 x ROG audio USB Type-C cable
1 ROG key chain
BIOS
256 Mb Flash ROM, UEFI AMI BIOS
Manageability
WOL by PME, PXE
Operating System
Windows 10 64-bit
Form Factor
ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Note
Share bandwidth with PCIe3.0 x1_1, PCIe3.0 x1_2
When the M.2_2 Socket 3 is populated , SATA6G_5/6 ports will be disabled.
Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1-Channel audio.
Item Dimension (L"x W"x H")
14 x 11 x 4
Weight
5.00 LB
