ASUS ROG Strix AMD Radeon RX 5600 XT OC Edition Gaming Graphics Card

$345.95
  • ASUS ROG Strix AMD Radeon RX 5600 XT OC Edition Gaming Graphics Card

RaidBox

ASUS ROG Strix AMD Radeon RX 5600 XT OC Edition Gaming Graphics Card

$345.95
Information
The ROG Strix Radeon™ RX 5600 XT cruises through 1080p games
  • OC Edition: Boost Clock ~1770 MHz (OC Mode)/ ~1750 MHz (Gaming Mode)
  • Axial-tech fan design features a smaller fan hub that facilitates longer blades and a barrier ring that increases downward air pressure.
  • 0dB technology lets you enjoy light gaming in relative silence.

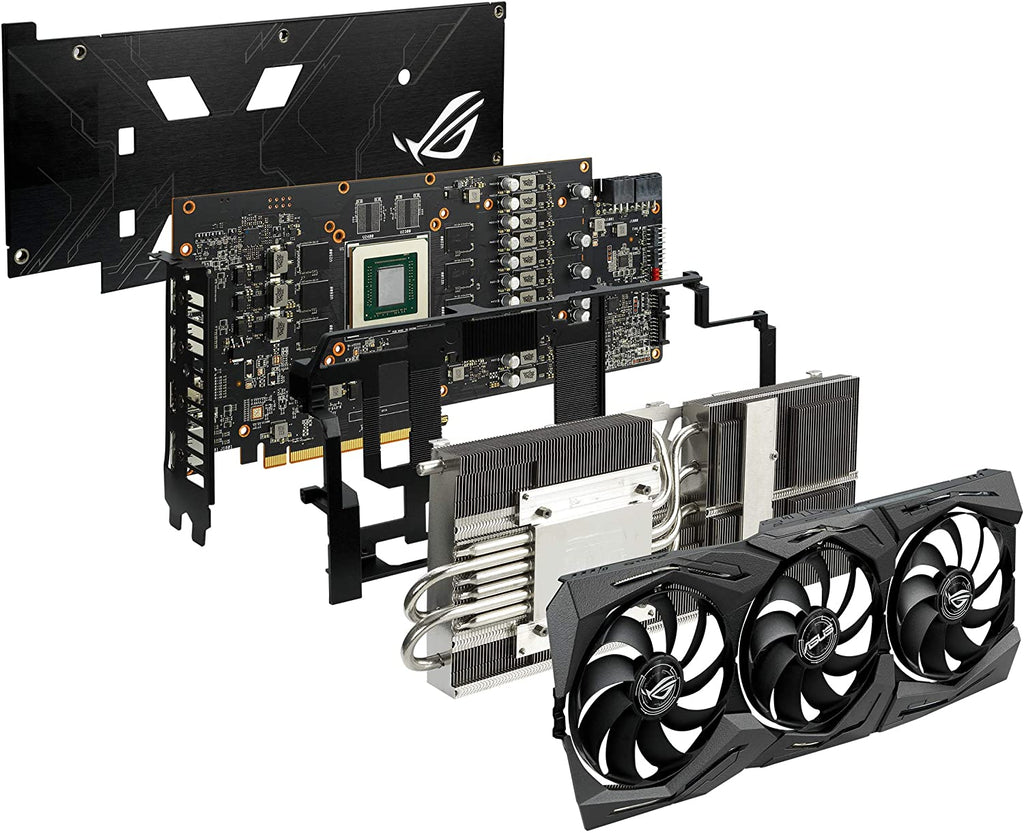

  • 2.7-slot design expands cooling surface area to make the most of the three powerful Axial-tech fans.
  • Dual BIOS switch lets you toggle between Quiet and Performance BIOS profiles sans software.
  • Auto-Extreme Technology uses automation to enhance reliability.
  • Super Alloy Power II includes premium alloy chokes, solid polymer capacitors, and an array of high-current power stages.
  • MaxContact Technology allows 2X more contact with the GPU chip for improved thermal transfer.
  • A reinforced frame prevents excessive torsion and lateral bending of the PCB.
  • ASUS FanConnect II equips two hybrid-controlled fan 2 headers for optimal system cooling.
Graphics Engine
AMD Radeon RX 5600 XT
Bus Standard
PCI Express 4.0
OpenGL
OpenGL4.6
Video Memory
GDDR6 6GB
Engine Clock - OC Mode
up to 1670 MHz (Game clock) / 1770 MHz (Boost clock)
Engine Clock - Gaming Mode
up to 1670 MHz (Game clock) / 1750 MHz (Boost clock)
Stream Processors
2304
Memory Speed
12Gbps
Memory Interface
192-bit
Resolution
Digital Max Resolution:7680x4320
Interface
HDMI Output : Yes x 1 (Native) (HDMI 2.0b)
Display Port : Yes x 3 (Native) (DisplayPort 1.4)
HDCP Support : Yes (2.3)
Maximum Display Support
4
NVlink/ Crossfire Support
Yes
Recommended PSU
450W
Power Connectors
1 x 6-pin, 1 x 8-pin
Accessories
1 x Speedsetup manual
1 x Thank you card
1 x ROG Velcro Hook and Loop
Software
ASUS GPU Tweak II and Driver
(please download all software from the support site.)
Slot
2.7 slot
