Information
• OC Edition: Boost Clock ~1865 MHz (OC Mode)/ ~1845Mhz (Gaming Mode)
• Axial-tech fan design features a smaller fan hub that facilitates longer blades and a barrier ring that increases downward air pressure.

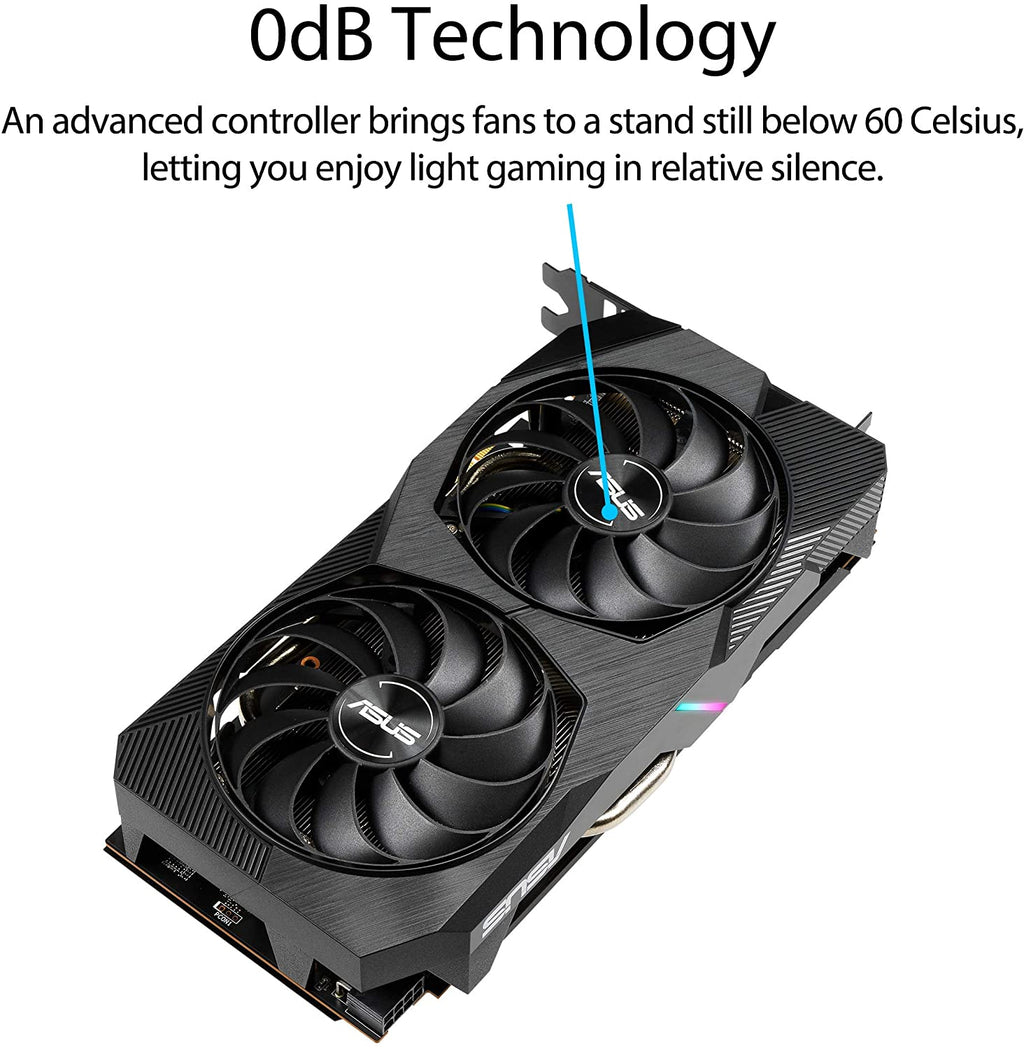

• 0dB Technology lets you enjoy light gaming in relative silence.
• IP5X dust resistance offers protection from particle ingress for better durability.
• Auto-Extreme Technology uses automation to enhance reliability.
• A protective backplate secures components during transportation and installation.
• A 144-hour validation program puts cards through a series of stringent tests to ensure compatibility with the latest games.
• Axial-tech fan design features a smaller fan hub that facilitates longer blades and a barrier ring that increases downward air pressure.
• 0dB Technology lets you enjoy light gaming in relative silence.
• IP5X dust resistance offers protection from particle ingress for better durability.
• Auto-Extreme Technology uses automation to enhance reliability.
• A protective backplate secures components during transportation and installation.
• A 144-hour validation program puts cards through a series of stringent tests to ensure compatibility with the latest games.
2x Fans. 2x Fun.

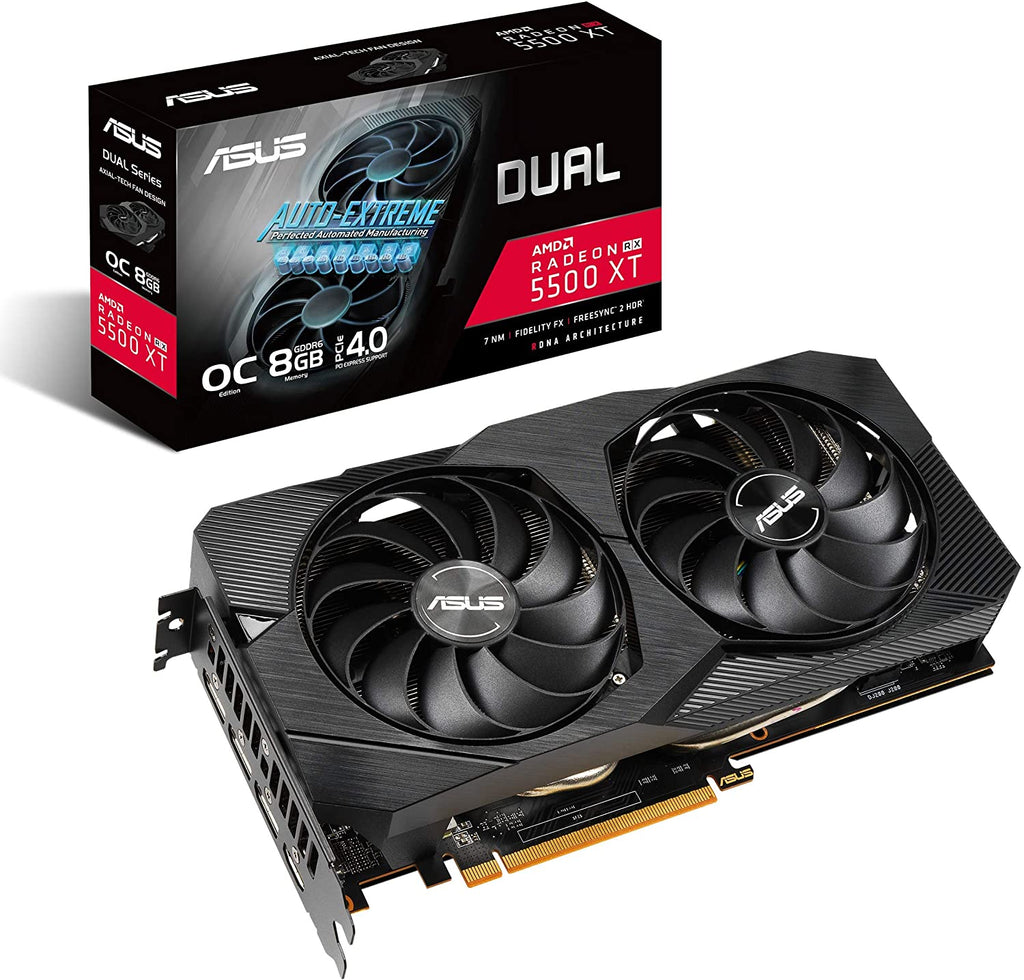

Delivering a pure PC gaming experience, the ASUS Dual Radeon™ RX 5500 XT EVO melds performance and simplicity like no other. Axial-tech fans rated with IP5X dust resistance keep things clean and cool. Auto-Extreme Technology and a protective backplate ensure all-around reliability. It's the perfect combination for a powerful plug-and-play experience.

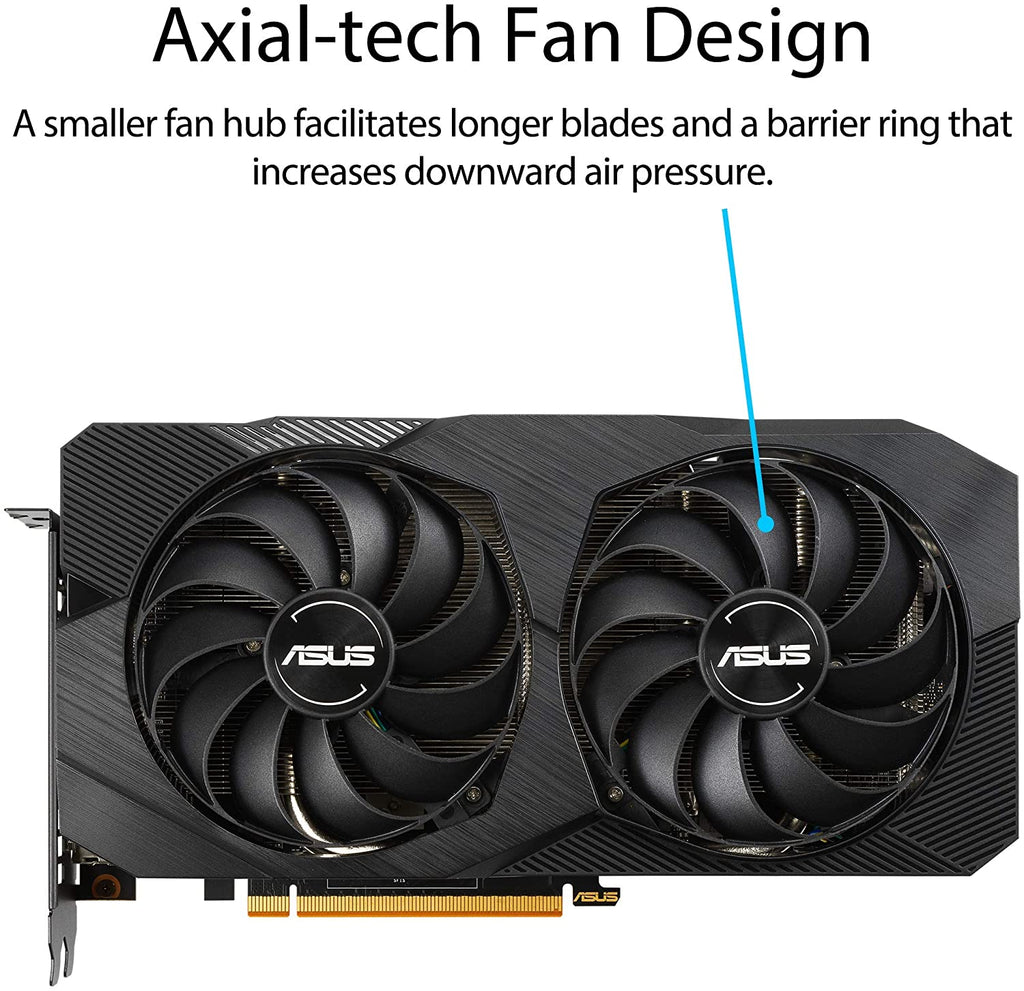

Axial-tech Fan Design
Better, faster, stronger
Newly designed for the latest generation of top-end ROG graphics cards, these fans feature a smaller hub that facilitates longer blades and a barrier ring to increase downward air pressure.

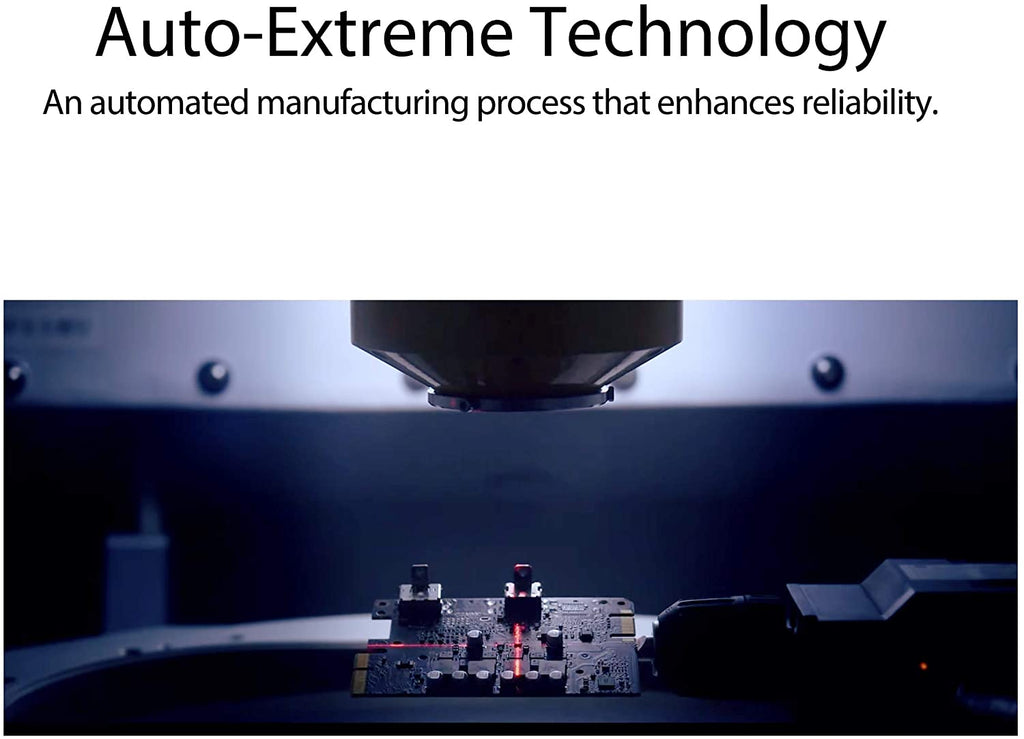

Auto−Extreme Technology
Precision automated manufacturing
Auto-Extreme Technology is an automated manufacturing process that sets new standards in the industry by allowing all soldering to be completed in a single pass. This reduces thermal strain on components and avoids the use of harsh cleaning chemicals, resulting in less environmental impact, lower manufacturing power consumption, and a more reliable product overall.
| Graphics Engine AMD Radeon RX 5500 XT |
| Bus Standard PCI Express 4.0 |
| OpenGL OpenGL4.6 |
| Video Memory GDDR6 8GB |
| Engine Clock OC Mode -1865 MHz (Boost clock) / 1737 MHz ( Game clock) |
| Engine Clock Gaming Mode -1845 MHz (Boost clock) / 1733 MHz ( Game clock) |
| Stream Processors 1408 |
| Memory Speed 14 Gbps |
| Memory Interface 128-bit |
| Resolution Digital Max Resolution:7680x4320 |
| Interface HDMI Output : Yes x 1 (Native) (HDMI 2.0b) Display Port : Yes x 3 (Native) (DisplayPort 1.4) HDCP Support : Yes (2.3) |
| Maximum Display Support 4 |
| NVlink/ Crossfire Support No |
| Recommended PSU 450W |
| Power Connectors 1 x 8-pin |
| Accessories 1 x Speedsetup manual |
| Software ASUS GPU Tweak II and Driver, please download all software from the support site. |
| Slot 2.5 slot |
