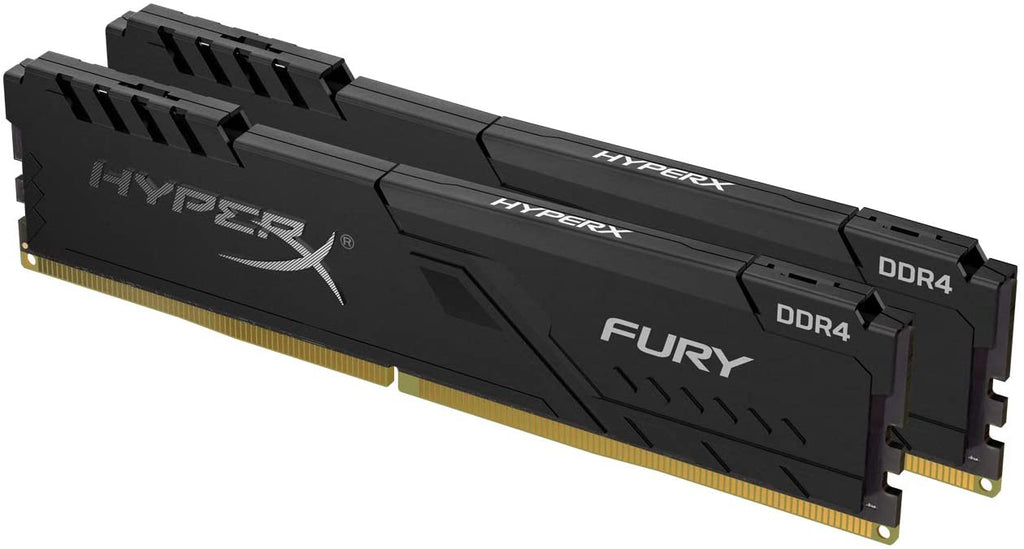

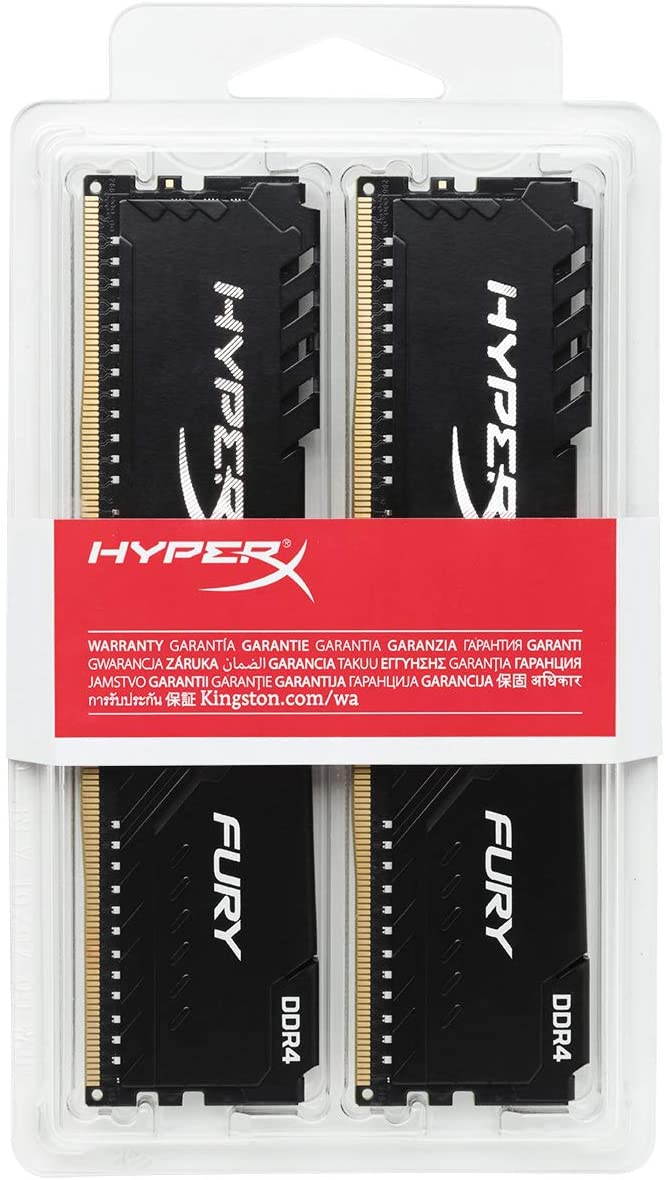

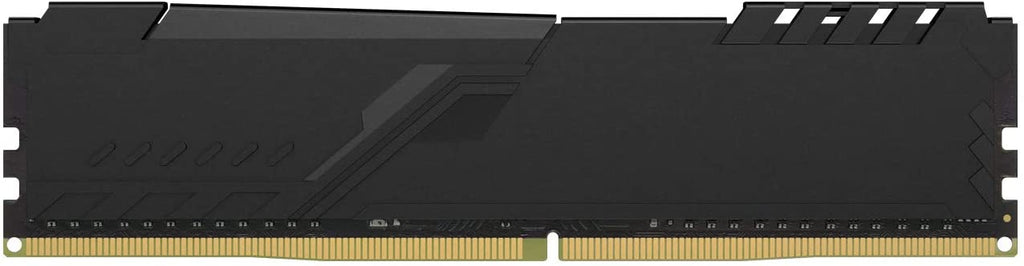

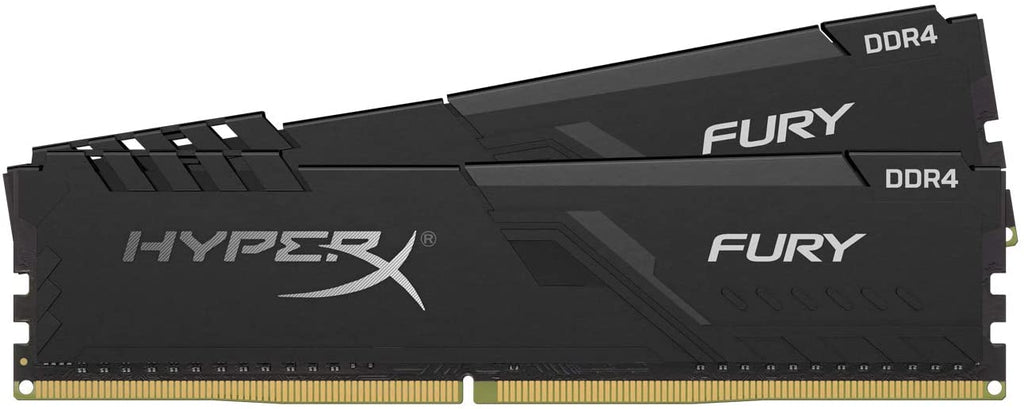

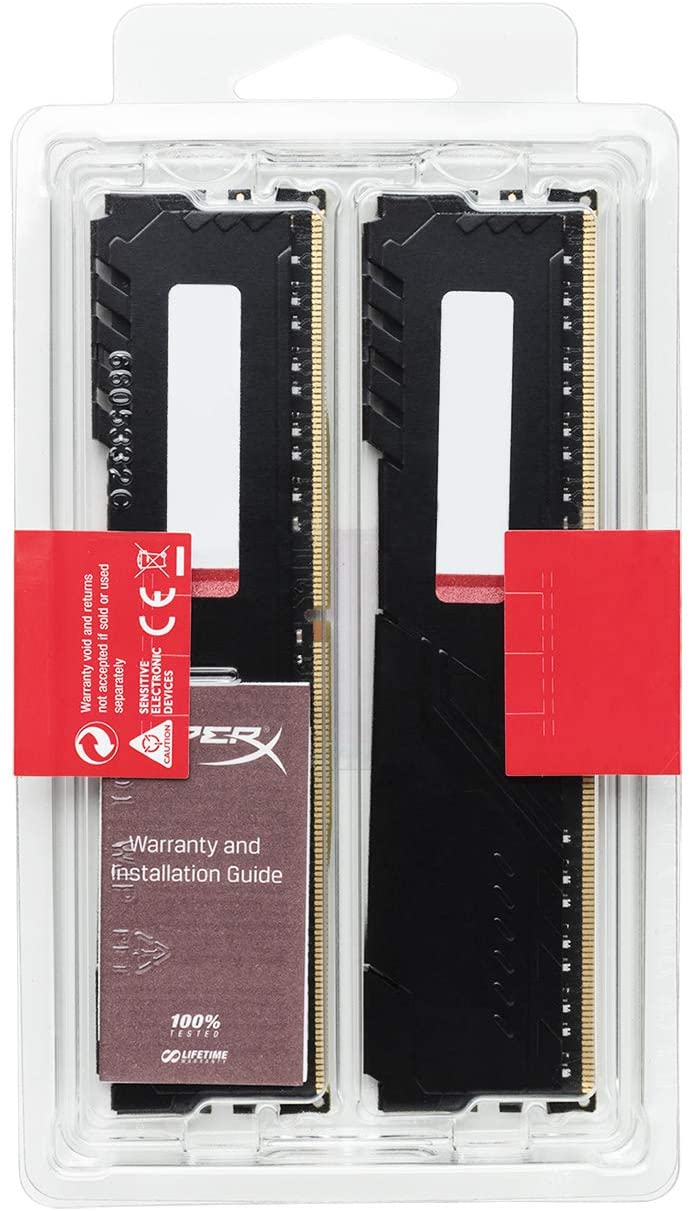

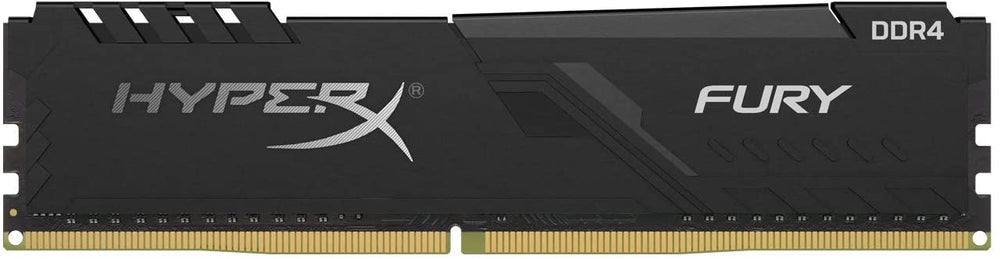

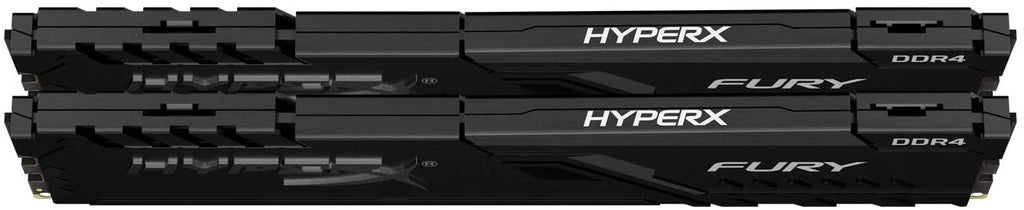

HyperX Kingston 3733MHz DDR4 CL19 DIMM Fury Black, 32GB kit (2 x 16GB)

$255.99
  • HyperX Kingston 3733MHz DDR4 CL19 DIMM Fury Black, 32GB kit (2 x 16GB)

RaidBox

HyperX Kingston 3733MHz DDR4 CL19 DIMM Fury Black, 32GB kit (2 x 16GB)

$255.99

HyperX HX437C19FB3K2/32 is a kit of two 2G x 64-bit (16GB) DDR4-3733 CL19 SDRAM (Synchronous DRAM) 2Rx8, memory module, based on sixteen 1G x 8-bit FBGA components per module. Each module kit supports Intel® Extreme Memory Profiles (Intel® XMP) 2.0. Total kit capacity is 32GB. Each module has been tested to run at DDR4-3733 at a low latency timing of 19-23-23 at 1.35V. The SPDs are programmed to JEDEC standard latency DDR4-2400 timing of 17-17-17 at 1.2V. Each 288-pin DIMM uses gold contact fingers. The JEDEC standard electrical and mechanical specifications are as follows:
FACTORY TIMING PARAMETERS
• Default (JEDEC): DDR4-2400 CL17-17-17 @1.2V
• XMP Profile #1: DDR4-3733 CL19-23-23 @1.35V
• XMP Profile #2: DDR4-3600 CL17-21-21 @1.35V
FEATURES
• Power Supply: VDD = 1.2V Typical
• VDDQ = 1.2V Typical
• VPP = 2.5V Typical
• VDDSPD = 2.2V to 3.6V
• On-Die termination (ODT)
• 16 internal banks; 4 groups of 4 banks each
• Bi-Directional Differential Data Strobe
• 8 bit pre-fetch
• Burst Length (BL) switch on-the-fly BL8 or BC4(Burst Chop)
• Height 1.3425” (34.1mm), w/heatsink

DETAIL SPECIFICATIONS
CL(IDD)
17 cycles
Row Cycle Time (tRCmin)
45.75ns(min.)
Refresh to Active/Refresh Command Time (tRFCmin)
350ns(min.)
Row Active Time (tRASmin)
32ns(min.)
UL Rating
94 V - 0
Operating Temperature
0oC to +85oC
Storage Temperature
-55oC to +100oC
Item Dimension (L"x W"x H")
7 x 4 x 1
Weight
1.00 LB
