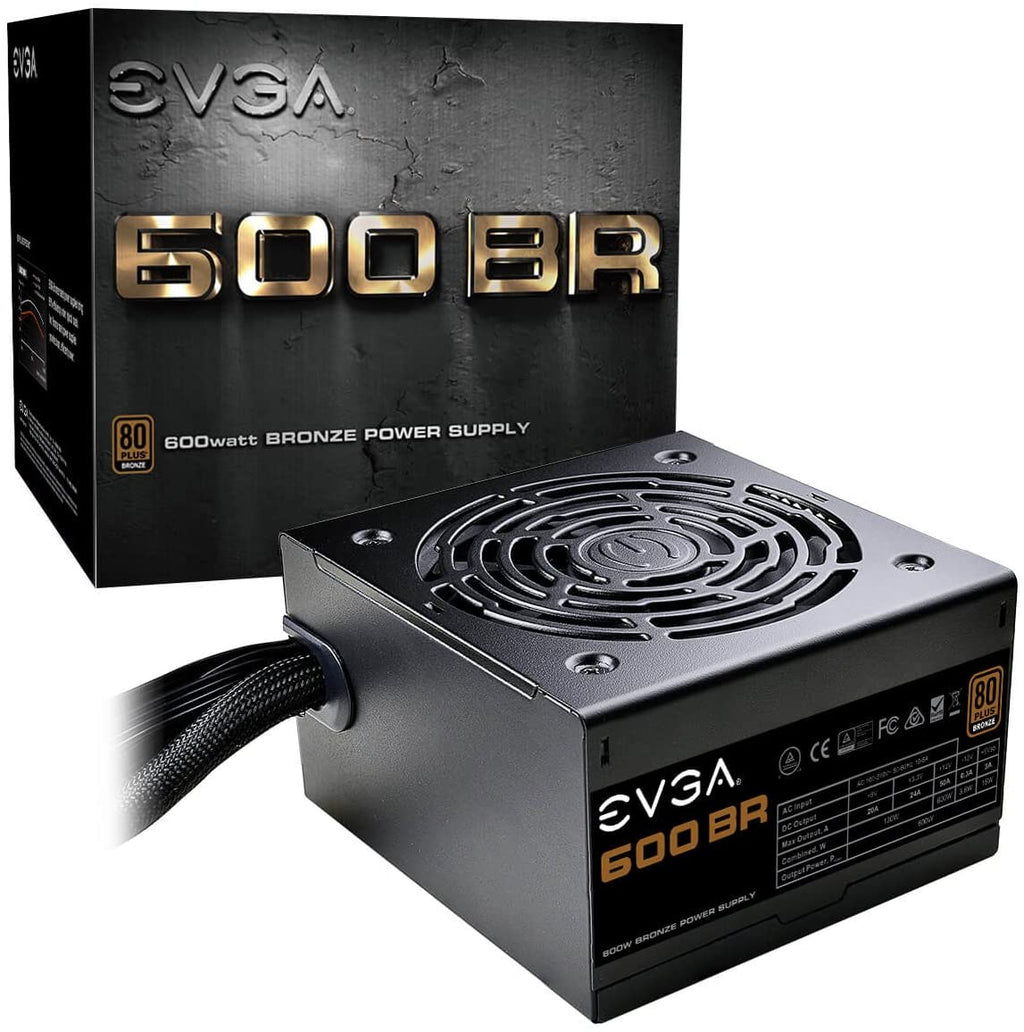

BR Series are 80 PLUS Bronze certified, with 85% efficiency or higher under typical loads. Features a non-modular design with all black full sleeved cables for that high end aesthetic, 120mm sleeve bearing quiet fan, increased 3.3V/5V voltage stability.

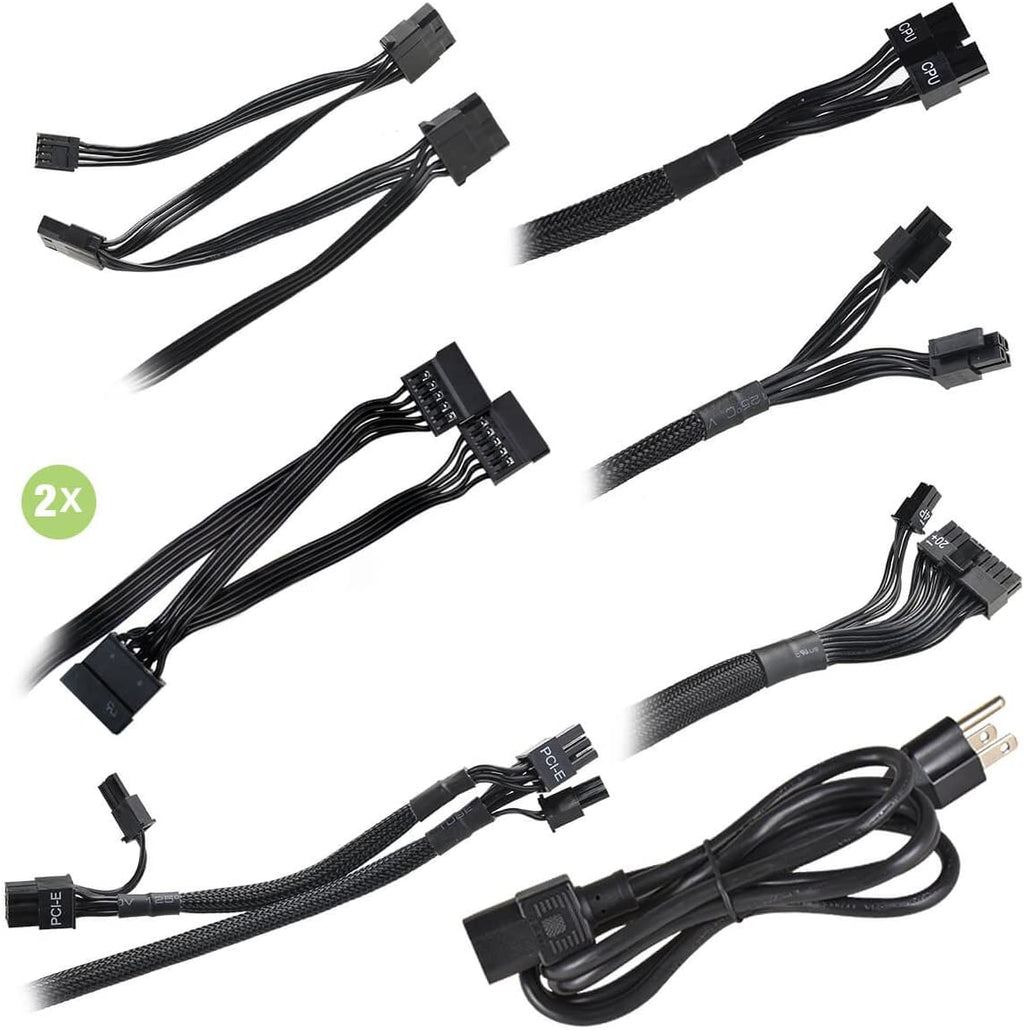

ATX CABLE
1x 550mm
EPS CABLE
1x 600mm
PCIE CABLE
1x 550mm, 670mm
SATA CABLE
2x 450mm, 570mm, 690mm

FOUR-PIN PERIPHERAL CABLE
1x 450mm, 570mm, 690mm + 810mm (Floppy)

AC POWER
1x 1200mm (m)

MODULAR CABLE TYPE
No

CONNECTOR QUANTITY
24 PIN ATX
1x
EPS (CPU)
1x 8pin (4+4)
PCIE
2x 8pin (6+2)
SATA
6x
FOUR-PIN PERIPHERAL
3x
FLOPPY
1x

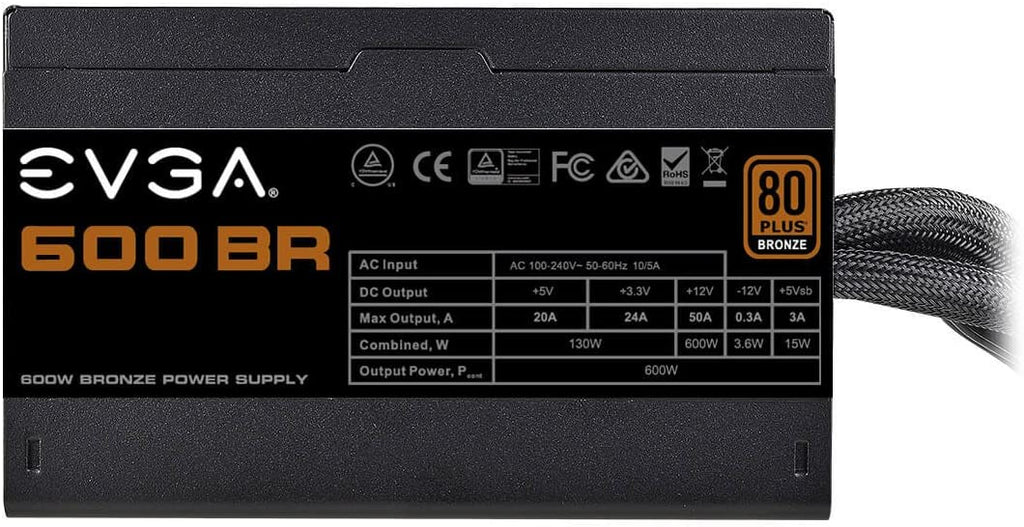

POWER SPECS
AC Input
100 - 240 VAC, 10/5A, 50 - 60 Hz

Rail: +3.3V/Max Output: 24A/130W
Rail: +5V/Max Output: 20A/130W
Rail: +12V/Max Output: 50A/ 600W/ 600W
Rail: +5Vsb/Max Output: 3A/ 15W
Rail: -12V/Max Output: 0.3A/ 3.6W

Total
600W at +30C

OPERATING TEMPERATURE
0^o to 30^o C

JAPANESE CAPACITORS
NO

ECO MODE
NO

MTBF
100,000 Hours

APPROVALS
TUV, CB, CE, FCC, RCM, cTUVus, WEEE, RoHS
Compliance with ErP Lot 6 2013 Requirement

FAN SIZE / BEARING
120mm Fluid Dynamic Bearing

Item Dimension (L inch x W inchxH inch)
11 x 4 x 8

Weight
4.00lb

Warranty Information
3 Years
